Eiki EIP WX5000/L


EIKI EIP-WX5000L

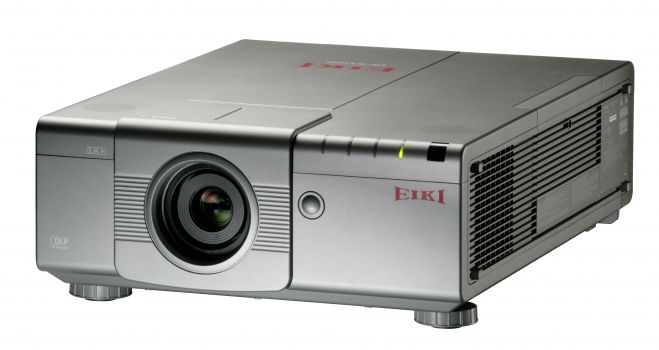

Image Eiki EIP WX5000/L
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview As a projector, the Eiki EIP WX5000 combines DLP technology with a resolution of WXGA 1280 x 800, and is additionally specified with 5200 ANSI lumens and a contrast of 1800:1. The manufacturer lists the lamp life at 2000 hours.
Regarding setup flexibility, the model features an optical lens shift function alongside digital keystone correction, allowing for precise alignment without distortion. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projection Calculator.
A look at the light output reveals: The 5200 ANSI lumens are sufficient to illuminate an image width of up to 733 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 489 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
Since entering the market in 2008, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type       3 x 0,65" DDR DLP Chip
      WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5200
Screen
2080 Lux (200 cm Screen width)
Contrast 1800:1 full on/off 1800:1 full on/off
Black Level 2,8889 min. Lumen 1,157 min. Lumen
Lens shift Vert.: +/-66% Hori.: +/-35%
 Lens shift
66%  83cm
66%  83cm
35%  70cm
35%  70cm
+ Projector
Resolution WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source 2 x 280W UHP Lamp
Article Nr.: AH-55001
Order Lamp
93,21 - 130,10 €
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
344 - 458 cm
Lux: 2080 Lux
Contrast: 1800:1
Candela pro m²: 661 cd/m²
Foot-Lamberts: 193 fL
83 cm


Screen width:cm
          Room:
Focus Powered
Zoom Powered 1,25
Objective f=25,5-32,0 mm / L optional
Throw Ratio 1,72-2,29:1 show
Audio 2 x 3W Stereo
Connections DVI-D in
5 X BNC RGBHV in
D-sub 15 pin in
S-Video in
Cinch Stereo in
Mini Jack Audio in
RJ45 in
RS232C Din 9 pin in
Ceiling Mounting Yes, is possible.
Power 710 / 582W in Eco Mode
Size WxHxD 500 x 190 x 637 mm (19,7"x7,5"x25,1") 60,52 L/dm³
Operating Noise 37 / 34 dB in Eco Mode
Key: 289 cm
Shift: 83 cm
Key: 199 cm
Shift: 70 cm
Key: 199 cm
Shift: 70 cm
Key: 289 cm
Shift: 83 cm

Weight 26,50 kg / 58,42 lbs.
Keystone Vert.: +/-40°
Hori.: +/-30°
Illumination 92%
Frequenz H-sync: 15-126 kHz
V-sync: 43-200 Hz
Range max.: 230 MHz
Foot-Lamberts 193 fL / max. 733 cm screen width
Candela m² 661 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion
Freeze
Eco Mode
Kensington Slot
sRGB
Digital image shift
Password protection
Remote control with mouse control
Remote control with backlight
PJLink™
Control via web browser
Lan network compatible.
Screen Mirroring -
In Comparison
The Eiki EIP WX5000/L compared to others not current "Stationary" projectors.
Ansi-Lumen:
51 Weight:
89
Contrast:
1 dB:
94
Black level:
91 Power cons.:
91
Picture Total Points:48 Projector Total Points:91
Popularity Top 100
9 popularity points 13 popularity points 12 popularity points 1 popularity points 10 popularity points 5 popularity points
Points:
5
Ranking: 549 (From: 2536)
Optional accessories
bulb only Osram NLMP1870293,21 €
lamp ruby Ruby-LMP18702130,10 €
lamp OriginalAH-55001EOL €
Universal Remote Fernb-uni-V322,31 €
ceiling bracket blackHalterung4583,60 €
ceiling bracket whiteHalterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
AH-55801 4.44-6.99:1 888-1398 m +/-66% +/-35% Powered
AH-55701 2.92-4.49:1 584-898 m +/-66% +/-35%
AH-55601 2.28-3.04:1 456-608 m +/-66% +/-35% Powered
AH-55501 1.82-2.29:1 364-458 m +/-66% +/-35% Powered
AH-55401 1.52-1.84:1 304-368 m +/-66% +/-35% Powered
AH-55201 0.83:1 166 m +/-22% +/-11% No Zoom
AH-55301 1.22:1 244 m +/-22% +/-11% No Zoom
Status 2008 Discontinued (EOL) // Last update of the data: 2026-06-09
