Eiki LC SB20
Eiki LC-SB20D

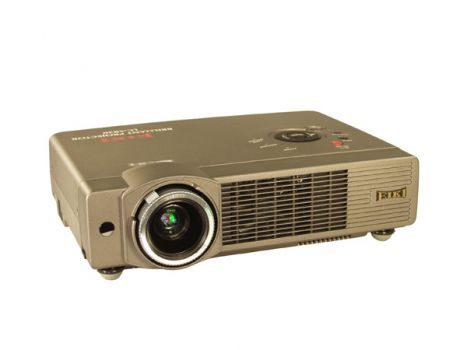

Image Eiki LC SB20
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Based on LCD technology, the Eiki LC SB20 projects images in a Standard-Portabel environment, with technical specs listing 2000 ANSI lumens, a contrast of 450:1 and a SVGA 800 x 600 resolution. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups.
A look at the light output reveals: The 2000 ANSI lumens are sufficient to illuminate an image width of up to 389 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 259 cm.
The projector was released in 2003 and is officially no longer distributed by Eiki.
Display Type       3 x 0,79" LCD TFT Panel
      SVGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 2000 / 1600 im Eco Mode
Screen
 667 Lux (200 cm Screen width)
Contrast 450:1 full on / off 450:1 full on / off
Black Level 4,4444 min. Lumen 1,492 min. Lumen
Offset -
Resolution SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed
Video Modes NTSC/PAL/SECAM/NTSC 4.43/PAL-M&N HDTV 1080i, 720p EDTV 576p, 480p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 200W UHP Lamp
Article Nr.: 610 307 7925
Order Lamp
53,34 - 120,02 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Perfect
250 - 374 cm
Lux: 667 Lux
Contrast: 450:1
Candela pro m²: 212 cd/m²
Foot-Lamberts: 62 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,5
Objective F=1,7-2,5 f=20-30 mm
Throw Ratio 1,25-1,87:1 show
Audio 1W Mono
Connections DVI-I in
D-sub 15pin in
Cinch Video in
Cinch Stereo in
S-Video in
USB in
Mini Jack in und out
Service Port
Ceiling Mounting Yes, is possible.
Power 270 / 196W in Eco Mode
Size WxHxD 298 x 71 x 218 mm (11,7"x2,8"x8,6") 4,61 L/dm³
Operating Noise 36dB
Key: 210 cm
Key: 91 cm

Without offset

Key: 91 cm
Key: 210 cm
Weight 2,80 kg / 6,17 lbs.
Keystone Vert.: +/-40°
Hori.: +/-20°
Illumination 85%
Frequenz H-sync: 15-80 kHz
V-sync: 50-100 Hz
Range max.: 100 MHz
Foot-Lamberts 62 fL / max. 389 cm screen width
Candela m² 212 cd/m²
Features Freeze
User logo
Eco Mode
Kensington Slot
Gamma correction
Remote control with laser pointer und mouse control
Intelligent cooling fan
The new fan adapts optimally to the room temperature.
Digital Zoom
Screen Mirroring -
In Comparison
The Eiki LC SB20 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
23 Weight:
87
Contrast:
1 dB:
33
Black level:
83 Power cons.:
97
Picture Total Points:36 Projector Total Points:72
Popularity Top 100
2 popularity points 5 popularity points 4 popularity points 1 popularity points 1 popularity points 4 popularity points
Points:
4
Ranking: 3045 (From: 7737)
Optional accessories

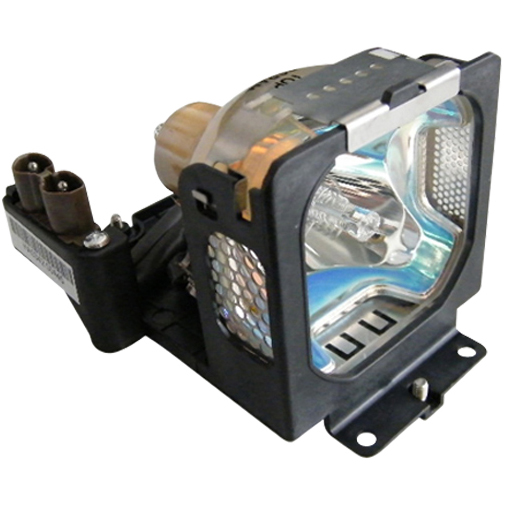

bulb only Philips NLMP337784,79 €
lamp ruby Ruby-LMP3377120,02 €
lamp Original610-307-7925 / LMP65 / ET-SLMP65EOL €
Compatible lamp LMP-K130953,34 €
Universal Remote Fernb-uni-V322,31 €
air filter B back Original910 307 6325 / Base B-MA7AEOL €
air filter F front Original910 307 63187,22 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Status 2003 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Eiki Contact
Product Sheet english
Product Sheet english color
Product Sheet english HC
Product Sheet RS232C
Zeichnung japanisch
User Manual english (1.34 MB)
