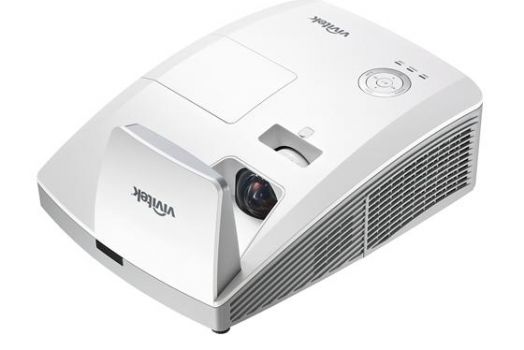

Based on DLP technology, the Vivitek D756USTi projects images in a Short Distance environment, with technical specs listing 3300 ANSI lumens, a contrast of 10000:1 and a WXGA 1280 x 800 resolution. The runtime of the lamp in this model is estimated at 5000 hours before a replacement is necessary, which amounts to roughly 6.8 years at 2 hours of daily use. With its built-in wide-angle optics, the device belongs to the category of short-throw projectors. An image width of 2 meters is realized from a short distance of 70 cm. Looking at practical performance, up to 584 cm can be illuminated with 3300 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 389 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Equipped with a microphone jack and built-in speakers (10W), audio signals during presentations can be played back directly without an external audio system. Since entering the market in 2015, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,65" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Calculated brightness quality The screen width may also be larger. Perfect
70 cm (no Zoom)
Lux:
1320 Lux
Contrast:
10000:1
Candela pro m²:
421 cd/m²
Foot-Lamberts:
123 fL
75 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,5 f=5,1mm
Throw Ratio
0,35:1
Audio
2 x 10W
Connections
HDMI 1.4b in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in
Mikrofon in
Ceiling Mounting
Yes, is possible.
Power
290 / 250W in Eco Mode
Size WxHxD
287,7 x 122,6 x 374,5 mm (11,3"x4,8"x14,7") 13,1 L/dm³
Full HD 1080P compatible
