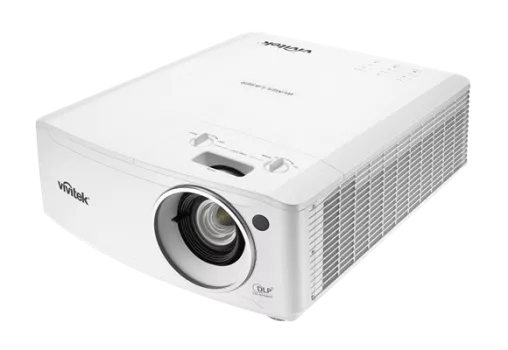

Designed for the Stationary sector, the DU4671Z model from Vivitek features 5500 ANSI lumens, a native WUXGA 1920 x 1200 resolution and a contrast ratio of 20000:1. This is a laser projector with a light source designed to last for 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction. Precise setup distances can be determined in the Distance Calculator. A look at the light output reveals: The 5500 ANSI lumens are sufficient to illuminate an image width of up to 753 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 502 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. The built-in HDMI-MHL (Mobile High-Definition Link) port enables screen mirroring from a smartphone while simultaneously charging it. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. Equipped with a microphone jack and built-in speakers (5W), audio signals during presentations can be played back directly without an external audio system. Since entering the market in 2017, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,67" DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5500
Screen
2444 Lux (200 cm Screen width)
Contrast
20000:1 full on/off
20000:1 full on/off
Black Level
0,2750 min. Lumen
0,122 min. Lumen
Lens shift
Vert.: +77% --65% Hori.: +/-2,5%
Lens shift
12%
14cm
2.5%
5cm
2.5%
5cm
+
Projector 17 cm over screen top edge.
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel WUXGA 1920 x 1200 compressed
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
HDMI 1.4 mit MHL in
2 x HDMI
1 x D-sub 15pin in 1 x out
Cinch Video in
Cinch Stereo out
S-Video in
Mini Jack Audio in und out
USB Typ A, B in
RS232C Din 9 pin in
Mikrofon in
RJ45 mit HDBaseT in
3D Sync-Out
12V Trigger out
Ceiling Mounting
Yes, is possible.
Power
430 / 350W in Eco Mode
Size WxHxD
360 x 151 x 451,5 mm (14,2"x5,9"x17,8") 24,52 L/dm³
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Eco Mode BrilliantColor™ Lan network compatible. Crestron®-Software compatible. DICOM simulation
Real Full HD 3D
