Brief Introduction
Beta 2.5 |

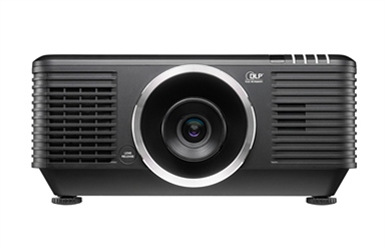

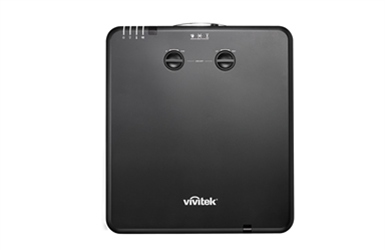

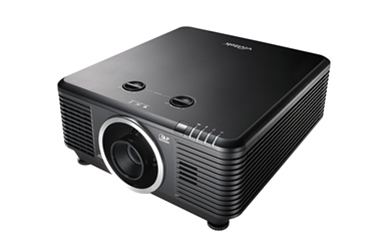

The Vivitek LU1165P stationary 3D laser DLP projector has 8000 Ansi lumens, a contrast of 150000:1 and a WUXGA 1920 x 1200 resolution. The manufacturer specifies a laser service life of 20000 hours, which is over 13.7 years with a daily viewing time of 4 hours. The integrated lens shift gives freedom when positioning the projector. An image width of up to 909 cm is possible as the projector has 8000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 606 cm. The projector can also play 1080P and 3D without any problems. On the market since 2022, the model is no longer offered by the manufacturer Vivitek.
|
| Display Type |
1 x 0,67" DMD DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
8000 |
Screen |
3556 Lux (200 cm Screen width) |
| Contrast |
150000:1 full on/off |
150000:1 full on/off
|
| Black Level |
0,0533 min. Lumen |
0,024 min. Lumen |
| Lens shift |
Vert.: +55% -15% Hori.: +/-5%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser Phosphor
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
308 - 386 cm
|
 |
|
Lux: |
3556 Lux |
|
Room light max.: |
711 Lux |
|
Candela pro m²: |
1131 cd/m² |
|
Foot-Lamberts: |
330 fL |
|
 |
| 62 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual x1,25 |
| Objective |
F=2,0-2,09 f=22,82-28,5 mm |
| Throw Ratio |
1,54-1,93:1 show |
| Audio |
2 x 10W |
| Connections |
2x HDMI in
3D-Sync Out
D-sub 15pin in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
Kabelgebundene Fernbedienung in und out
USB-A in
USB-B in
RS232C Din 9 pin in
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
830W / 640W in Eco Mode |
| Size WxHxD |
517 x 202 x 470 mm (20,4"x8"x18,5") 49,08 L/dm³
|
| Operating Noise |
33 / 30 dB in Eco Mode |
Key: 144 cm
Shift: 62 cm |
Key: 178 cm
Shift: 10 cm |
| Key: 178 cm
Shift: 10 cm |
| |
|
|
| Weight |
25,00 kg / 55,12 lbs. |
| Keystone |
Vert.: +/-25°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15,31-91,4 kHz
V-sync: 47-120 Hz
|
| Foot-Lamberts |
330 fL
/ max. 909 cm screen width |
| Candela m² |
1131 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
24/7 continuous operation capable
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Vivitek LU1165P compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
80 |
Weight: |
|
90 |
| Contrast: |
|
3 |
dB: |
|
95 |
| Black level: |
|
100 |
Power cons.: |
|
89 |
| Picture Total Points: | 61 |
Projector Total Points: | 91 |
|
| Popularity Top 100 |
|
| Points: |
|
51 |
| Ranking: |
125 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2022 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC

|
Vivitek Website
