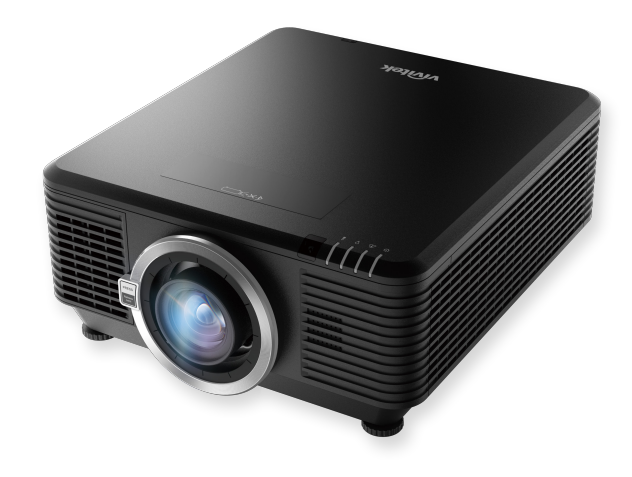

The projector DK7288Z by Vivitek utilizes DLP technology and, according to the spec sheet, achieves 10000 ANSI lumens, a contrast of 1300:1 at a resolution of UHD (4K2K) 3840 x 2160. Using this laser phosphor technology, the light source runtime is rated at 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projector Calculator. A look at the light output reveals: The 10000 ANSI lumens are sufficient to illuminate an image width of up to 871 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 581 cm. For media input, video signals up to 1080P and 4K as well as 3D are supported, meaning standard Blu-ray formats are processed effortlessly. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
Display Type
1 x 0,67" DLP Chip UHD 4/3 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
R+B Dual Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3333 Lux
Contrast:
1300:1
Candela pro m²:
1062 cd/m²
Foot-Lamberts:
310 fL
75 cm
•
Focus
Manual
Zoom
Manual
Objective
Throw Ratio
optional
Audio
2 x 10W
Connections
2x HDMI 2.0 (1x Out)
Audio-In (Mini-Jack)
RJ45 (LAN )
RS-232-in
3D Sync-in (VESA)
3D Sync-in out (VESA)
USB Type A Power (5V /1.5A)
USB (Service)
Audio-Out (3.5mm Jack)
12v Trigger (3.5mm Jack)
Remote Jack (wire remote) in
Remote Jack (wire remote) out
SDM-S (option HD-BaseT & WiFi display
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion User logo Eco Mode Kensington Slot 24/7 continuous operation capable Lan network compatible.
Real Full HD 3D
