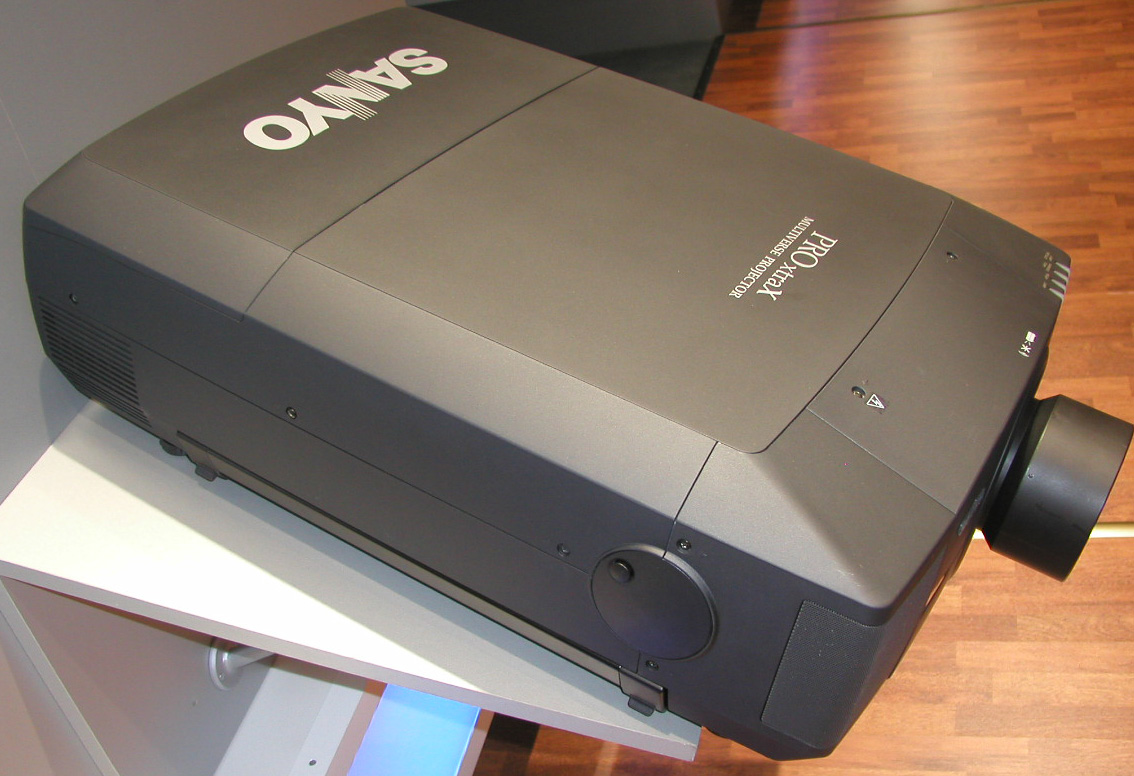

As a projector for the Event sector, the Sanyo PLC XF46 is equipped with 12000 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 1200:1. The manufacturer lists the lamp life at 1000 hours. To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction, allowing the projected image to be positioned with immense flexibility. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Projection Calculator is available to calculate the exact dimensions. A look at the light output reveals: The 12000 ANSI lumens are sufficient to illuminate an image width of up to 954 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 636 cm. This model dates back to 2006 and is no longer part of Sanyo's current product range. However, it remains frequently searched within our database.
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
4000 Lux
Contrast:
1200:1
Candela pro m²:
1275 cd/m²
Foot-Lamberts:
372 fL
75 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
3W Stereo
Connections
1 x DVI
1 x Audio RCA x 2
Computer 2 / Video
5 x BNC / YUV
1 x Audio RCA x 2
1 x BNC Video/YC
1 x S-Video
1 x Audioaus. Eingang RCA x 2
1 x USB
Control Port x 2
RS232C

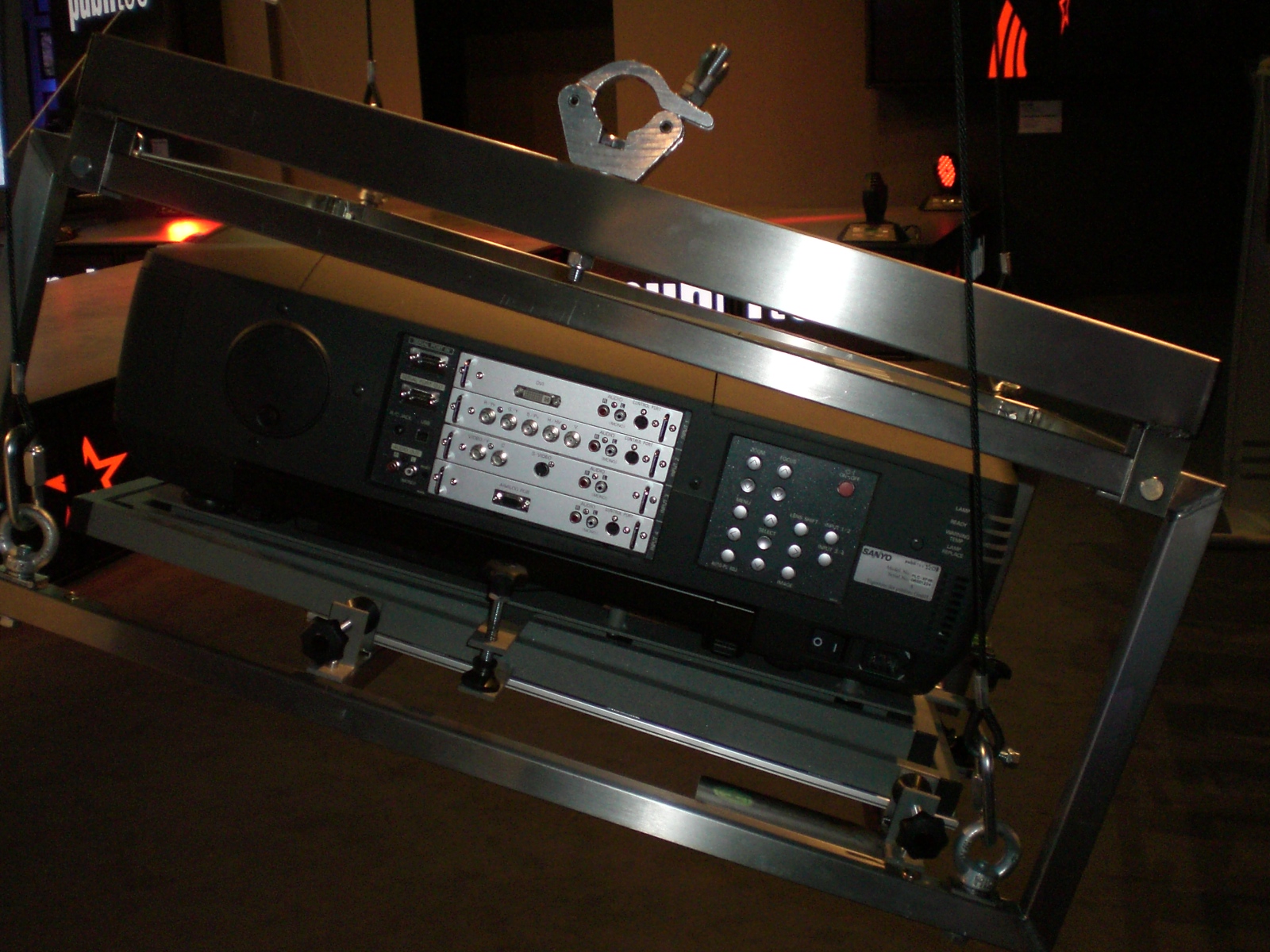

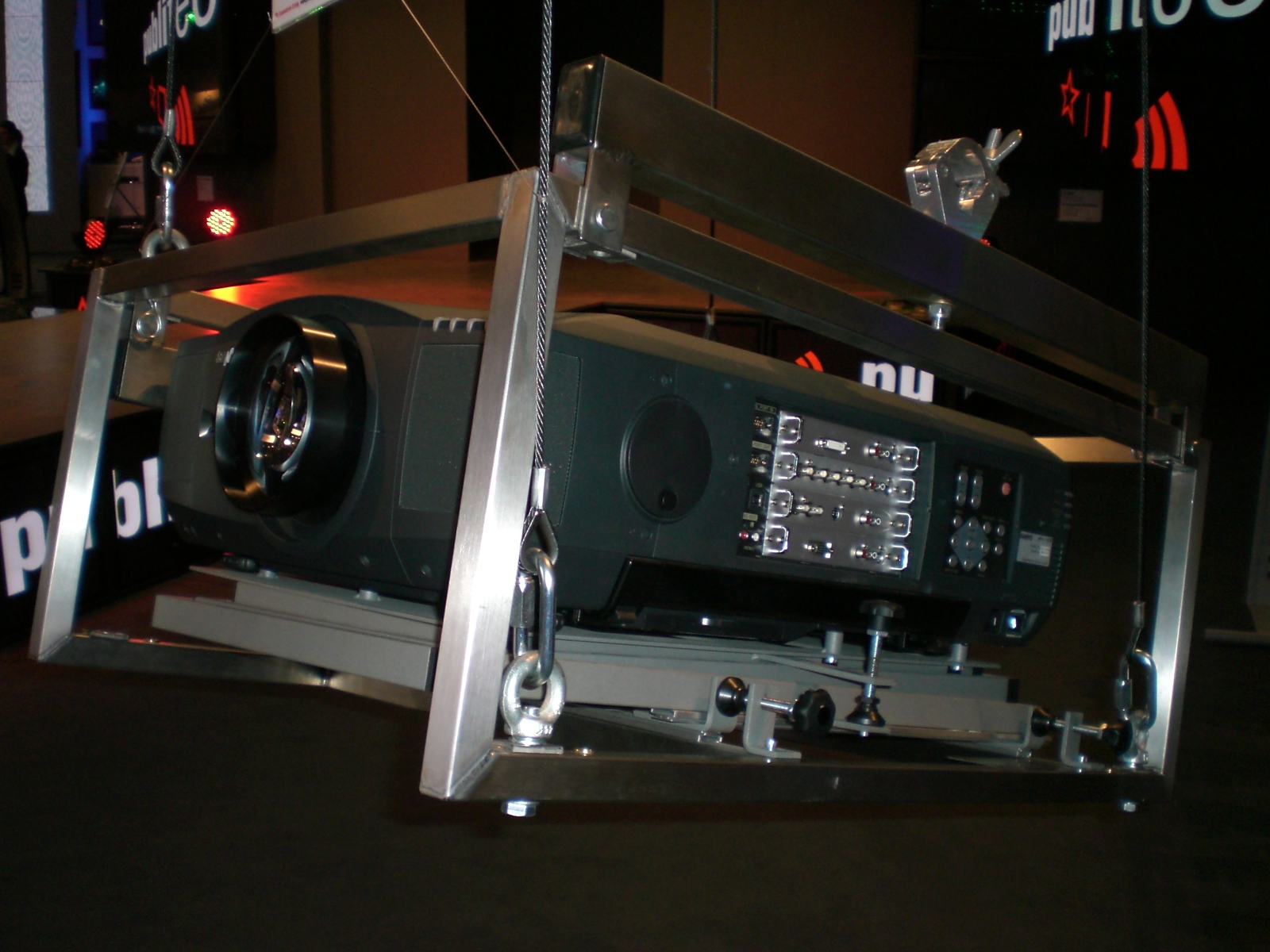

Ceiling Mounting
Yes, is possible.
Power
1500W
Size WxHxD
581 x 252 x 783 mm (22,9"x9,9"x30,8") 114,64 L/dm³
Lens shift Funktion Freeze Kensington Slot Gamma correction 24/7 continuous operation capable Remote control with laser pointer und mouse control Optional LAN network compatible. Digital Zoom 3D-AUCC Intelligent Sharpness Optimisation Faroudja DCDi optionally available Adapts to all mains voltages. 10-bit digital gamma correction
Lens shift Funktion
