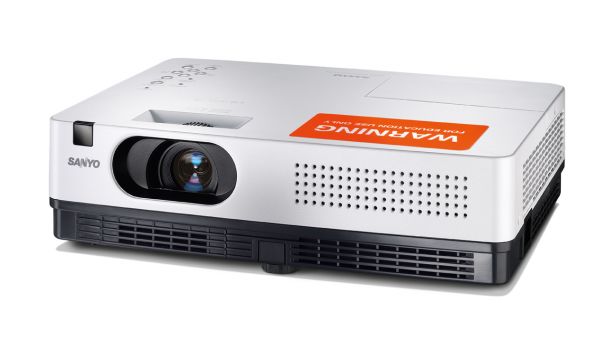

According to Sanyo, the PLC XE34 model provides 1500 ANSI lumens, a contrast ratio of 500:1 alongside a XGA 1024 x 768 resolution. The runtime of the lamp in this model is estimated at 4000 hours before a replacement is necessary. With two hours of daily operation, this corresponds to a period of 5.5 years. Looking at practical performance, up to 337 cm can be illuminated with 1500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 225 cm. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. The projector was released in 2010 and is officially no longer distributed by Sanyo.
Display Type
3 x 0,55" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
1500 / 1050 im Eco Mode
Screen
500 Lux (200 cm Screen width)
Contrast
500:1 full on/off
500:1 full on/off
Black Level
3,0000 min. Lumen
1,006 min. Lumen
Offset
40% 15 cm under screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Freeze Blackboard Modus User logo Eco Mode Automatic and manual vertical keystone correction Kensington Slot Gamma correction Password protection PJLink™ Lan network compatible.
Freeze
