The MP-WU8801W is a 3D-LCD projector by Maxell, whose specifications list 8000 ANSI lumens, a contrast of 2500000:1 and a WUXGA 1920 x 1200 resolution. The manufacturer lists the lifespan for this model at 20000 hours – calculating to 13.7 years at four hours of use per day. To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Distance Calculator. Looking at practical performance, up to 909 cm can be illuminated with 8000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 606 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. This model dates back to 2021 and is no longer part of Maxell's current product range.
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h. / 30000 h. in Eco Mode
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3556 Lux
Contrast:
2500000:1
Candela pro m²:
1131 cd/m²
Foot-Lamberts:
330 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-

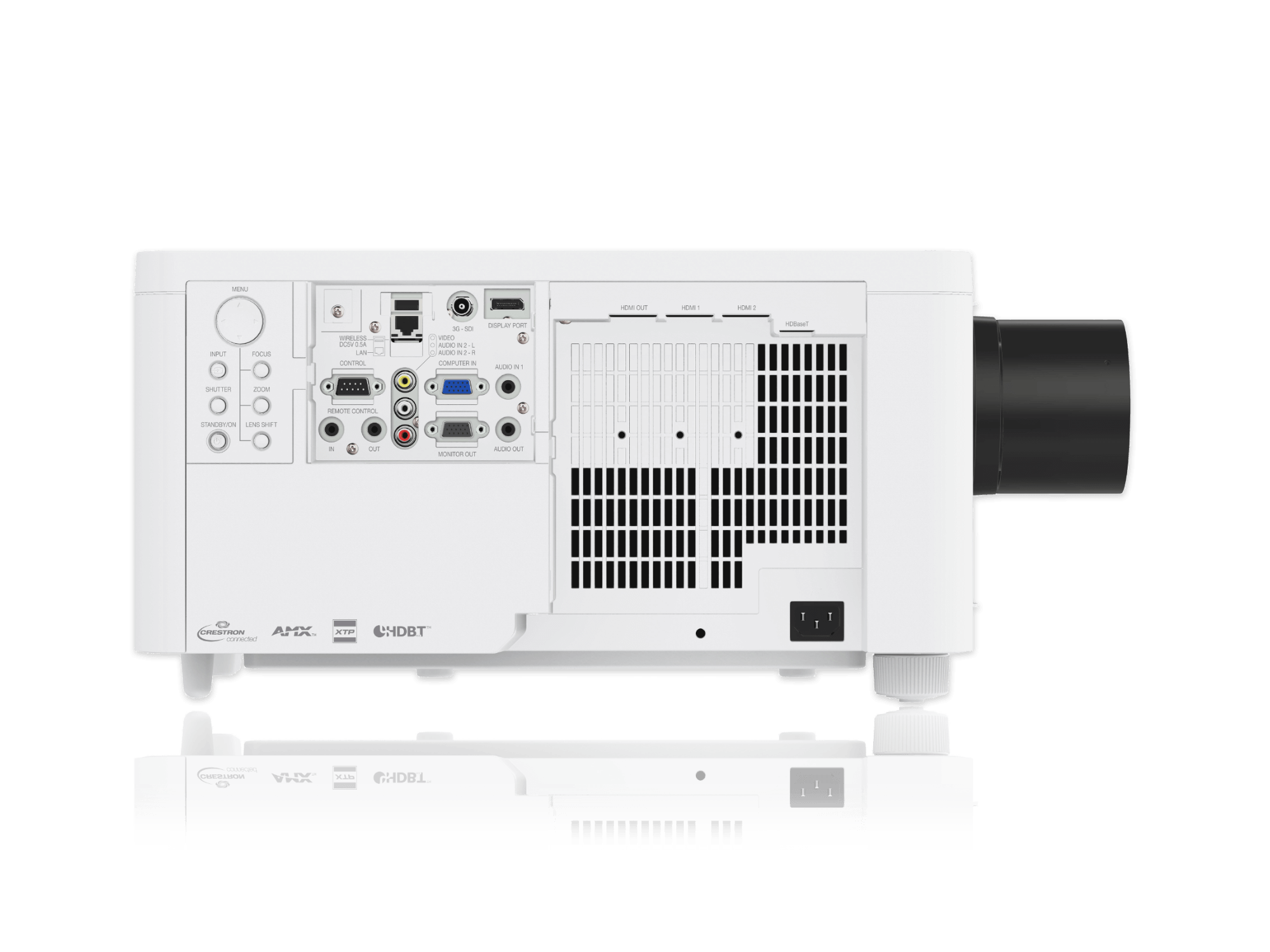

Connections
2 x HDMI in und 1x out
Display Port
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
3G-SDI
Display Port
Mini Jack Audio in und out
USB
RS232C Din 9 pin in
RJ45 in
HDBaseT
Remote In und OUT
Ceiling Mounting
Yes, is possible.
Power
580W / 560W in Eco Mode
Size WxHxD
581,7 x 215,9 x 431,8 mm (22,9"x8,5"x17") 53,84 L/dm³
Real Full HD 3D Full HD 1080P compatible Eco Mode Warping 360° installable Edge Blending Picture-in-Picture PJLink™ Optional Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible. AMX
Real Full HD 3D
Product Sheet english
