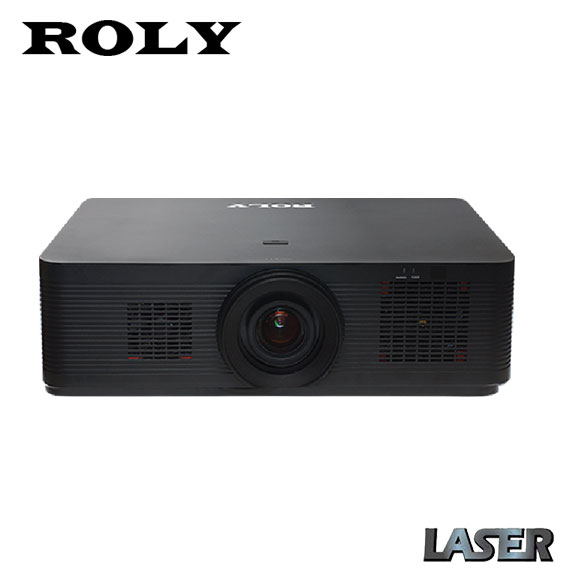

This projector is named RL-10KU, originates from Roly, and its data sheet shows 10000 ANSI lumens, a contrast of 3500000:1 and a resolution of WUXGA 1920 x 1200. The laser technology ensures a specified light source lifespan of up to 20000 hours – equivalent to a usable life of 13.7 years at 4 hours a day. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Distance Calculator. Regarding projection size, the value of 10000 ANSI lumens allows for an image width of up to 1016 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 677 cm. Regarding signal processing, the model is compatible with incoming 1080P content and 4K, and also offers the technical capability for 360° projection. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs.
Display Type
3 x 0,76" LCD Panel WUXGA 16/9 Liquid Crystal Display
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser Diode
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
284 - 528 cm
Lux:
4444 Lux
Contrast:
3500000:1
Candela pro m²:
1415 cd/m²
Foot-Lamberts:
413 fL
68 cm
•
Focus
Powered
Zoom
Powered x1,6
Objective
Throw Ratio
optional
Audio
1 x 10W
Connections
HDMI in
DVI-D in
D-sub 15pin in und out
5x BNC
Cinch Video in
Mini Jack Audio in und out
2x USB-A in
RS232C Din 9 pin in
RJ45 in
HDBaseT in
Remote Control Mini Jack in und out
Full HD 1080P compatible Lens shift Funktion Automatic and manual vertical keystone correction Kensington Slot High Dynamic Range (HDR) 360° installable 24/7 continuous operation capable PJLink™ Lan network compatible.
Full HD 1080P compatible
Product Sheet english
