Brief Introduction
Beta 2.5 |
The Maxell model MC-TW3506E is an LCD projector with WXGA 1280 x 800 resolution and a contrast of 16000:1. The lamp of the projector is specified with 4000 hours lamp life, which is over 5.5 years with two hours of use per day. The horizontal and vertical keystone correction provides leeway when setting up. Thanks to the short throw projection ratio of just 0.3:1, the projector is not distracting in the room. For a 2m wide image, the projector only needs to be 60 cm away from the screen. The projector can also play 1080P without any problems. It was launched in 2018 and is no longer offered by the manufacturer Maxell.
|
| Display Type |
3 x 0,59" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
3700 |
Screen |
1480 Lux (200 cm Screen width) |
| Contrast |
16000:1 full on/off |
16000:1 full on/off
|
| Black Level |
0,2313 min. Lumen |
0,093 min. Lumen |
| Offset |
-
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |

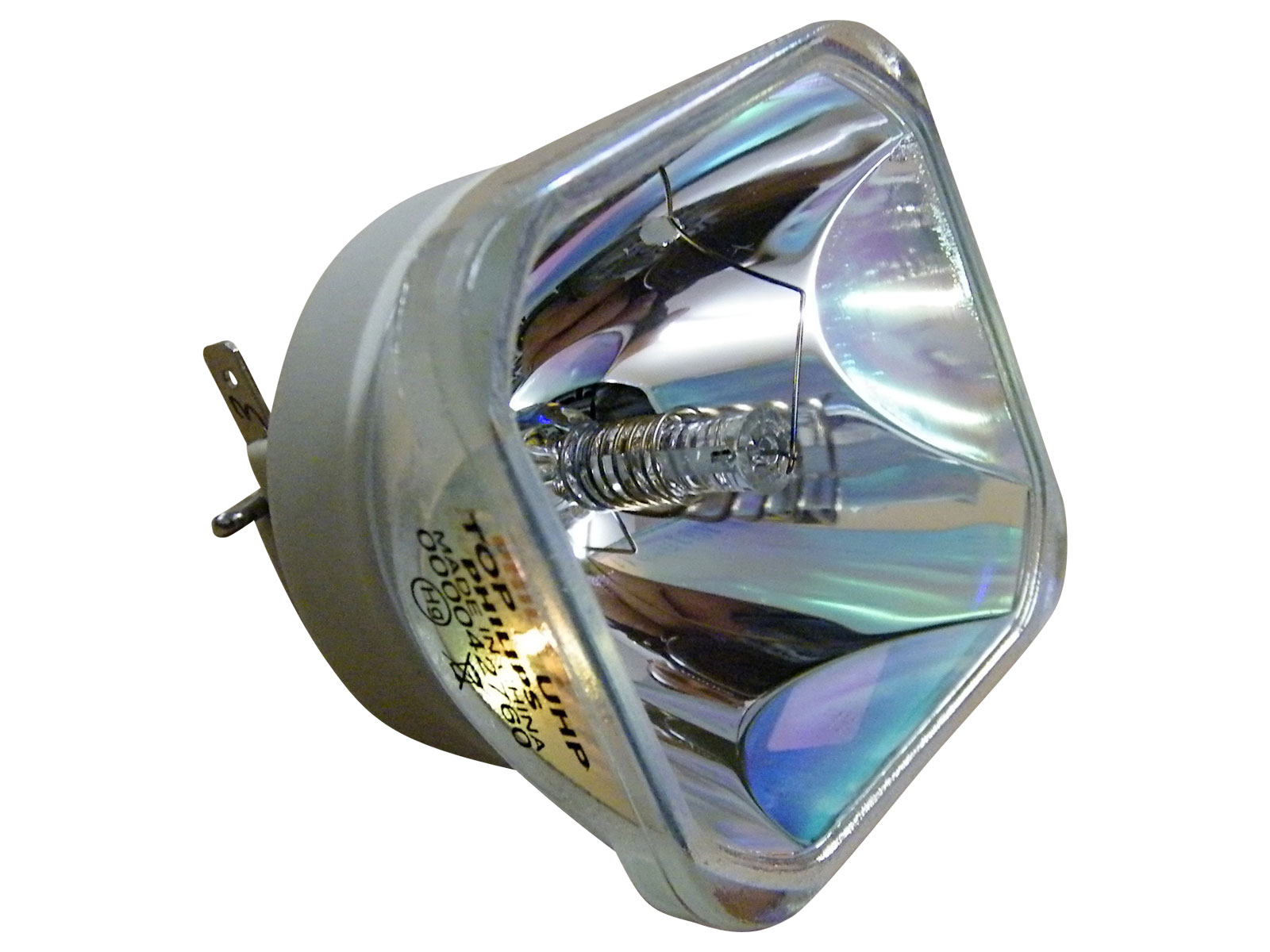

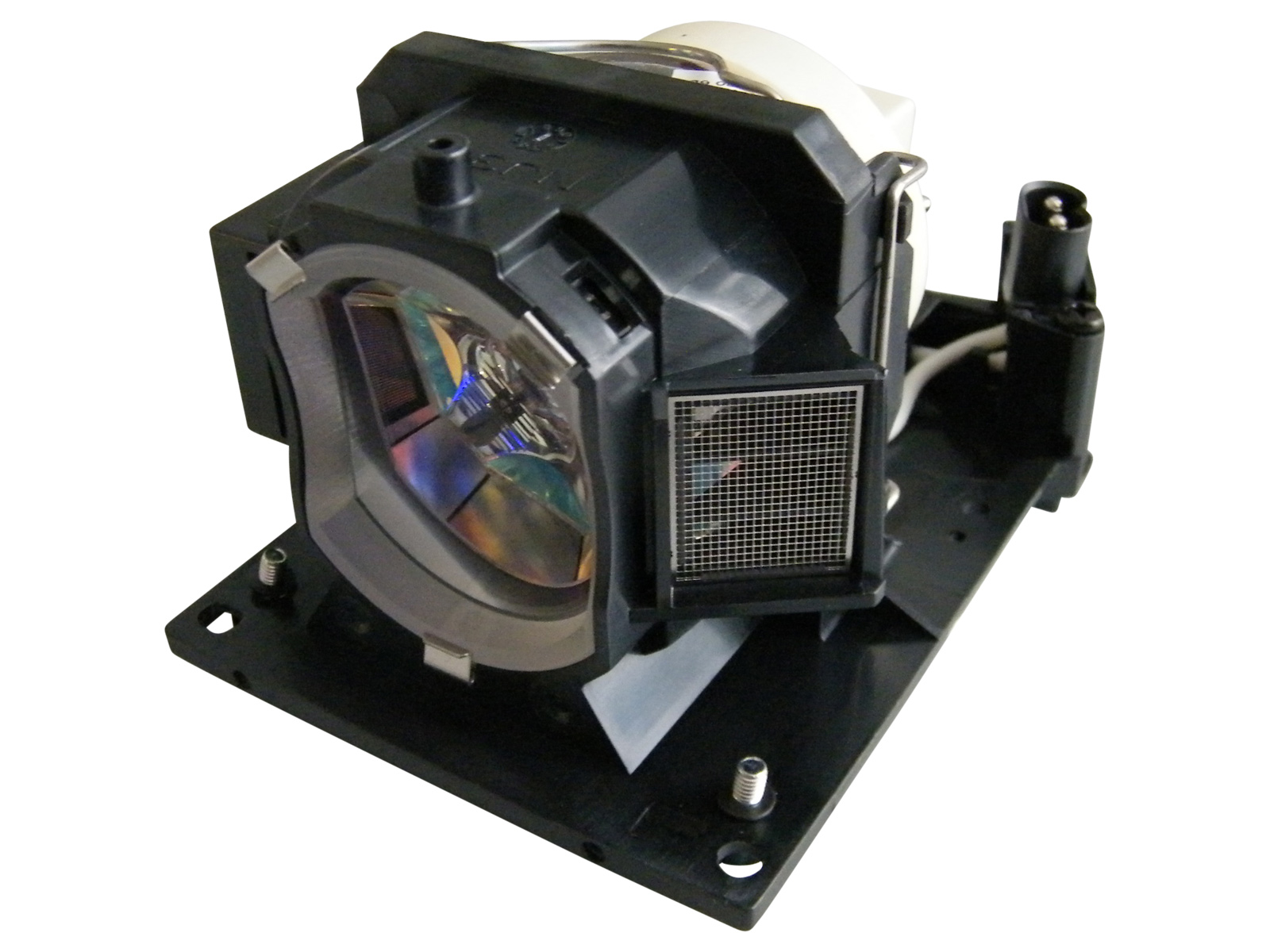

| Light Source |
250W Lamp
Article Nr.: DT01411
|
|
| Light Life |
4000 h. 6000 h. in Eco Mode |
| Operating Costs |
-
|
|
60 cm (no Zoom)
|
 |
|
Lux: |
1480 Lux |
|
Room light max.: |
296 Lux |
|
Candela pro m²: |
469 cd/m² |
|
Foot-Lamberts: |
137 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Automatic |
| Zoom |
No Zoom |
| Objective |
F=1,6 |
| Throw Ratio |
0,3:1 |
| Audio |
1 x 16W Mono |
| Connections |
2x HDMI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
360W |
| Size WxHxD |
382 x 141 x 362 mm (15"x5,6"x14,3") 19,5 L/dm³
|
| Operating Noise |
37 / 32 dB in Eco Mode |
Key: 5 cm |
Key: 5 cm | | Key: 5 cm |
| |
|
|
| Weight |
4,60 kg / 10,14 lbs. |
| Keystone |
Vert.: +/-5°
Hori.: +/-5°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
137 fL
/ max. 618 cm screen width |
| Candela m² |
469 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Kensington Slot
PJLink™
Optional Wi-Fi network compatible.
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
AMX
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Maxell MC-TW3506E compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
44 |
Weight: |
|
92 |
| Contrast: |
|
1 |
dB: |
|
24 |
| Black level: |
|
100 |
Power cons.: |
|
91 |
| Picture Total Points: | 48 |
Projector Total Points: | 69 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
940 (From: 974) |
|
|
|
|
|
| Status |
2018 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2019-06-18 14:16:15
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (4.02 MB)

|
