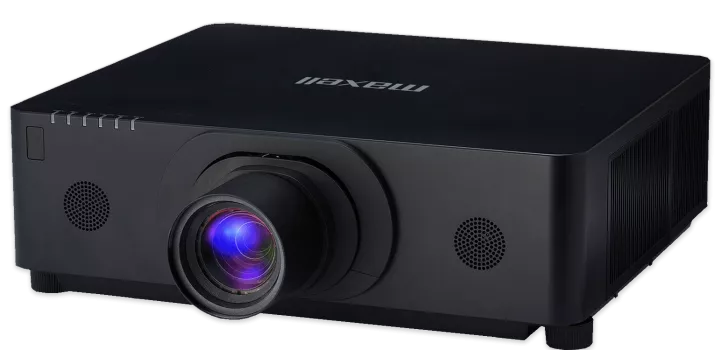

The MC WU8701B is a LCD projector by Maxell, whose specifications list 7000 ANSI lumens, a contrast of 10000:1 and a WUXGA 1920 x 120 resolution. According to Maxell, the included lamp lasts up to 2000 hours. Regarding setup flexibility, the model features an optical lens shift function alongside digital keystone correction, allowing for precise alignment without distortion. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Lens Calculator. A look at the light output reveals: The 7000 ANSI lumens are sufficient to illuminate an image width of up to 850 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 567 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. As an additional feature, an integrated media player enables the direct playback of files without an external source device. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. This model dates back to 2016 and is no longer part of Maxell's current product range.
Display Type
3 x LCD TFT Panel WUXGA 16/9 Liquid Crystal Display
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p Media player formats: • JPEG (.jpeg, .JPEG)
• Bitmap (.bmp)
• PNG (.png)
• GIF (.gif)
• Movie (.avi, .mov)
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
2 x HDMI in
D-sub 15 pin in und out
SDI in
S-Video in
Cinch Video in
Cinch Stereo in
USB Typ A,B in
Mini Jack Audio in und out
RS232C Din 9 pin
RJ45 mit HDBaseT in
Full HD 1080P compatible Lens shift Funktion Integrated Mediaplayer Freeze Blackboard Modus User logo Eco Mode Automatic and manual vertical keystone correction Kensington Slot 360° installable Picture-in-Picture Password protection PJLink™ Control via web browser Optional Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible. Picture-by-picture
Full HD 1080P compatible
Product Sheet english
