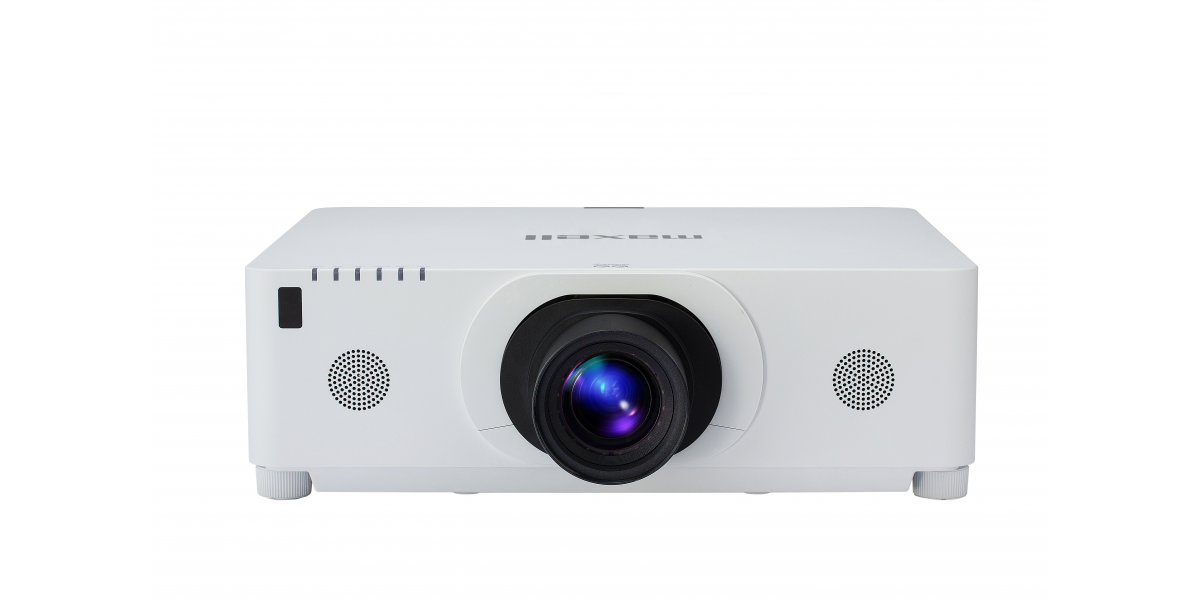

With the MC-WX8651W, Maxell offers a LCD projector that features 6500 ANSI lumens, a contrast of 10000:1 and a resolution of WXGA 1280 x 800. According to Maxell, the lamp has a durability of 3000 hours. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Lens Calculator is available to calculate the exact dimensions. Looking at practical performance, up to 819 cm can be illuminated with 6500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 546 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. The projector was released in 2019 and is officially no longer distributed by Maxell.
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.

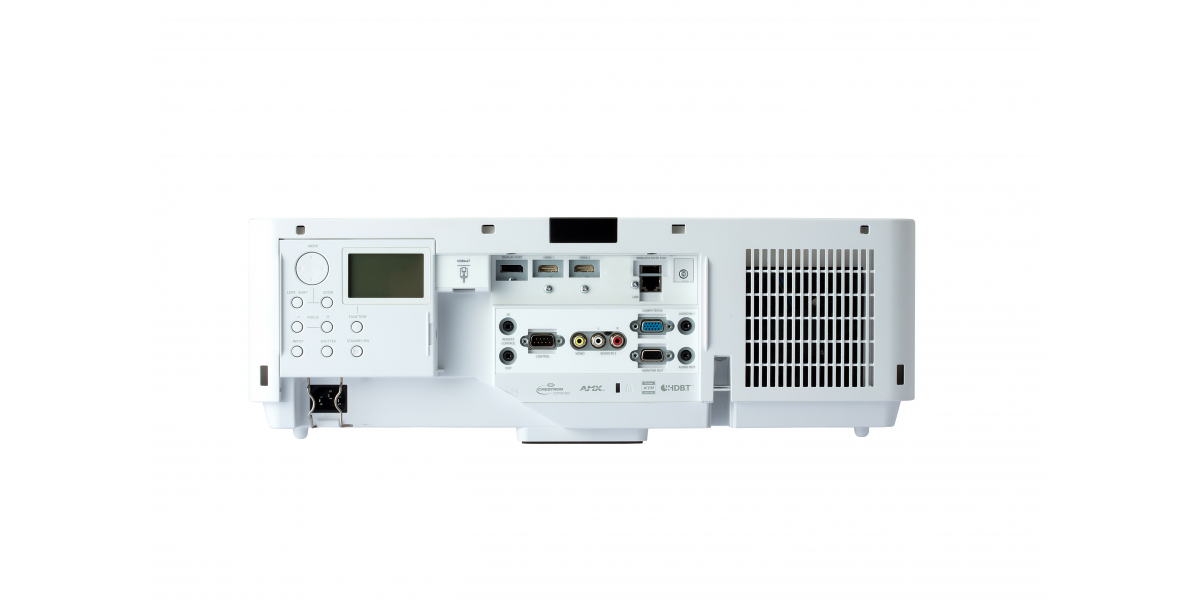

HDMI x 2
HDBaseT x 1
DisplayPort x 1
15 pin Mini D-Sub x 1
RCA Jack x1
3.5mm Stereo Mini Jack x 2
RCA Jack (L/R) x 1
9-pin D-Sub x 1
USB-WL-11N wireless adaptor (optional)
RJ45 LAN connector x 1
USB Type A x 1 (wireless adapter)
Full HD 1080P compatible
Product Sheet english HC
