Maxell MP-EX5002

Image Maxell MP-EX5002
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The MP-EX5002 model is a LCD projector from Maxell, intended for Stationary applications, offering 5300 ANSI lumens, a contrast of 500000:1 at XGA 1024 x 768. This is a laser projector with a light source designed to last for 20000 hours – calculating to 13.7 years at four hours of use per day.
To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion.
Looking at practical performance, up to 634 cm can be illuminated with 5300 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 423 cm.
For media input, video signals up to 1080P are supported, and also offers the technical capability for 360° projection. Thanks to MHL support, screen content from mobile devices can be transmitted via cable, including charging power for the device. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
This model dates back to 2018 and is no longer part of Maxell's current product range.
Display Type       3 x 0,63" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
5300
Screen
1767 Lux (200 cm Screen width)
Contrast 500000:1 500000:1
Black Level 0,0106 min. Lumen 0,004 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source Laser
Light Life 20000 h. 30000 h. in Eco Mode
Operating Costs 0,00 € Laser
Calculated brightness quality
The screen width may also be larger. Perfect
280 - 460 cm
Lux: 1767 Lux
Contrast: 500000:1
Candela pro m²: 562 cd/m²
Foot-Lamberts: 164 fL

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,6
Objective f=18,2-29,4 mm
Throw Ratio 1,4-2,3:1 show
Audio 16W

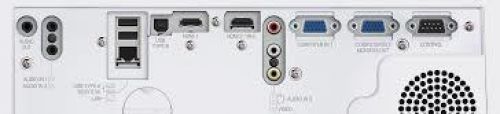

Connections 2 x HDMI in MHL
D-sub 15pin 2x in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio 2x in und out
USB in
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting Yes, is possible.
Power 360W
Size WxHxD 505,5 x 134,6 x 424,2 mm (19,9"x5,3"x16,7") 28,69 L/dm³
Operating Noise -
Key: 162 cm
Key: 162 cm

Without offset

Key: 162 cm
Key: 162 cm

Weight 7,62 kg / 16,8 lbs.
Keystone Vert.: +/-30°
Hori.: +/-30°
Illumination -
Frequenz H-sync: 15-106 kHz
V-sync: 50-120 Hz
Foot-Lamberts 164 fL / max. 634 cm screen width
Candela m² 562 cd/m²
Features Full HD 1080P compatible
Eco Mode
Kensington Slot
360° installable
Optional Wi-Fi network compatible.
Lan network compatible.
Crestron®-Software compatible.
AMX
DICOM
Screen Mirroring über HDMI MHL
In Comparison
The Maxell MP-EX5002 compared to others not current "Stationary" projectors.
Ansi-Lumen:
52 Weight:
100
Contrast:
10 dB: 0
Black level:
100 Power cons.:
96
Picture Total Points:54 Projector Total Points:0
Popularity Top 100
4 popularity points 6 popularity points 5 popularity points 0 popularity points 2 popularity points 1 popularity points
Points:
1
Ranking: 2261 (From: 2536)
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Status 2018 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Product Sheet english
Product Sheet english HC
User Manual english (5.96 MB)
