3M MP 7740i
Image 3M MP 7740i
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The hardware properties of the MP 7740i manufactured by 3M include 1200 ANSI lumens, a XGA 1024 x 768 resolution and a contrast value of 400:1. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
A look at the light output reveals: The 1200 ANSI lumens are sufficient to illuminate an image width of up to 302 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 201 cm.
This model dates back to 2002 and is no longer part of 3M's current product range.
Display Type       3 x 0,7" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 1200
Screen
 400 Lux (200 cm Screen width)
Contrast 400:1 full on/off 400:1 full on/off
Black Level 3,0000 min. Lumen 1,008 min. Lumen
Offset 36% 21 cm under screen top edge →
SCREEN
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes NTSC / NTSC 4.43 / PAL (einschl. PAL-M, N) / SECAM, PAL-60
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 150W UHP Lamp
Article Nr.: EP7750LK / 78-6969-9565-9
Order Lamp
51,93 - 102,77 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Good (1.8)
246 - 280 cm
Lux: 400 Lux
Contrast: 400:1
Candela pro m²: 127 cd/m²
Foot-Lamberts: 37 fL
54 cm

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,17
Objective F=2,0-2,3 f=18-21 mm
Throw Ratio 1,23-1,4:1 show
Audio -
Connections D-sub 15pin in
YUV in
Mini Jack in
Cinch Stereo in
Cinch Video in
S-Video
RS232C
Ceiling Mounting Yes, is possible.
Power 240W
Size WxHxD 289 x 84 x 215 mm (11,4"x3,3"x8,5") 5,22 L/dm³
Operating Noise 41dB

Weight 2,50 kg / 5,51 lbs.
Keystone Vertical
Illumination -
Frequenz H-sync: 31,5-78 kHz
V-sync: 56-120 Hz
Foot-Lamberts 37 fL / max. 302 cm screen width
Candela m² 127 cd/m²
Features Freeze
Blank (Black screen button)
Eco Mode
Kensington Slot
Gamma correction
Screen Mirroring -
In Comparison
The 3M MP 7740i compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
13 Weight:
88
Contrast:
1 dB:
21
Black level:
89 Power cons.:
98
Picture Total Points:34 Projector Total Points:69
Popularity Top 100
2 popularity points 6 popularity points 4 popularity points 0 popularity points 1 popularity points 3 popularity points
Points:
3
Ranking: 5892 (From: 7737)
Optional accessories

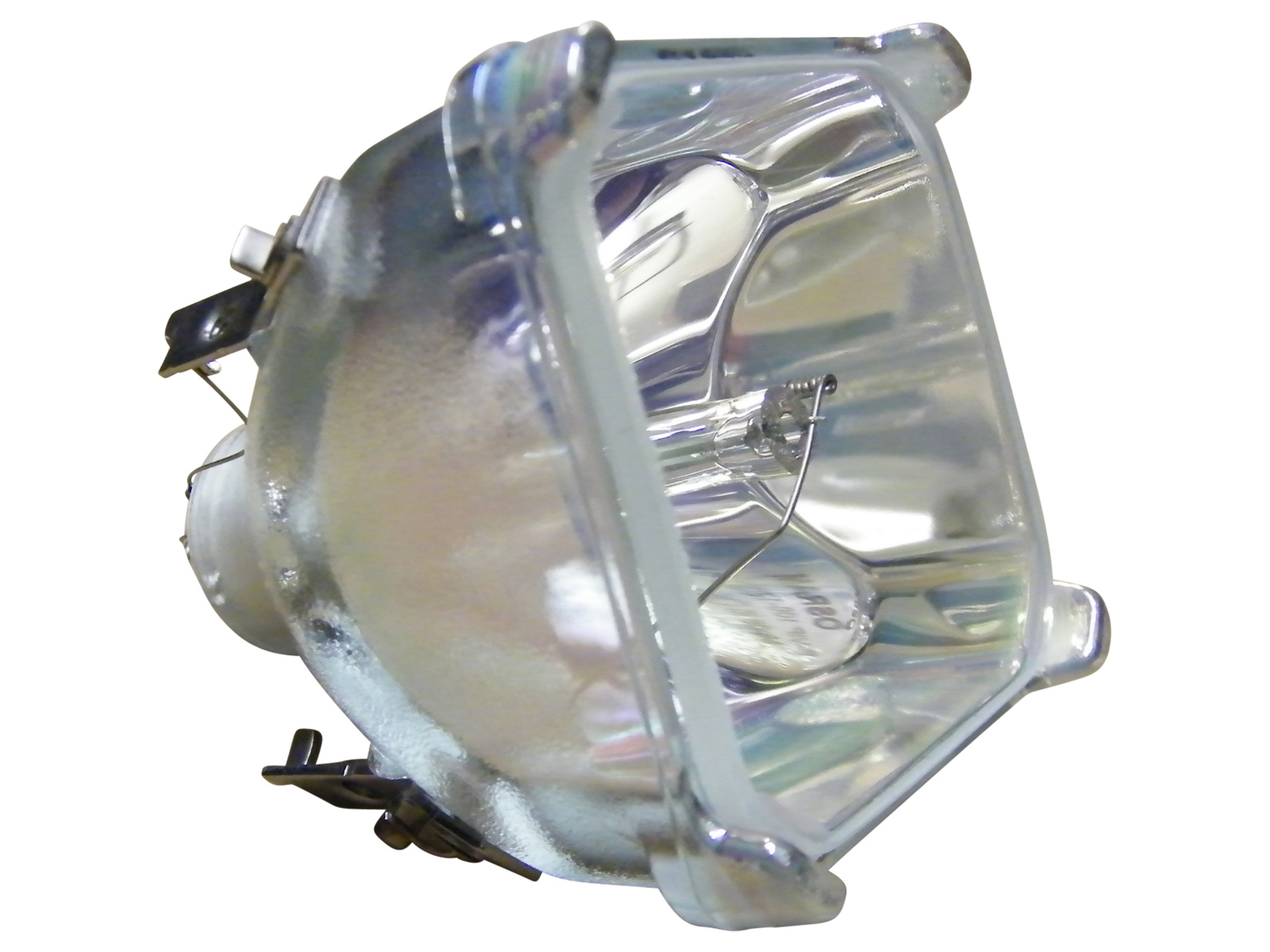

bulb only NLMP147114,82 €
lamp ruby Ruby-LMP147102,77 €
lamp OriginalEP7750LK / 78-6969-9565-9EOL €
Compatible lamp LMP-K14751,93 €
Universal Remote Fernb-uni-V322,31 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2002 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
3M Website
Product Sheet
Product Sheet english HC
User Manual english (1.28 MB)
