Brief Introduction
Beta 2.5 |
A brief introduction to the MP 8765: The 3M standard portable LCD projector offers 2500 Ansi lumens, a contrast of 350:1 and an XGA 1024 x 768 resolution. The projector can illuminate an image width of up to 435 cm with its 2500 Ansi lumens. In room light, however, the image width should ideally be less than 290 cm. It was launched in 2002 and is no longer offered by the manufacturer 3M.
|
| Display Type |
3 x 0,9" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
833 Lux (200 cm Screen width) |
| Contrast |
350:1 full on/off |
350:1 full on/off
|
| Black Level |
7,1429 min. Lumen |
2,4 min. Lumen |
| Offset |
40% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
NTSC, PAL, SECAM Pal 60 NTSC 4,43 HDTV 480i,480p,525i,525p,720p,1080i) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

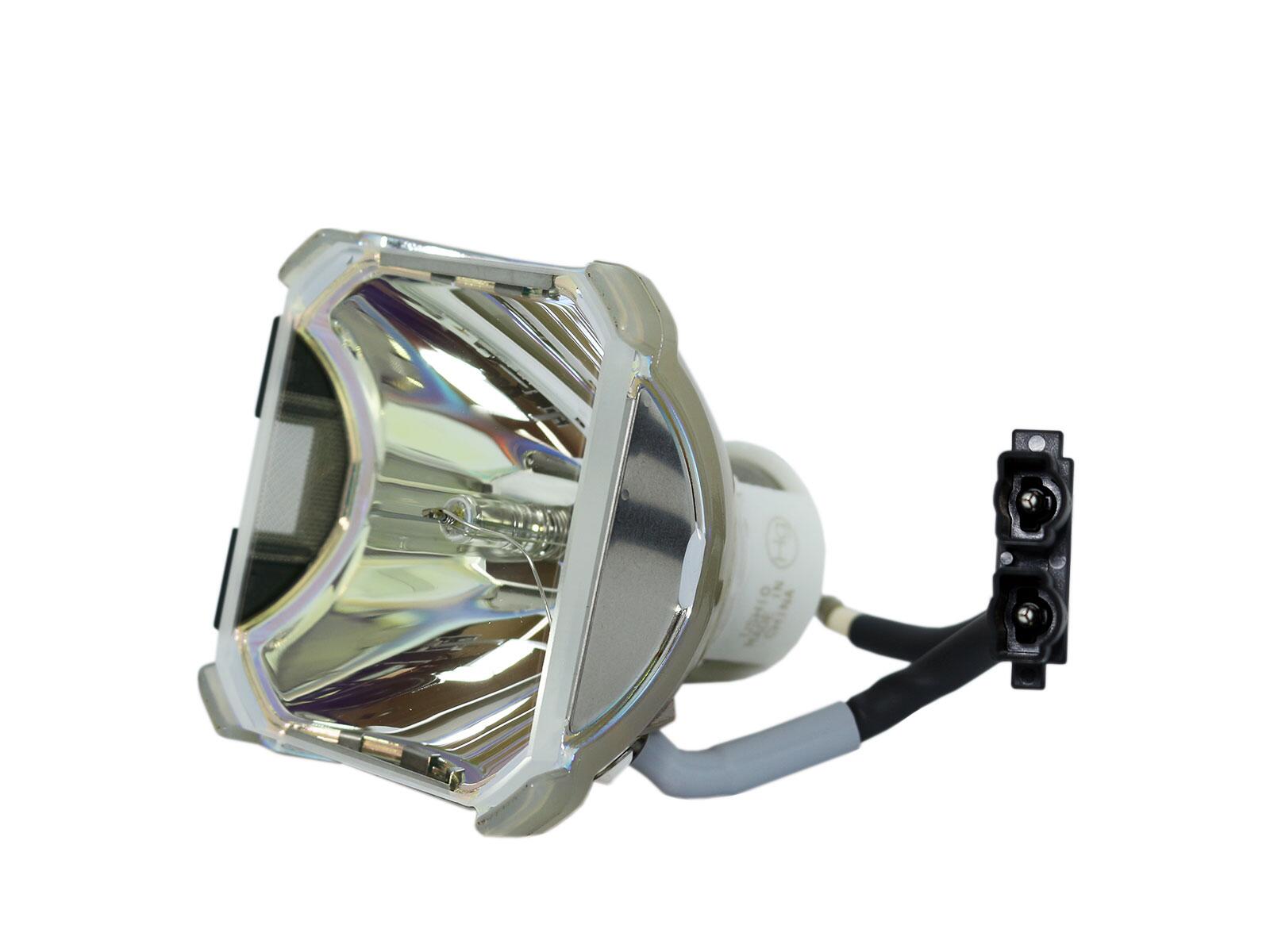

250W UHB Lamp
Article Nr.: EP8765LK / 78-6969-9547-7
|
|
| Light Life |
1500 h. |
| Operating Costs |
-
|
|
410 - 514 cm
|
 |
|
Lux: |
833 Lux |
|
Room light max.: |
167 Lux |
|
Candela pro m²: |
264 cd/m² |
|
Foot-Lamberts: |
77 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,3 |
| Objective |
F=1,7-2,1 f=36,8-47,8 mm |
| Throw Ratio |
2,05-2,57:1 show |
| Audio |
2 x 1W Stereo |
| Connections |
- |
| Ceiling Mounting |
Yes, is possible. |
| Power |
410W |
| Size WxHxD |
361 x 107 x 257 mm (14,2"x4,2"x10,1") 9,93 L/dm³
|
| Operating Noise |
40 / 36 dB in Eco Mode |
|
| Weight |
4,20 kg / 9,26 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
- |
| Frequenz |
H-sync: 31-77 kHz
V-sync: 56-120 Hz
|
| Foot-Lamberts |
77 fL
/ max. 435 cm screen width |
| Candela m² |
264 cd/m² |
| Features |
 Freeze
Blank (Black screen button)
User logo
Eco Mode
Kensington Slot
Gamma correction
Picture-in-Picture
Remote control with laser pointer und mouse control
|
|
- |
In Comparison
The 3M MP 8765 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
80 |
| Contrast: |
|
1 |
dB: |
|
23 |
| Black level: |
|
73 |
Power cons.: |
|
95 |
| Picture Total Points: | 34 |
Projector Total Points: | 66 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
2992 (From: 7662) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
|
| Status |
2002 Discontinued (EOL) // Last update of the data: 2024-03-07
|
