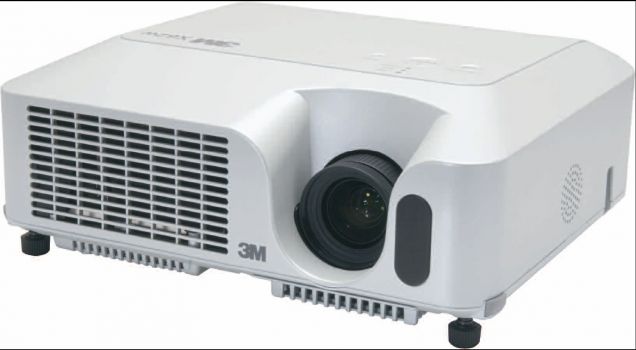

Designed for the Standard-Portabel sector, the X62w model from 3M features 2500 ANSI lumens, a native XGA 1024 x 768 resolution and a contrast ratio of 500:1. In operating mode, the installed projector lamp offers a lifespan of 2000 hours. A look at the light output reveals: The 2500 ANSI lumens are sufficient to illuminate an image width of up to 435 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 290 cm. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since entering the market in 2006, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
3 x 0,63" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
2500 / 2000 im Eco Mode
Screen
833 Lux (200 cm Screen width)
Contrast
500:1 full on/off
500:1 full on/off
Black Level
5,0000 min. Lumen
1,676 min. Lumen
Offset
40% 15 cm under screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
2 x D-sub 15pin in 1 x out
YUV in
Cinch Video in
S-Video in
Cinch Video in
Mini Jack in
RS232C Din 9 pin
USB (Wireless Lan)
RJ45 in
SD Card, USB 2.0 Memory (jpeg, bmp, png, MPEG4)
Direkt Power Off Integrated Mediaplayer Freeze Blank (Black screen button) Blackboard Modus User logo Eco Mode Automatic and manual vertical keystone correction Kensington Slot Gamma correction Password protection Remote control with laser pointer und mouse control Control via web browser Wi-Fi network compatible. Lan network compatible. Overscan adjustable De-interlacer with 3:2 pull down..
Direkt Power Off
