Model Overview
The projector H10 by 3M utilizes LCD technology and, according to the spec sheet, achieves 700 ANSI lumens, a contrast of 800:1 at a resolution of WVGA 854 x 480. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary.
Display Type
3 x 0,55" LCD TFT Panel
Ansi-Lumen
Projector
700 / 560 im Eco Mode
Screen
311 Lux (200 cm Screen width )
Contrast
800:1 full on/off
800:1 full on/off
Black Level
0,8750 min. Lumen
0,39 min. Lumen
Offset
50% Exactly on screen top edge →
Resolution
WVGA 854 x 480
Video Modes
PAL, PAL-M, PAL-N, SECAM, NTSC, EDTV HDTV 720p, 1080i,
Disc Recognition
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray
Application
Homecinema | Small screen width, rooms with very little ambient light below 50 lumens.
Light Source

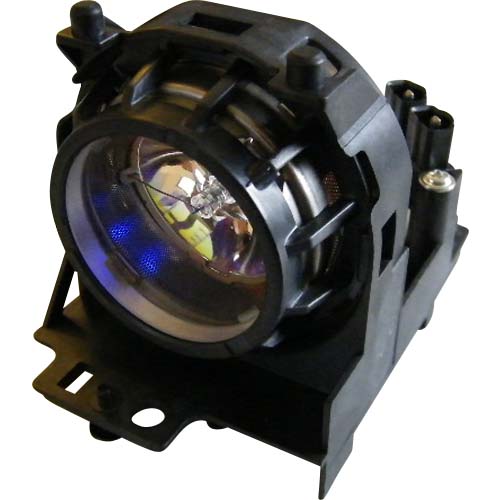

130W UHB Lamp78-6969-9693-9
Light Life
2000 h.
Operating Costs
-
Calculated brightness quality Good (2.3)
280 - 360 cm
Lux:
311 Lux
Contrast:
800:1
Candela pro m²:
99 cd/m²
Foot-Lamberts:
29 fL
•
Focus
Manual
Zoom
Manual 1,2
Objective
F=1,6-1,8 f=16,8-20,1 mm
Throw Ratio
1,4-1,8:1 show
Audio
1 x 1W
Connections
D-sub 15pin in
Ceiling Mounting
Yes, is possible.
Power
220W
Size WxHxD
329 x 107 x 243 mm (13"x4,2"x9,6") 8,55 L/dm³
Operating Noise
34 / 28 dB in Eco Mode
Weight
3,09 kg / 6,81 lbs.
Keystone
Vert.: +/-10°
Illumination
-
Frequenz
H-sync: 31-61 kHz
Foot-Lamberts
29 fL
/ max. 269 cm screen width
Candela m²
99 cd/m²
Features
-
In Comparison The 3M H10 compared to others not current "Homecinema" projectors.
Ansi-Lumen:
5
Weight:
100
Contrast:
1
dB:
53
Black level:
90
Power cons.:
96
Picture Total Points: 32
Projector Total Points: 83
Popularity Top 100
Points:
4
Ranking:
781
Status
2004 Discontinued (EOL) // Last update of the data: 2026-06-09
