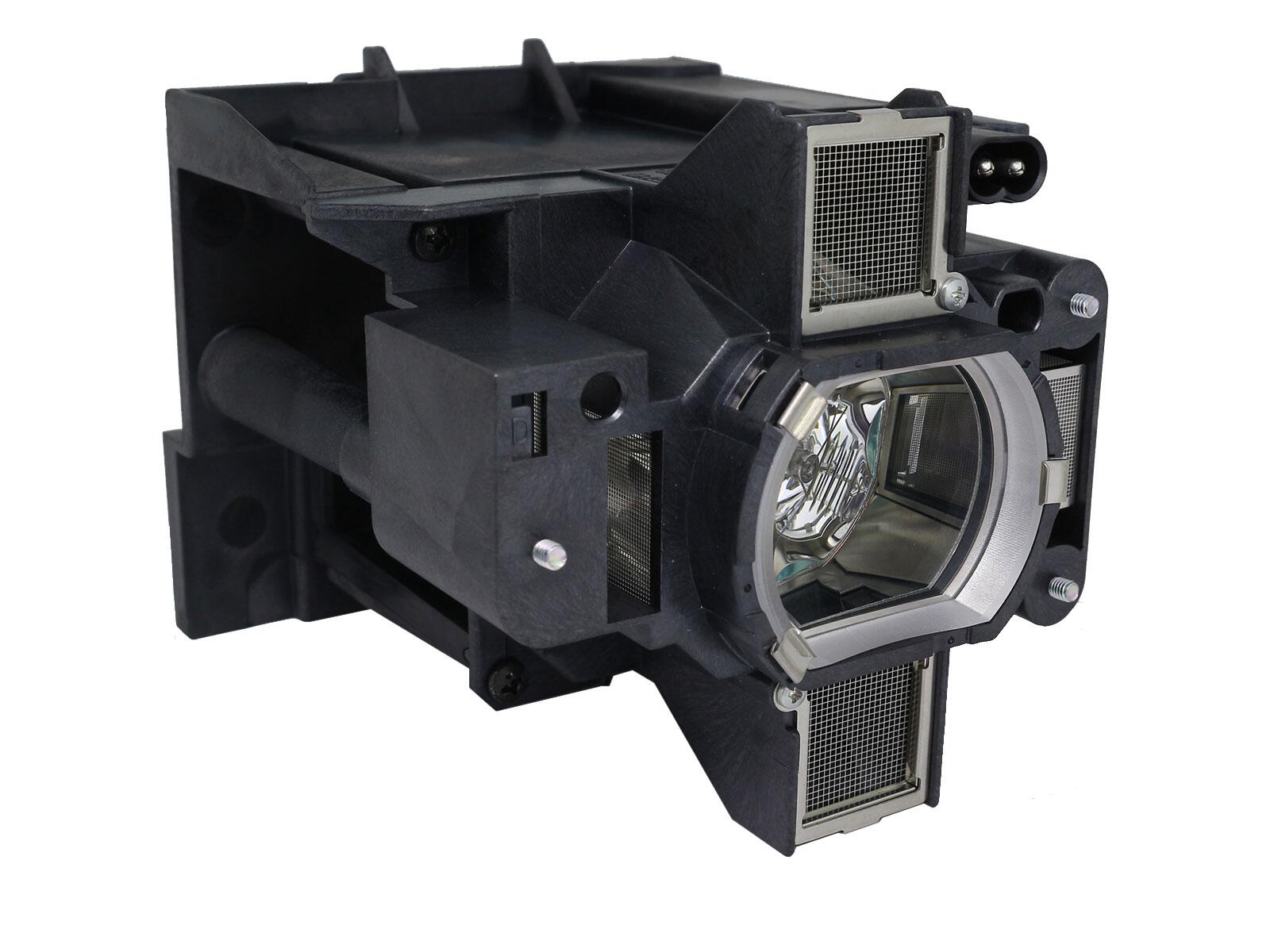

Designed for the Stationary sector, the MC-WX8751B model from Maxell features 7500 ANSI lumens, a native WXGA 1280 x 80 resolution and a contrast ratio of 10000:1. In operating mode, the installed projector lamp offers a lifespan of 2000 hours. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projector Calculator. Regarding projection size, the value of 7500 ANSI lumens allows for an image width of up to 880 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 587 cm. Regarding signal processing, the model is compatible with incoming 1080P content, and also offers the technical capability for 360° projection. Also on board is a local media player that allows reading and playing content directly from storage media. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. The projector was released in 2016 and is officially no longer distributed by Maxell.
Display Type
3 x LCD TFT Panel WXGA 16/10 Liquid Crystal Display
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p Media player formats: • JPEG (.jpeg, .JPEG)
• Bitmap (.bmp)
• PNG (.png)
• GIF (.gif)
• Movie (.avi, .mov)
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.

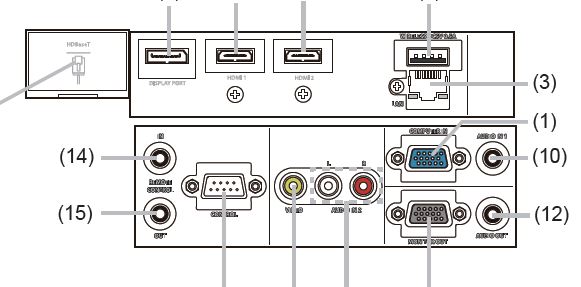

2 x HDMI in
D-sub 15 pin in und out
SDI in
S-Video in
Cinch Video in
Cinch Stereo in
USB Typ A,B in
Mini Jack Audio in und out
RS232C Din 9 pin
RJ45 mit HDBaseT in
Ceiling Mounting
Yes, is possible.
Power
580 / 560W in Eco Mode
Size WxHxD
497,8 x 154,9 x 426,7 mm (19,6"x6,1"x16,8") 32,61 L/dm³
Full HD 1080P compatible Lens shift Funktion Integrated Mediaplayer Freeze Blackboard Modus User logo Eco Mode Automatic and manual vertical keystone correction Kensington Slot 360° installable Picture-in-Picture Password protection PJLink™ Control via web browser Optional Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible. Picture-by-picture
Full HD 1080P compatible
Product Sheet english
