Brief Introduction
Beta 2.5 |

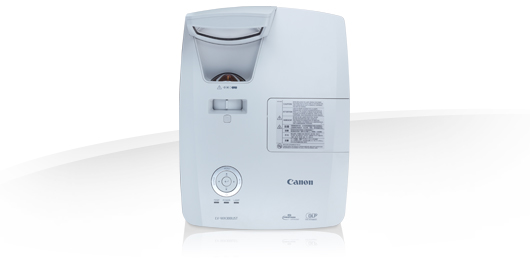

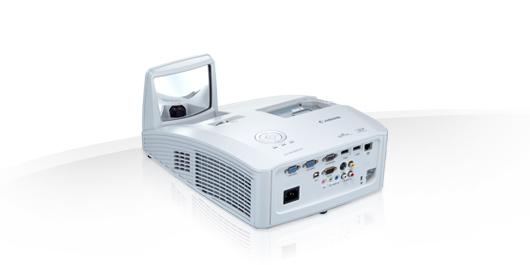

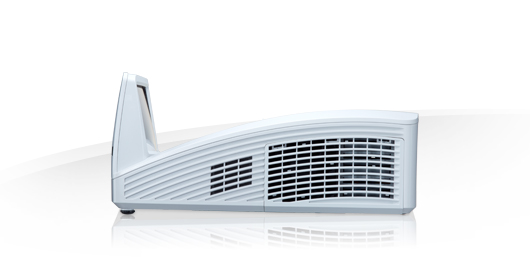

The short-throw LV WX300UST DLP projector from Canon has 3000 Ansi lumens, a contrast of 2300:1 and a WXGA 1280 x 800 resolution. The lamp life is up to 5000 hours, which is over 6.8 years with a daily viewing time of 2 hours. This projector has a projection ratio of only 0.35:1. For a 2 m wide image, the projector only needs to be 70 cm away from the screen. The projector is equipped with a microphone jack plug and 10W speakers, so no additional speakers are required for presentations or training sessions. Even 1080P video signals are no problem for the projector. The projector was launched in 2015 and is no longer sold by the manufacturer.
|
| Display Type |
1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 / 2500 im Eco Mode |
Screen |
1200 Lux (200 cm Screen width) |
| Contrast |
2300:1 full on/off |
2300:1 full on/off
|
| Black Level |
1,3043 min. Lumen |
0,522 min. Lumen |
| Offset |
75% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
230 / 200W im Eco Mode Lamp
Article Nr.: LV-LP41 / 0740C001
|
|
| Light Life |
5000 h. |
| Operating Costs |
-
|
|
70 cm (no Zoom)
|
 |
|
Lux: |
1200 Lux |
|
Room light max.: |
240 Lux |
|
Candela pro m²: |
380 cd/m² |
|
Foot-Lamberts: |
111 fL |
|
 |
| 94 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
- |
| Throw Ratio |
0,35:1 |
| Audio |
2 x 10W Stereo |

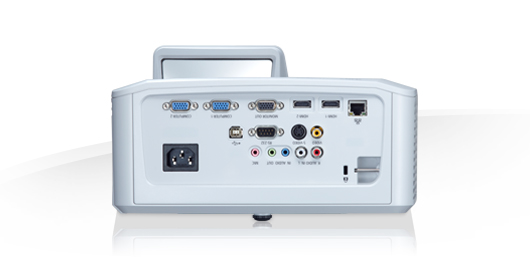

| Connections |
2 x HDMI in
2 x D-Sub 15 pin in 1 x out
S-Video in
Cinch Video in
Mini Jack Audio in und out
USB Typ B
RS232C Din 9 pin in
RJ45 in
Mikrofon in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
300 / 240W in Eco Mode |
| Size WxHxD |
287,5 x 122,60 x 374,5 mm (11,3"x4,8"x14,7") 13,1 L/dm³
|
| Operating Noise |
33 / 29 dB in Eco Mode |
|
| Weight |
5,00 kg / 11,02 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
75% |
| Frequenz |
- |
| Foot-Lamberts |
111 fL
/ max. 556 cm screen width |
| Candela m² |
380 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Kensington Slot
PJLink™
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
Digital zoom 2x maximum
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Canon LV WX300UST compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
35 |
Weight: |
|
91 |
| Contrast: |
|
1 |
dB: |
|
47 |
| Black level: |
|
97 |
Power cons.: |
|
93 |
| Picture Total Points: | 44 |
Projector Total Points: | 77 |
|
| Popularity Top 100 |
|
| Points: |
|
17 |
| Ranking: |
347 (From: 974) |
|
|
|
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2015-07-08 14:25:50
|
