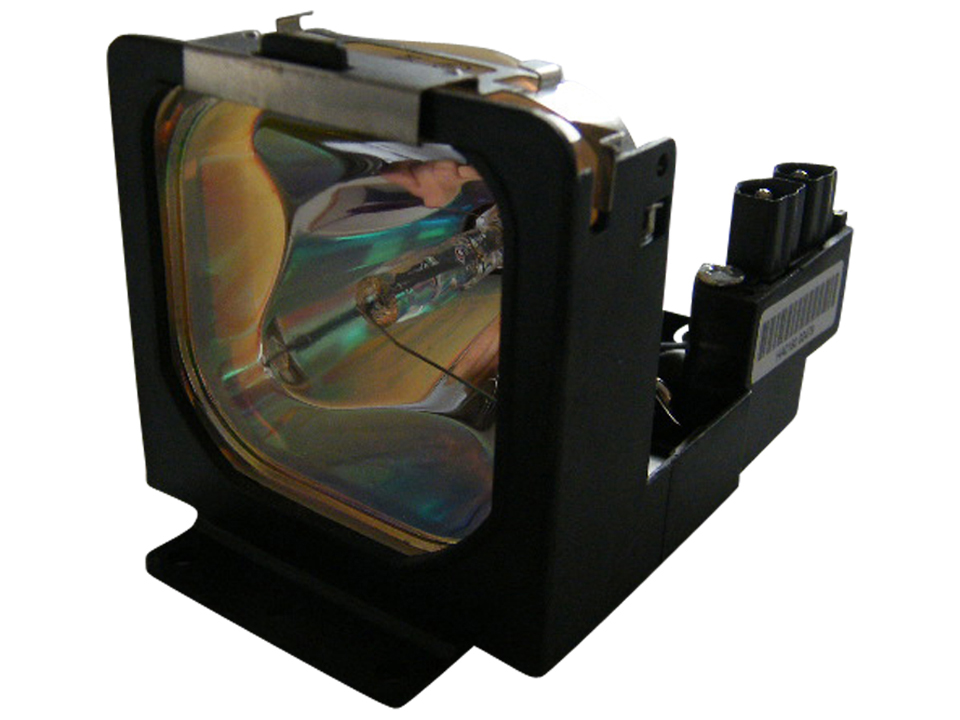

The equipment of the Canon LV 5100 projector includes 700 ANSI lumens, a contrast of 250:1 with a SVGA 800 x 600 display. The manufacturer specifies a runtime of 1000 hours for this projector's lamp. Looking at practical performance, up to 230 cm can be illuminated with 700 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 153 cm. This device is no longer manufactured and has been removed from Canon's current lineup.
Display Type
3 x 0,7 TFT Panel SVGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
700
Screen
233 Lux (200 cm Screen width)
Contrast
250:1 full on/off
250:1 full on/off
Black Level
2,8000 min. Lumen
0,943 min. Lumen
Offset
-
Resolution
SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed
Video Modes
NTSC, PAL, SECAM, NTSC 4.43
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Mini Jack (stereo) x 1
S-Video (4 Pin DIN) x 1
RCA x 3 (Component Y/Video,Pb/Cb,Pr/Cr)
Ausgang Mini Jack (stereo) x 1
Mini-DIN 8-Pin-Typ x 1
Mini Jack (stereo) x 1
HDB 15 Pin x 1
Ceiling Mounting
Yes, is possible.
Power
200W standby 7,5W
Size WxHxD
189 x 75,5 x 310 mm (7,4"x3"x12,2") 4,39 L/dm³
Operating Noise
39dB
Key: 106 cm
Without offset
Key: 106 cm
Weight
2,70 kg / 5,95 lbs.
Keystone
Vert.: +/-15°
Illumination
80%
Frequenz
H-sync: 15-80 kHz V-sync: 50-100 Hz Range max.: 100 MHz
Freeze Gamma correction Remote control with laser pointer und mouse control Automatic detection of video input signal Power management: auto off after 5 min digital Zoom 16x
Freeze
