Model Overview

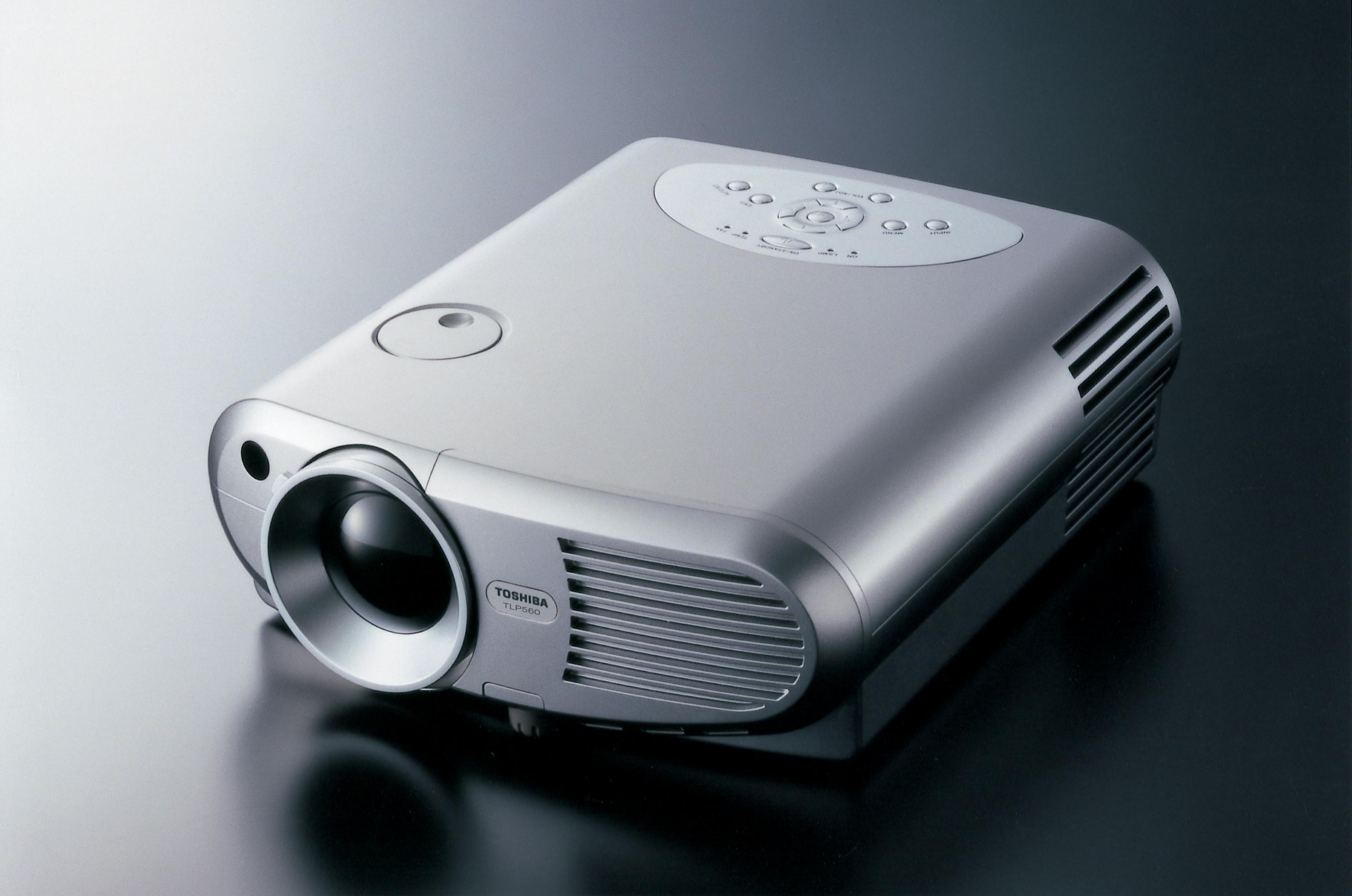

The TLP 560 is a LCD projector by Toshiba, whose specifications list 1300 ANSI lumens, a contrast of 400:1 and a XGA 1024 x 768 resolution. According to Toshiba, the lamp has a durability of 1500 hours.
Looking at practical performance, up to 314 cm can be illuminated with 1300 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 209 cm.
The model is currently no longer actively offered on the market by the manufacturer.

Display Type

3 x 0,7" LCD TFT Panel MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array

Ansi-Lumen

Projector

1300

Screen

433 Lux (200 cm Screen width)

Contrast

400:1 full on/off

Black Level

3,2500 min. Lumen

1,091 min. Lumen

Offset

Resolution

XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed

Video Modes

NTSC,PAL,SECAM

Application

Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.

Light Source

160W Lamp
Article Nr.: TLPL55

Order Lamp
55,24 - 118,12 €

Light Life

1500 h.

Operating Costs

Calculated brightness quality Good (1.8)

204 - 244 cm


	Lux:	433 Lux
	Contrast:	400:1
	Candela pro m²:	137 cd/m²
	Foot-Lamberts:	40 fL

•

Focus

Manual

Zoom

Manual 1,2

Objective

F=1,8 f=14,5-17,4 mm

Throw Ratio

1,02-1,22:1 show

Audio

Connections

D-sub 15pin in und Ausgang
Cinch Video in
S-Video
2 x Audio
RS232C

Ceiling Mounting

Yes, is possible.

Power

Size WxHxD

260 x 95,5 x 295 mm (10,2"x3,8"x11,6") 7,29 L/dm³

Operating Noise

Key: 55 cm
	Without offset
	Key: 55 cm

Weight

3,20 kg / 7,05 lbs.

Keystone

Vert.: +/-15°

Illumination

Frequenz

Foot-Lamberts

40 fL / max. 314 cm screen width

Candela m²

137 cd/m²

Features

Kensington Slot

Picture-in-Picture

Lens shift

Screen Mirroring

In Comparison

The Toshiba TLP 560 compared to others not current "Standard-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

1707 (From: 7737)

Optional accessories
	lamp ruby	Ruby-LMP4091	118,12 €
	lamp Original	TLPL55	EOL €
	Compatible lamp	LMP-K4091	55,24 €
	Universal Remote	Fernb-uni-V3	22,31 €
	ceiling bracket length: 100-120mm	Halterung100	47,86 €
	Airfilter universal	uni3mm	18,15 €

Status

- Discontinued (EOL) // Last update of the data: 2026-06-09

Data

Toshiba Website

Product Sheet

Product Sheet english

Product Sheet english HC

Press release

User Manual english (2.28 MB)
