Technology Search

	PDF/Print Version		Add to Watchlist		3D Room Calculator		Comparison >>

Customer review

✎ Help other users and be the first to share your review.

✎ Help other and be the first to share your review.

Offer Ads

Discover other popular projectors on Amazon!

Model Overview

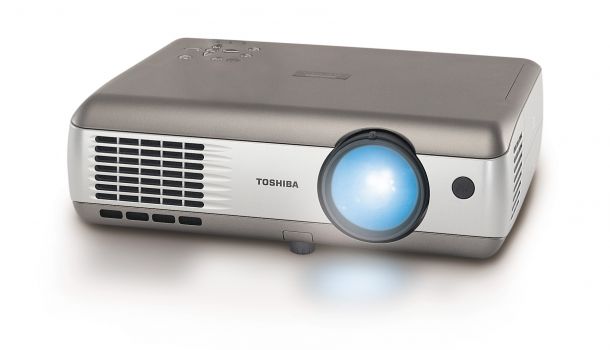

Based on LCD technology, the Toshiba TLP T700 device delivers 2000 ANSI lumens, a resolution of XGA 1024 x 768 and a contrast of 400:1 as a projector. The manufacturer rates the durability of the included lamp at 2000 hours.
Regarding projection size, the value of 2000 ANSI lumens allows for an image width of up to 389 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 259 cm.
As an additional feature, an integrated media player enables the direct playback of files without an external source device.
This model dates back to 2002 and is no longer part of Toshiba's current product range.

Display Type

3 x 0,9" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array

Ansi-Lumen

Projector

2000

Screen

667 Lux (200 cm Screen width)

Contrast

400:1 full on/off

Black Level

5,0000 min. Lumen

1,68 min. Lumen

Offset

40% 15 cm under screen top edge →

SCREEN

+ Projector

Resolution

XGA 1024 x 768
786.432 Pixel
U XGA 1600 x 1400 compressed

Video Modes

NTSC,PAL,SECAM EDV 480p HDTV 720p, 1080i
Media player formats: JPEG

Application

Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.

Light Source

165W Lamp
Article Nr.: TLPLW1

Order Lamp
49,68 - 134,23 €

Light Life

2000 h.

Operating Costs

Calculated brightness quality Perfect

380 - 480 cm


	Lux:	667 Lux
	Contrast:	400:1
	Candela pro m²:	212 cd/m²
	Foot-Lamberts:	62 fL

60 cm

•

Focus

Manual

Zoom

Manual 1,25

Objective

F=1,9-2,3 f=35,6-44,5 mm

Throw Ratio

1,9-2,4:1 show

Audio

1W Mono

Connections

Cinch Video in
S-Video in
2 x D-sub 15pin in 1 x out
RS232C
USB
PCMCIA

Ceiling Mounting

Yes, is possible.

Power

265W

Size WxHxD

298 x 97 x 311 mm (11,7"x3,8"x12,2") 8,99 L/dm³

Operating Noise

35dB

Key: 162 cm

	Key: 42 cm

Weight

4,10 kg / 9,04 lbs.

Keystone

Vert.: +/-15°

Illumination

Frequenz

H-sync: 15-93 kHz
V-sync: 50-85 Hz

Foot-Lamberts

62 fL / max. 389 cm screen width

Candela m²

212 cd/m²

Features

Integrated Mediaplayer

Freeze

Eco Mode

Kensington Slot

Remote control with laser pointer

Optional Wi-Fi network compatible.

Optional LAN network compatible.

Wireless communication Wireless LAN (IEEE802.11b)

Digital zoom

Screen Mirroring

In Comparison

The Toshiba TLP T700 compared to others not current "Standard-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

4046 (From: 7735)

Optional accessories
	Philips bulb only	NLMP4164	49,68 €
	lamp ruby	Ruby-LMP4164	134,23 €
	lamp Original	TLPLW1	EOL €
	Compatible lamp	LMP-K20518	70,64 €
	Universal Remote	Fernb-uni-V3	22,31 €
	ceiling bracket length: 100-120mm	Halterung100	47,86 €
	Airfilter universal	uni3mm	18,15 €

Status

2002 Discontinued (EOL) // Last update of the data: 2026-06-09

Data

Toshiba Website

Product Sheet english

Product Sheet english HC

User Manual english (3.5 MB)
