TOSHIBA TLP XC3000A

Customer review

2 from 5 Stars 1 Review

✎ Help other users and share your review.

Offer Ads

Discover other popular projectors on Amazon!

Model Overview

As a projector for the Standard-Portabel sector, the Toshiba TLP XC3000 is equipped with 3000 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 600:1. According to Toshiba, the included lamp lasts up to 2000 hours.
A look at the light output reveals: The 3000 ANSI lumens are sufficient to illuminate an image width of up to 477 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 318 cm.
The projector was released in 2006 and is officially no longer distributed by Toshiba.

Display Type

3 x 0,7" LCD TFT Panel
XGA 4/3 Liquid Crystal Display

Ansi-Lumen

Projector

3000

Screen

1000 Lux (200 cm Screen width)

Contrast

600:1 full on/off

Black Level

5,0000 min. Lumen

1,675 min. Lumen

Offset

38% 18 cm under screen top edge →

SCREEN

+ Projector

Resolution

XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed

Video Modes

PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p

Application

Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.

Light Source

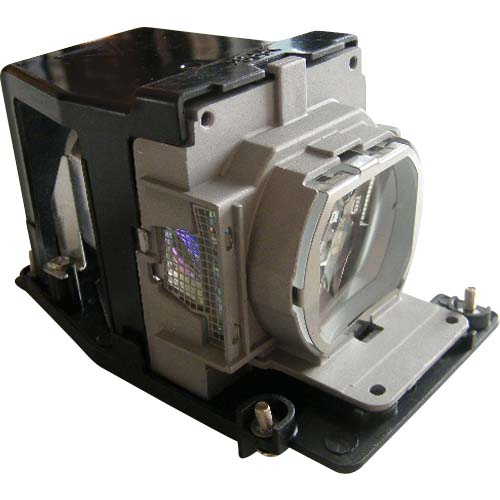

220W / 160W im Eco Mode Lamp
Article Nr.: TLP-LW12 TLPLW12LAMP

Order Lamp
73,82 - 115,63 €

Light Life

2000 h. 3000 h. in Eco Mode

Operating Costs

Calculated brightness quality
The screen width may also be larger. Perfect

372 - 442 cm


	Lux:	1000 Lux
	Contrast:	600:1
	Candela pro m²:	319 cd/m²
	Foot-Lamberts:	93 fL

57 cm

•

Focus

Manual

Zoom

Manual 1,2

Objective

F=1,8-2,1 f=26,5-31,5 mm

Throw Ratio

1,86-2,21:1 show

Audio

1W Mono

Connections

D-sub 15pin in und out
S-Video in
Cinch Video in
Cinch Stereo in
RS232C Din 8pin

Ceiling Mounting

Yes, is possible.

Power

320W

Size WxHxD

370 x 92 x 249 mm (14,6"x3,6"x9,8") 8,48 L/dm³

Operating Noise

34 / 29 dB in Eco Mode

Key: 272 cm

	Key: 158 cm

Weight

4,00 kg / 8,82 lbs.

Keystone

Vert.: +/-30° automatisch

Illumination

Frequenz

H-sync: 16-106 kHz
V-sync: 50-85 Hz

Foot-Lamberts

93 fL / max. 477 cm screen width

Candela m²

319 cd/m²

Features

Freeze

Blackboard Modus

User logo

Eco Mode

Automatic and manual vertical keystone correction

Kensington Slot

Digital image shift

Password protection

Remote control with laser pointer und mouse control

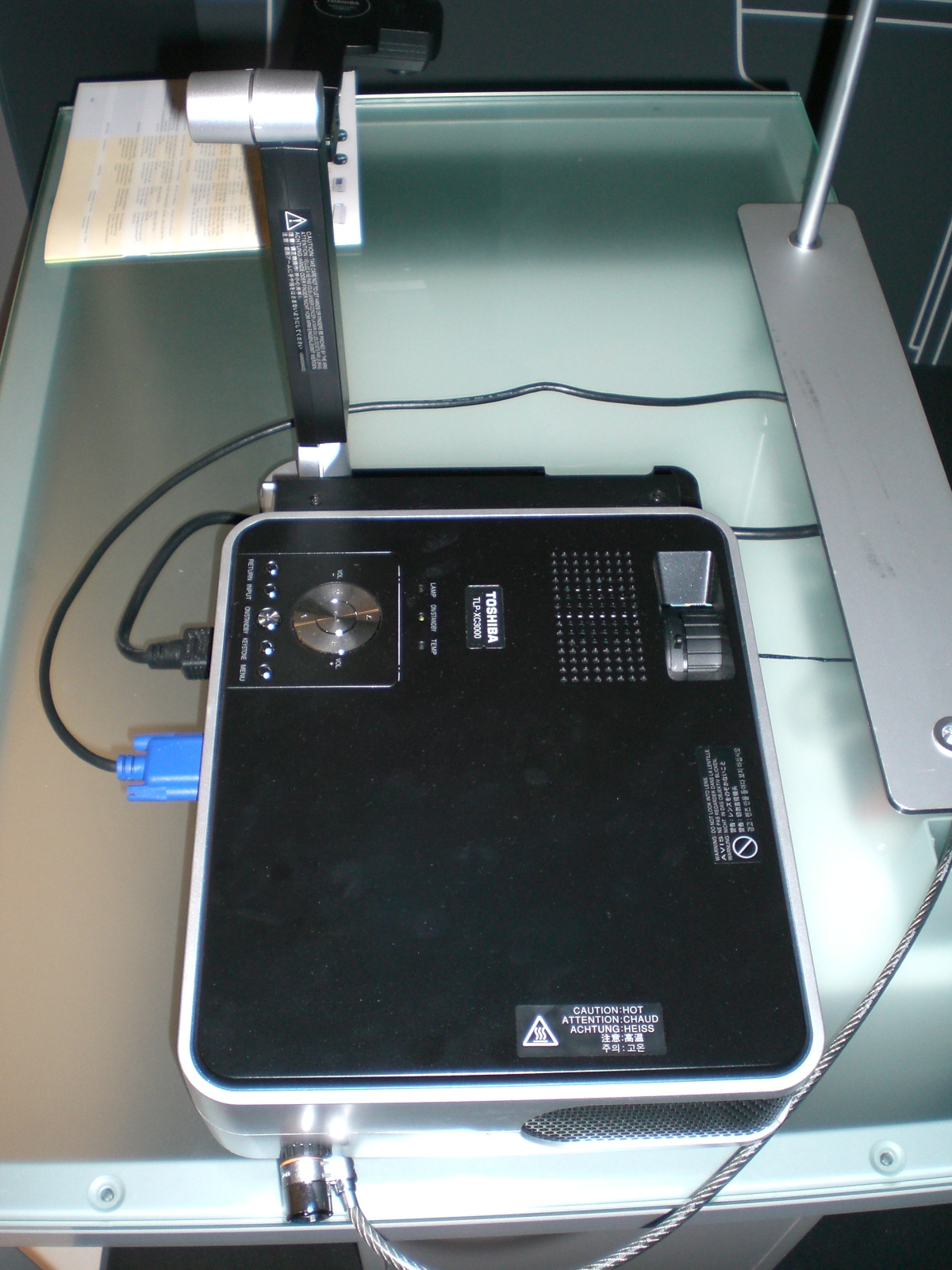

Document camera:

Lens F = 2.8, f = 2.8 mm

Focus Two-step switch

Zoom None (adjusted by distance to subject)

Pixel type 1/4.2 honeycomb CCD

Effective pixels 629,856 pixels (648H × 486V × 2)

Screen Mirroring

In Comparison

The Toshiba TLP XC3000/A compared to others not current "Standard-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

2249 (From: 7737)

Optional accessories
	bulb only	NLMP16136	135,96 €
	lamp ruby	Ruby-LMP16136	115,63 €
	lamp Original	TLPLW12	EOL €
	Compatible lamp	LMP-K16136	73,82 €
	Universal Remote	Fernb-uni-V3	22,31 €
	Ceiling Mount 100-120	Halterung100	47,86 €
	Airfilter universal	uni3mm	18,15 €

Status

2006 Discontinued (EOL) // Last update of the data: 2026-06-09

Data

Toshiba Website

Product Sheet english

Product Sheet english "A"

Product Sheet english HC

User Manual english (6.18 MB)

Popular Alternatives

3000 ANSI-Lumen


Model	PowerLite 98	INL158	CO-FD01	Q7	H2
Ansi-Lumen	3000	3000	3000	3000	3000
Specifications	XGA LAN	HDTV Laser 3D	HDTV WLAN MP	HDTV LED WLAN	HDTV LED WLAN
Compare	Compare	Compare	Compare	Compare	Compare

All: 2 from 5 Stars 1 Reviews

Autor: Andreas Pferl 05.02.10

2 Stars

HDTV 720p, 1080i...how?

How can a projector with
D-sub 15pin in and out
S-Video in
RCA Video in
RCA Stereo in
RS232C Din 8pin

connectors can deliver these signals
HDTV 720p, 1080i?

TOSHIBA TLP XC3000/A
