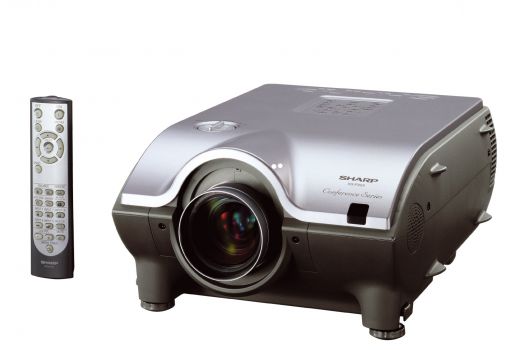

Sharp XG P25XU | Sharp Notevision XG P25XE/U

Customer review

4 from 5 Stars 1 Review

✎ Help other users and share your review.

Offer Ads

Discover other popular projectors on Amazon!

Model Overview

The Sharp XG P25XE is a LCD projector offering 4000 ANSI lumens, a contrast of 600:1 and a resolution of XGA 1024 x 768. According to Sharp, the included lamp lasts up to 1500 hours.
The specifications indicate lens shift optics, allowing the image to be physically shifted without introducing digital image artifacts. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Projection Calculator.
A look at the light output reveals: The 4000 ANSI lumens are sufficient to illuminate an image width of up to 551 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 367 cm.
This model dates back to 2002 and is no longer part of Sharp's current product range.

Display Type

3 x 1,3" LCD TFT Panel
XGA 4/3 Liquid Crystal Display

Ansi-Lumen

Projector

4000

Screen

1333 Lux (200 cm Screen width)

Contrast

600:1 full on/off

Black Level

6,6667 min. Lumen

2,233 min. Lumen

Lens shift

Vert.: +50% -0%

Lens shift		50%	75cm
		0%	0cm

+ Projector

Resolution

XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed

Video Modes

HDTV (525i/525P/750P/1125i)

Application

Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens).

Light Source

270W UHP Lamp
Article Nr.: RLMPFA002WJZZ

Order Lamp
61,38 - 140,43 €

Light Life

1500 h.

Operating Costs

Calculated brightness quality
The screen width may also be larger. Perfect

360 - 480 cm


	Lux:	1333 Lux
	Contrast:	600:1
	Candela pro m²:	425 cd/m²
	Foot-Lamberts:	124 fL

75 cm

•

Focus

Powered

Zoom

Powered 1,3

Objective

F=1,7-2,4 f=49,2-63,8 mm

Throw Ratio

1,8-2,4:1 show

Audio

2 x 2W Stereo 2 x 4,5 cm

Connections

DVI-I in
D-sub 15pin in und out
Mini Jack in
YUV über BNC
RS232C
Cinch Video in
Cinch Stereo in
Wired Fernbedienung
Mini Jack out
S-Video in

Ceiling Mounting

Yes, is possible.

Power

340W standby 0,7W

Size WxHxD

322 x 188 x 445 mm (12,7"x7,4"x17,5") 26,94 L/dm³

Operating Noise

37 / 35 dB in Eco Mode

Shift: 75 cm

Weight

9,70 kg / 21,38 lbs.

Keystone

Illumination

85%

Frequenz

H-sync: 15-126 kHz
V-sync: 43-200 Hz
Range max.: 230 MHz

Foot-Lamberts

124 fL / max. 551 cm screen width

Candela m²

425 cd/m²

Features

Lens shift Funktion

Freeze

Eco Mode

Kensington Slot

Gamma correction

Digital image shift

Password protection

Crestron®-Software compatible.

digital zoom

power-saving mode lamp reduction

Screen Mirroring

In Comparison

The Sharp XG P25XE/U compared to others not current "Stationary" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

1000 (From: 2536)

Optional accessories
	Osram bulb only	NLMP3692	101,97 €
	lamp ruby	Ruby-LMP3692	140,43 €
	lamp Original	BQC-XGP25X//1 / AN-P25LP	EOL €
	Compatible lamp	LMP-K3692	61,38 €
	Universal Remote	Fernb-uni-V3	22,31 €
	air filter Original	PFILD0080CEZZ	EOL €

Optional Lenses

Name	Ratio	Distance	Shift V	Shift H	Zoom
AN-P48EZ	4.6-6.1:1	920-1220 m			Powered
AN-T6EZ	2.5-3.3:1	500-660 m	50%		Powered
AN-W6EZ	1.3-1.7:1	260-340 m	50%		Powered
AN-P9MX	0.9:1	180 m			No Zoom

Status

2002 Discontinued (EOL) // Last update of the data: 2026-06-09

Data

Sharp Website

Product Sheet

Product Sheet english HC

Product Sheet english UK (1)

Product Sheet english UK (2)

Product Sheet USA

Press release

User Manual english (4.12 MB)

Popular Alternatives

4000 ANSI-Lumen


Model	ELH500E	AL-MH525	AL-MH625	PT-RQ6L	XP721Q-W
Ansi-Lumen	5000	5200	6200	6500	7200
Specifications	HDTV Laser Lens-Shift HDBaseT LAN	HDTV Laser Lens-Shift LAN 3D	HDTV Laser Lens-Shift LAN 3D	HDTV Laser HDBaseT Android LAN	HDTV Laser Lens-Shift HDBaseT LAN
Compare	Compare	Compare	Compare	Compare	Compare

All: 4 from 5 Stars 1 Reviews

Autor: Felix 22.05.10

4 Stars

I own the Sharp XG P25X

+normally bright (4000Ans. stop :)
+transportable (I have it in a case padded with foam, it can be transported well and safely)
+all necessary connection options (such as RGBHV and HDMI)

-it is unfortunately quite loud so for conferences although it is a conference projector it is not highly recommended for my applications at parties or events it is super
