Model Overview

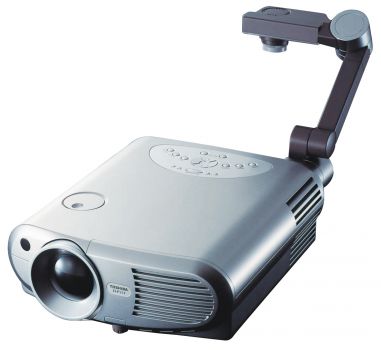

A projector from Toshiba is the TLP 551, whose LCD model delivers 1100 ANSI lumens, a resolution of XGA 1024 x 768 and a contrast of 400:1. According to Toshiba, the included lamp lasts up to 1500 hours.
Regarding projection size, the value of 1100 ANSI lumens allows for an image width of up to 289 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 193 cm.
The model is currently no longer actively offered on the market by the manufacturer.

Display Type

3 x 0,7" TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array

Ansi-Lumen

Projector

1100

Screen

367 Lux (200 cm Screen width)

Contrast

400:1 full on/off

Black Level

2,7500 min. Lumen

0,924 min. Lumen

Offset

Resolution

XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed

Video Modes

NTSC, PAL, SECAM Pal 60 NTSC 4,43

Application

Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.

Light Source

160W NSH Lamp
Article Nr.: TLPL55

Order Lamp
55,24 - 118,12 €

Light Life

1500 h.

Operating Costs

Calculated brightness quality Good (1.8)

204 - 244 cm


	Lux:	367 Lux
	Contrast:	400:1
	Candela pro m²:	116 cd/m²
	Foot-Lamberts:	34 fL

•

Focus

Manual

Zoom

Manual 1,2

Objective

F=1,8 f=14,5-17,4 mm

Throw Ratio

1,02-1,22:1 show

Audio

Built-in loudspeaker

Connections

Cinch Video in
Cinch Stereo Eingang
S-Video in
D-sub 15pin in
RS232C

Ceiling Mounting

Yes, is possible.

Power

Size WxHxD

260 x 95,5 x 352 mm (10,2"x3,8"x13,9") 8,69 L/dm³

Operating Noise

Weight

3,90 kg / 8,6 lbs.

Keystone

Illumination

Frequenz

Foot-Lamberts

34 fL / max. 289 cm screen width

Candela m²

116 cd/m²

Features

Picture-in-Picture

Camera

Screen Mirroring

In Comparison

The Toshiba TLP 551 compared to others not current "Standard-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

3254 (From: 7737)

Optional accessories
	lamp ruby	Ruby-LMP4091	118,12 €
	lamp Original	TLPL55	EOL €
	Compatible lamp	LMP-K4091	55,24 €
	Universal Remote	Fernb-uni-V3	22,31 €
	ceiling bracket length: 100-120mm	Halterung100	47,86 €
	Airfilter universal	uni3mm	18,15 €

Status

- Discontinued (EOL) // Last update of the data: 2026-06-09

Data

Toshiba Website

Product Sheet

Product Sheet english

Product Sheet english HC

User Manual english (2.13 MB)
