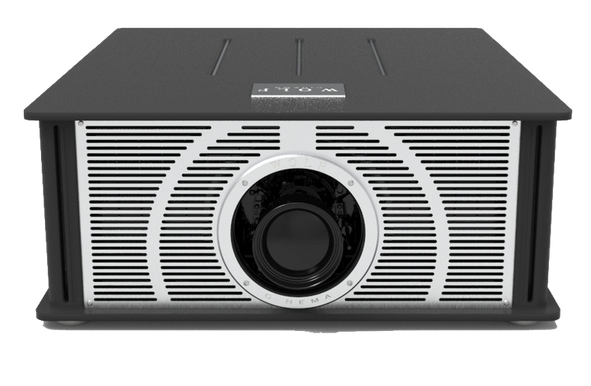

The equipment of the Wolf Cinema UXT-3500 projector includes 8500 ANSI lumens, a contrast of 2000000:1 with a WUXGA 1920 x 1200 display. This is a laser projector with a light source designed to last for 30000 hours, covering an estimated 20.5 years based on a 4-hour daily runtime. In terms of image alignment, the model offers an optical lens shift function, allowing the image to be shifted without quality loss. The exact adjustment leeway can be calculated in the Distance Calculator. Looking at practical performance, up to 937 cm can be illuminated with 8500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 625 cm. Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D, meaning standard Blu-ray formats are processed effortlessly. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances.
Display Type
1 x DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) | | 2D-zu-3D Video Converter
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
BluHD™ Laser technology
Light Life
30000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3778 Lux
Contrast:
2000000:1
Candela pro m²:
1203 cd/m²
Foot-Lamberts:
351 fL
113 cm
•
Focus
Powered
Zoom
Powered
Objective
optional
Throw Ratio
optional
Audio
Nein
Connections
HDMI 2.0 in
USB in
RS232C Din 9 pin in
RJ45 in
HDBaseT in
12V Trigger out
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion High Dynamic Range (HDR) Lan network compatible. Crestron®-Software compatible. AMX Extron IPLink
Real Full HD 3D
Wolf Cinema Website
Product Sheet english
