Brief Introduction
Beta 2.5 |

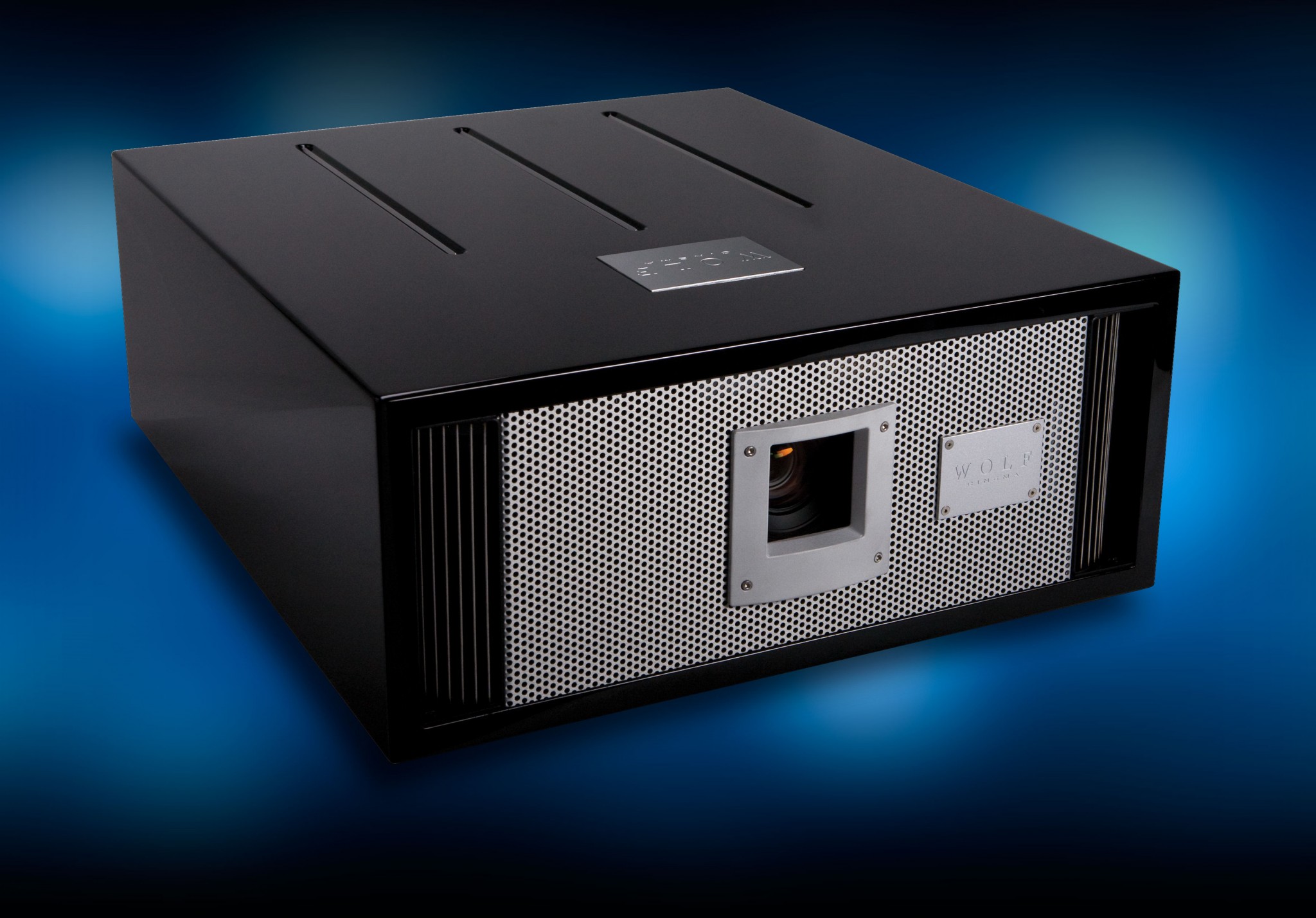

The SDC 15 Ultra4K 3D DILA projector from Wolf Cinema has 1900 Ansi lumens, a contrast of 150000:1 and a UHD (4K2K) 3840 x 2160 resolution. The lamp life is specified by the manufacturer as 4500 hours, which is over 6.2 years if enjoyed for two hours a day. The built-in lens shift function provides freedom when setting up. An image width of up to 443 cm is possible, as the projector has 1900 Ansi lumens. However, if room light is available, the picture should be a maximum of 295 cm wide. Playback of 1080P and 4K as well as 3D is also no problem for the projector, which means that all Blu-ray formats currently available can be recognized by the projector. At just 20 decibels of operating noise, the model is already very quiet compared to others. The projector was launched in 2016 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,7" DILA Chip
HDTV 16/9 Direct-Drive Image Light Amplification (D-ILA)
|
| Ansi-Lumen |
Projector |
1900 |
Screen |
844 Lux (200 cm Screen width) |
| Contrast |
150000:1 full on/off |
150000:1 full on/off
|
| Black Level |
0,0127 min. Lumen |
0,006 min. Lumen |
| Lens shift |
Vert.: +/-80% Hori.: +/-35%
|
| Resolution |
UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
HD4K 4096 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
|
| Application |
High-End Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
265W Lamp
Article Nr.: WC-LPU265
|
|
| Light Life |
4500 h. |
| Operating Costs |
-
|
|
290 - 556 cm
|
 |
|
Lux: |
844 Lux |
|
Room light max.: |
169 Lux |
|
Candela pro m²: |
267 cd/m² |
|
Foot-Lamberts: |
78 fL |
|
 |
| 90 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,92 |
| Objective |
- |
| Throw Ratio |
1,45-2,78:1 show |
| Audio |
Nein |
| Connections |
2 x HDMI 2,0 mit HDCP 2.2 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
380W |
| Size WxHxD |
496 x 224 x 572 mm (19,5"x8,8"x22,5") 63,55 L/dm³
|
| Operating Noise |
20dB |
Shift: 90 cm
|
Shift: 70 cm
|
|
Shift: 70 cm
|
| |
|
|
| Weight |
28,00 kg / 61,73 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
78 fL
/ max. 443 cm screen width |
| Candela m² |
267 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Gamma correction
Remote control with backlight
Lan network compatible.
External video processor included.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Wolf Cinema SDC 15 Ultra4K compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
15 |
Weight: |
|
41 |
| Contrast: |
|
9 |
dB: |
|
97 |
| Black level: |
|
100 |
Power cons.: |
|
87 |
| Picture Total Points: | 41 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
15 |
| Ranking: |
290 (From: 499) |
|
|
|
| Please note |
Since the projector does not have a 4K D-ILA chip, but instead achieves 4K with E-shift, we indicate the actual panel resolution.
|
|
|
| Status |
2016 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2016-01-25 11:18:30
|
