Brief Introduction
Beta 2.5 |

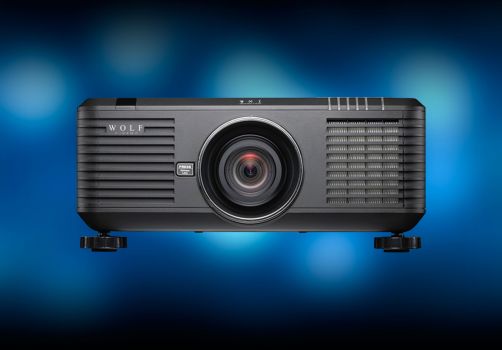

With the SDC 30, manufacturer Wolf Cinema offers a DLP projector with HDTV 1920 x 1080 resolution and a contrast of 5000:1. With the lens shift function, the projector can be positioned very freely. An image width of up to 880 cm is possible as the projector has 7500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 587 cm. Video signals 1080P and 3D are also no problem for the projector. The projector was launched in 2015 and is no longer sold by the manufacturer.
|
| Display Type |
1 x 0,95" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
7500 |
Screen |
3333 Lux (200 cm Screen width) |
| Contrast |
5000:1 full on/off |
5000:1 full on/off
|
| Black Level |
1,5000 min. Lumen |
0,667 min. Lumen |
| Lens shift |
Vert.: +50% -0% Hori.: +/-10%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
2 x 350W Lamp
|
|
| Light Life |
2000 h. 2500 h. in Eco Mode |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
3333 Lux |
|
Room light max.: |
667 Lux |
|
Candela pro m²: |
1062 cd/m² |
|
Foot-Lamberts: |
310 fL |
|
 |
| 56 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
HDMI 1.4a in
DVI-D in
D-sub 15pin in und out
Cinch Video in
S-Video in
USB in
RS232C Din 9 pin in
RJ45 in
12V Trigger out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
870 / 660W in Eco Mode |
| Size WxHxD |
510 x 230 x 540 mm (20,1"x9,1"x21,3") 63,34 L/dm³
|
| Operating Noise |
43 / 38 dB in Eco Mode |
Shift: 56 cm
|
Shift: 20 cm
|
|
Shift: 20 cm
|
| |
|
|
| Weight |
20,00 kg / 44,09 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-35°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-108 kHz
V-sync: 48-120 Hz
|
| Foot-Lamberts |
310 fL
/ max. 880 cm screen width |
| Candela m² |
1062 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Wolf Cinema SDC 30 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
74 |
Weight: |
|
93 |
| Contrast: |
|
1 |
dB: |
|
92 |
| Black level: |
|
96 |
Power cons.: |
|
89 |
| Picture Total Points: | 57 |
Projector Total Points: | 91 |
|
| Popularity Top 100 |
|
| Points: |
|
36 |
| Ranking: |
471 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2025-03-03
