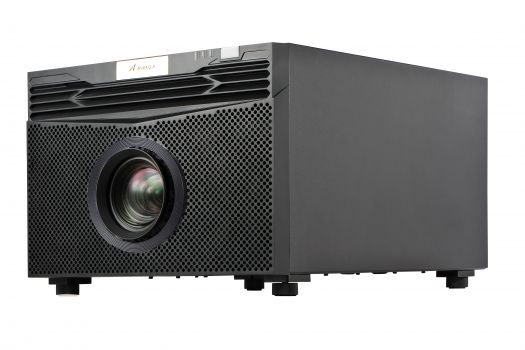

The WU9 model is a 3D-DLP projector from AVANZA, intended for Stationary applications, offering 7200 ANSI lumens, a contrast of 10000:1 at WUXGA 1920 x 1200. The laser technology ensures a specified light source lifespan of up to 20000 hours – equivalent to a usable life of 13.7 years at 4 hours a day. In terms of image alignment, the model offers an optical lens shift function, allowing the image to be shifted on the projection surface without any loss of quality. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Distance Calculator. Regarding projection size, the value of 7200 ANSI lumens allows for an image width of up to 862 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 575 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. The projector was released in 2015 and is officially no longer distributed by AVANZA.
Display Type
1 x 0,67" DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3200 Lux
Contrast:
10000:1
Candela pro m²:
1018 cd/m²
Foot-Lamberts:
297 fL
68 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
HDMI in
2 x D-sub 15pin in
Cinch Video in
S-Video in
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting
Yes, is possible.
Power
800W
Size WxHxD
551 x 290 x 430 mm (21,7"x11,4"x16,9") 68,71 L/dm³
Full HD 1080P compatible
