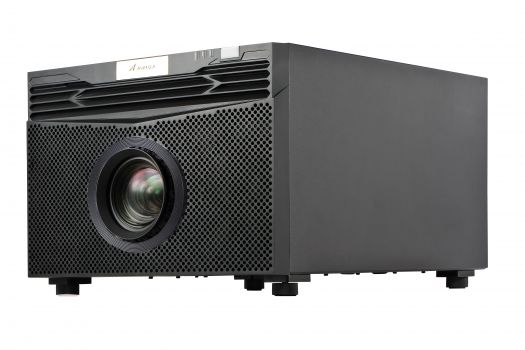

The projector WU8 by AVANZA operates as a 3D-DLP device with 6700 ANSI lumens, a WUXGA 1920 x 1200 resolution and a contrast of 10000:1. The laser technology ensures a specified light source lifespan of up to 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible. An integrated lens shift provides significant leeway for placement. The lens can be adjusted to precisely align the image even with off-center installations. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projection Calculator. Regarding projection size, the value of 6700 ANSI lumens allows for an image width of up to 832 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 555 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since entering the market in 2015, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,67" DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2978 Lux
Contrast:
10000:1
Candela pro m²:
949 cd/m²
Foot-Lamberts:
277 fL
68 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
HDMI in
2 x D-sub 15pin in
Cinch Video in
S-Video in
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting
Yes, is possible.
Power
691W
Size WxHxD
551 x 290 x 430 mm (21,7"x11,4"x16,9") 68,71 L/dm³
Full HD 1080P compatible
AVANZA Website
Product Sheet english HC
