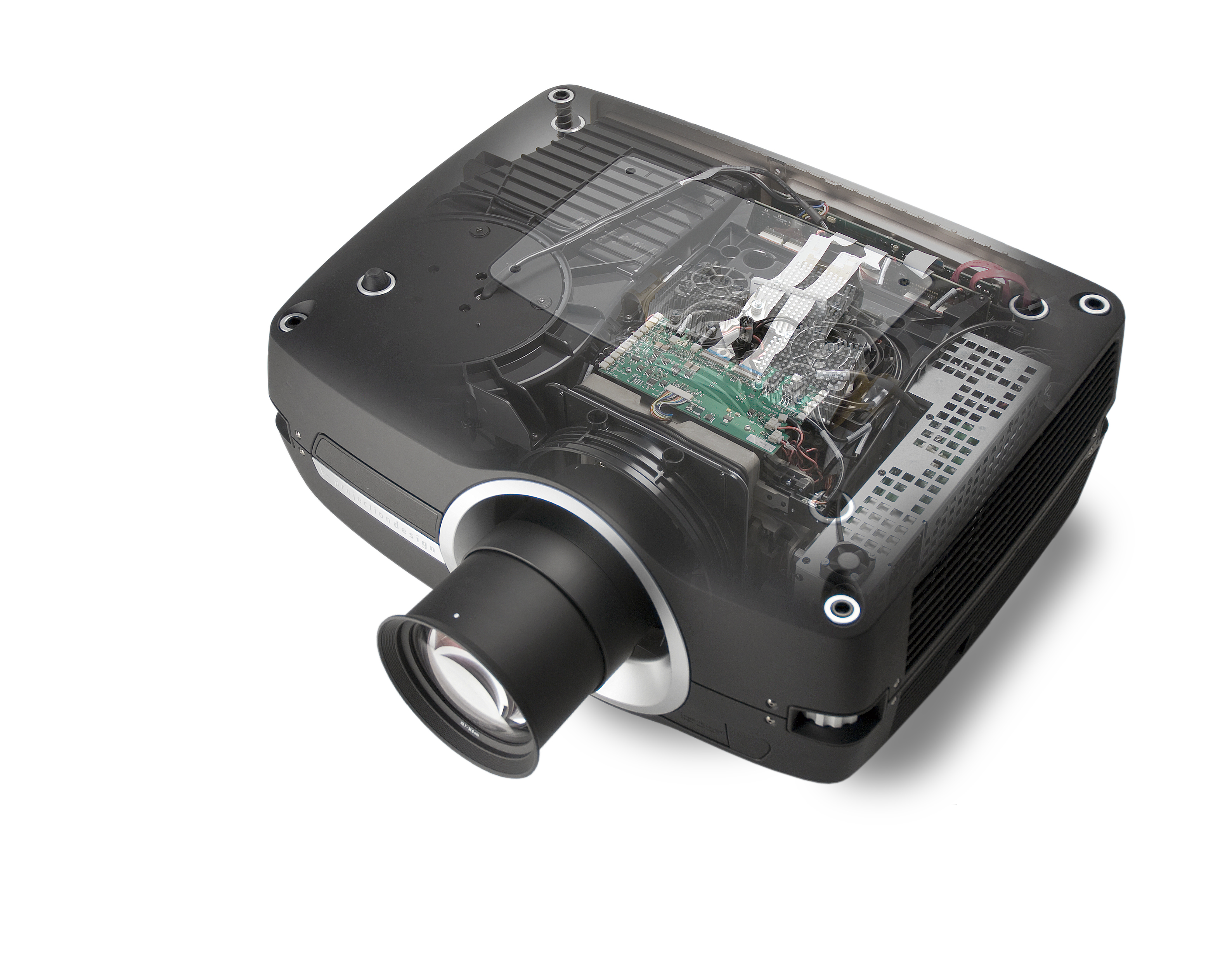

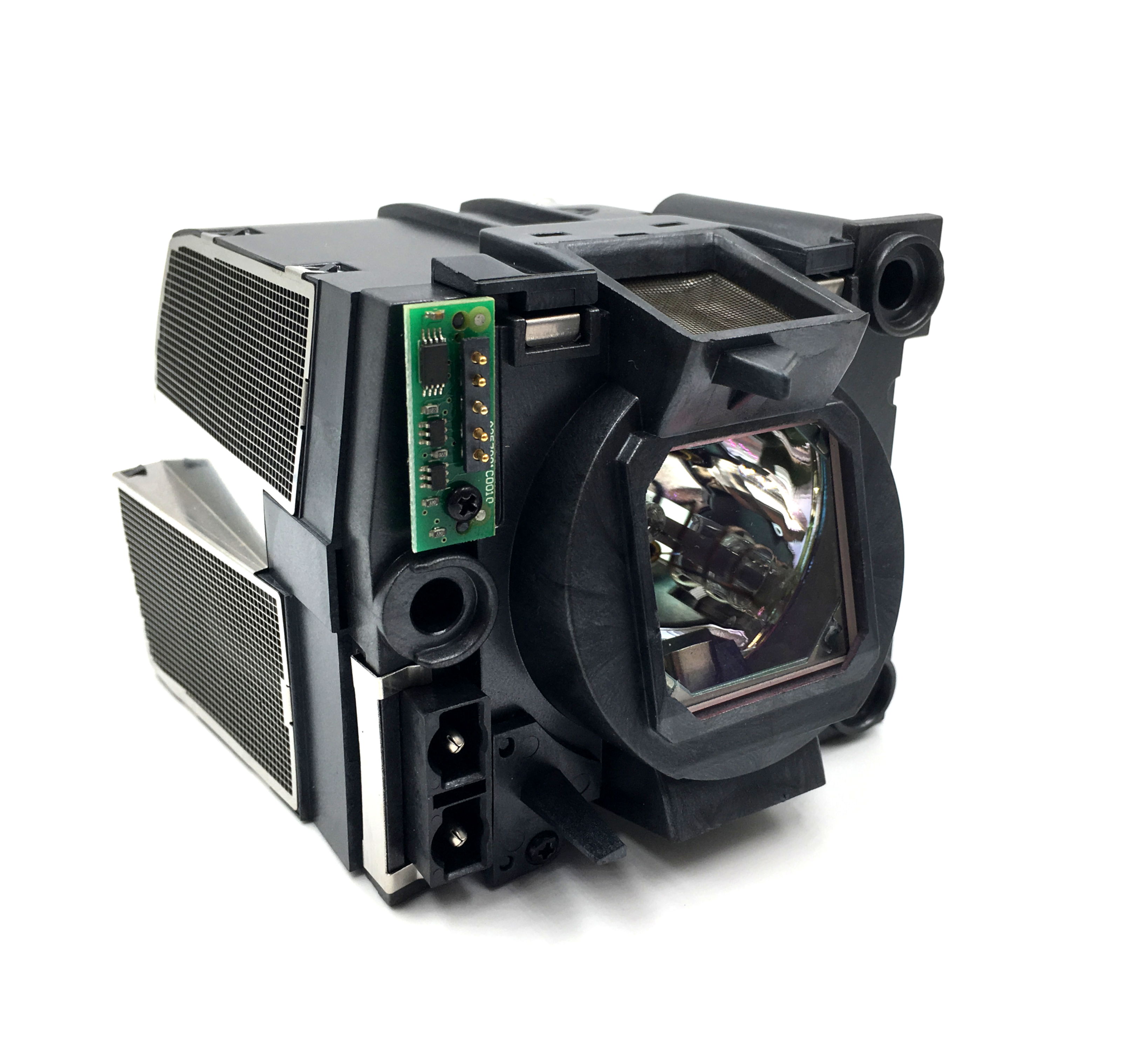

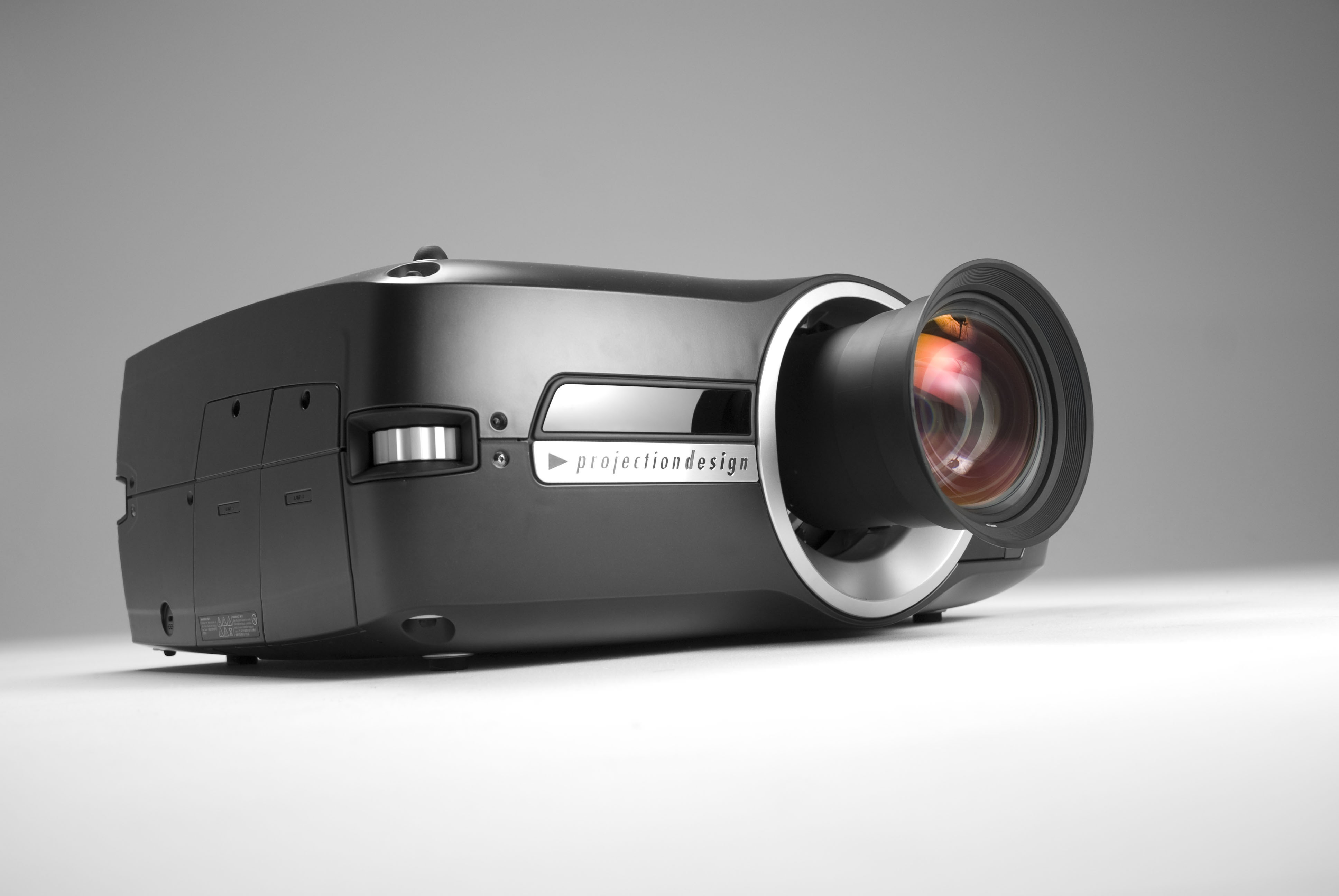

As a projector for the Event sector, the projectiondesign F82 1080p is equipped with 10000 ANSI lumens, a HDTV 1920 x 1080 resolution and a contrast of 15000:1. In operating mode, the installed projector lamp offers a lifespan of 2000 hours. The specifications indicate lens shift optics, allowing the image to be physically shifted without introducing digital image artifacts. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Distance Calculator. Looking at practical performance, up to 1016 cm can be illuminated with 10000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 677 cm. Regarding signal processing, the model is compatible with incoming 1080P content. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Since entering the market in 2010, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
3 x DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
4444 Lux
Contrast:
15000:1
Candela pro m²:
1415 cd/m²
Foot-Lamberts:
413 fL
70 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
HDMI 1.3 in
DVI-I mit HDCP in
5 BNC RGBHV in
YUV in
S-Video in
Cinch Video in
RS232C Din 9 pin in
RJ45 in
2 x 12V Trigger out
Weitere Anschlüsse optional.
Ceiling Mounting
Yes, is possible.
Power
1050W
Size WxHxD
604 x 250 x 505 mm (23,8"x9,8"x19,9") 76,26 L/dm³
Operating Noise
-
Shift: 70 cm
Shift: 89 cm
Shift: 89 cm
Weight
24,00 kg / 52,91 lbs.
Keystone
-
Illumination
-
Frequenz
H-sync: 15-150 kHz V-sync: 48-190 Hz Range max.: 205 MHz
Full HD 1080P compatible Lens shift Funktion Eco Mode Kensington Slot 24/7 continuous operation capable Remote control with mouse control Lan network compatible.
Full HD 1080P compatible
