Brief Introduction
Beta 2.5 |

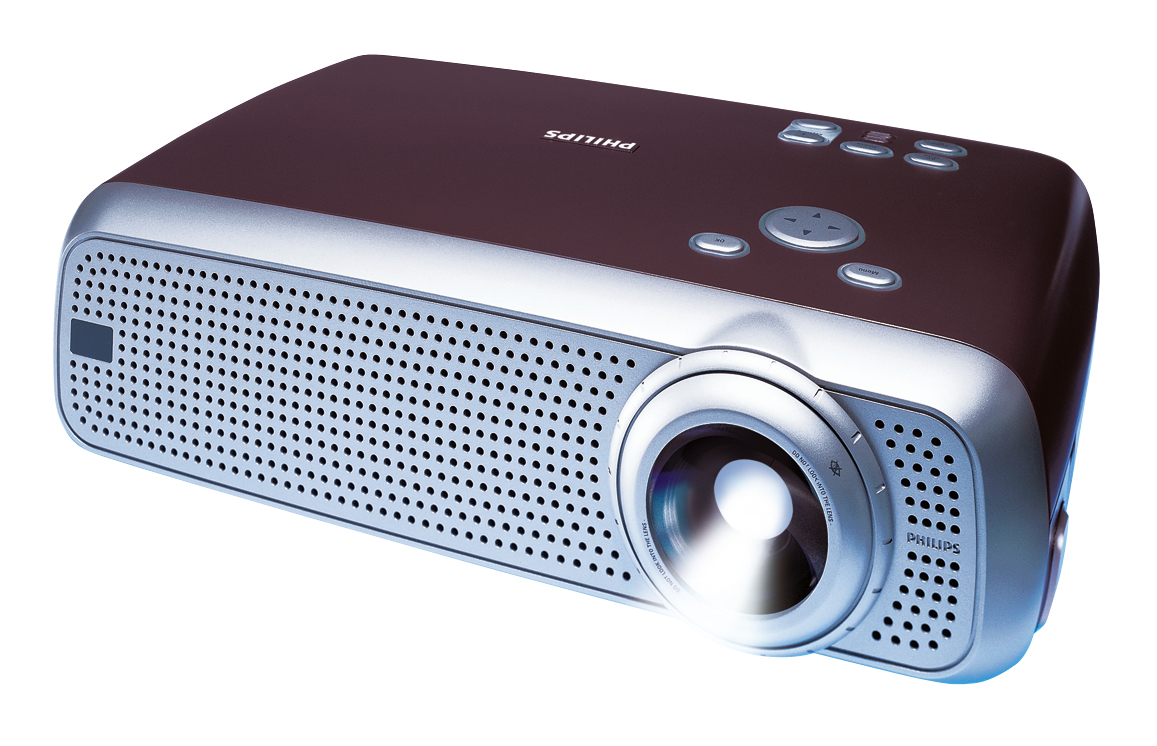

The Philips csmart SV1 / SV2 model is an LCD projector with SVGA 800 x 600 resolution and a contrast of 325:1. The manufacturer specifies a lamp life of 6000 hours, which is over 8.2 years if enjoyed for two hours a day. Thanks to the brightness of 1000 Ansi lumens, a picture width of 275 cm is possible. In room light, the picture should be max. 183 cm wide. The model is no longer offered by Philips.
|
| Display Type |
3 x 0,9" LCD TFT Panel
SVGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
1000 |
Screen |
333 Lux (200 cm Screen width) |
| Contrast |
325:1 full on/off |
325:1 full on/off
|
| Black Level |
3,0769 min. Lumen |
1,034 min. Lumen |
| Offset |
-
|
| Resolution |
SVGA 800 x 600
480.000 Pixel |
| Video Modes |
NTSC, PAL, SECAM Pal 60 NTSC 4,43 |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

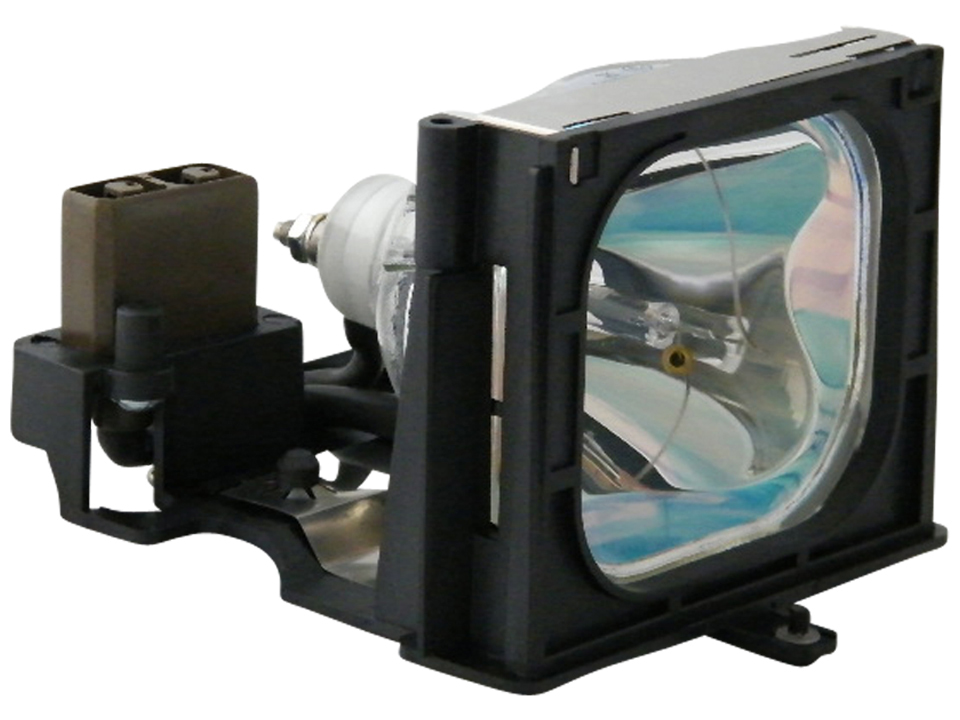

120W UHP Lamp
Article Nr.: LCA3115
|
|
| Light Life |
6000 h. |
| Operating Costs |
|
|
400 - 510 cm
|
 |
|
Lux: |
333 Lux |
|
Room light max.: |
67 Lux |
|
Candela pro m²: |
106 cd/m² |
|
Foot-Lamberts: |
31 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,28 |
| Objective |
F=2,0-2,2 f=36,5-46,6 mm |
| Throw Ratio |
2-2,55:1 show |
| Audio |
- |
| Connections |
VGA Aus. Eingang
S Video Eingang
Cinch Video in
Mini Jack Eingang
USB Eingang |
| Ceiling Mounting |
Yes, is possible. |
| Power |
180W |
| Size WxHxD |
328 x 102 x 226 mm (12,9"x4"x8,9") 7,56 L/dm³
|
| Operating Noise |
32dB |
|
| Weight |
3,60 kg / 6,61 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15-108 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
31 fL
/ max. 275 cm screen width |
| Candela m² |
106 cd/m² |
| Features |
 Freeze
Kensington Slot
Remote control with laser pointer und mouse control
|
|
- |
In Comparison
The Philips csmart SV1 / SV2 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
10 |
Weight: |
|
83 |
| Contrast: |
|
1 |
dB: |
|
44 |
| Black level: |
|
88 |
Power cons.: |
|
99 |
| Picture Total Points: | 33 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
15 |
| Ranking: |
412 (From: 7662) |
|
|
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-10-17
|
