Brief Introduction
Beta 2.5 |

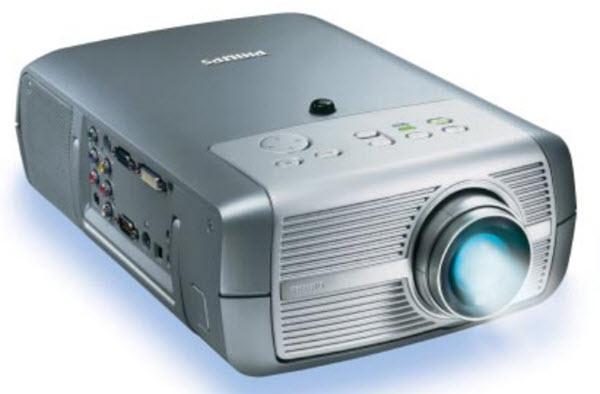

A brief introduction to the Philips cClear Air Brilliance / XG1 Wireless. The standard portable LCD projector has an XGA 1024 x 768 resolution and a contrast of 400:1. A built-in horizontal and vertical keystone correction provides freedom when positioning the projector. Thanks to the brightness of 2600 Ansi lumens, a picture width of 444 cm is possible. In room light, the image should be max. 296 cm wide. It is also Full HD 1080P compatible. The model built in 2003 is no longer offered by Philips.
|
| Display Type |
3 x 0,79" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2600 / 2000 im Eco Mode |
Screen |
867 Lux (200 cm Screen width) |
| Contrast |
400:1 full on/off |
400:1 full on/off
|
| Black Level |
6,5000 min. Lumen |
2,184 min. Lumen |
| Offset |
40% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

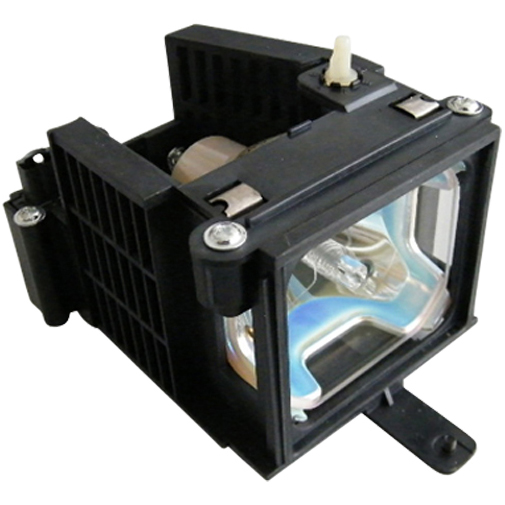

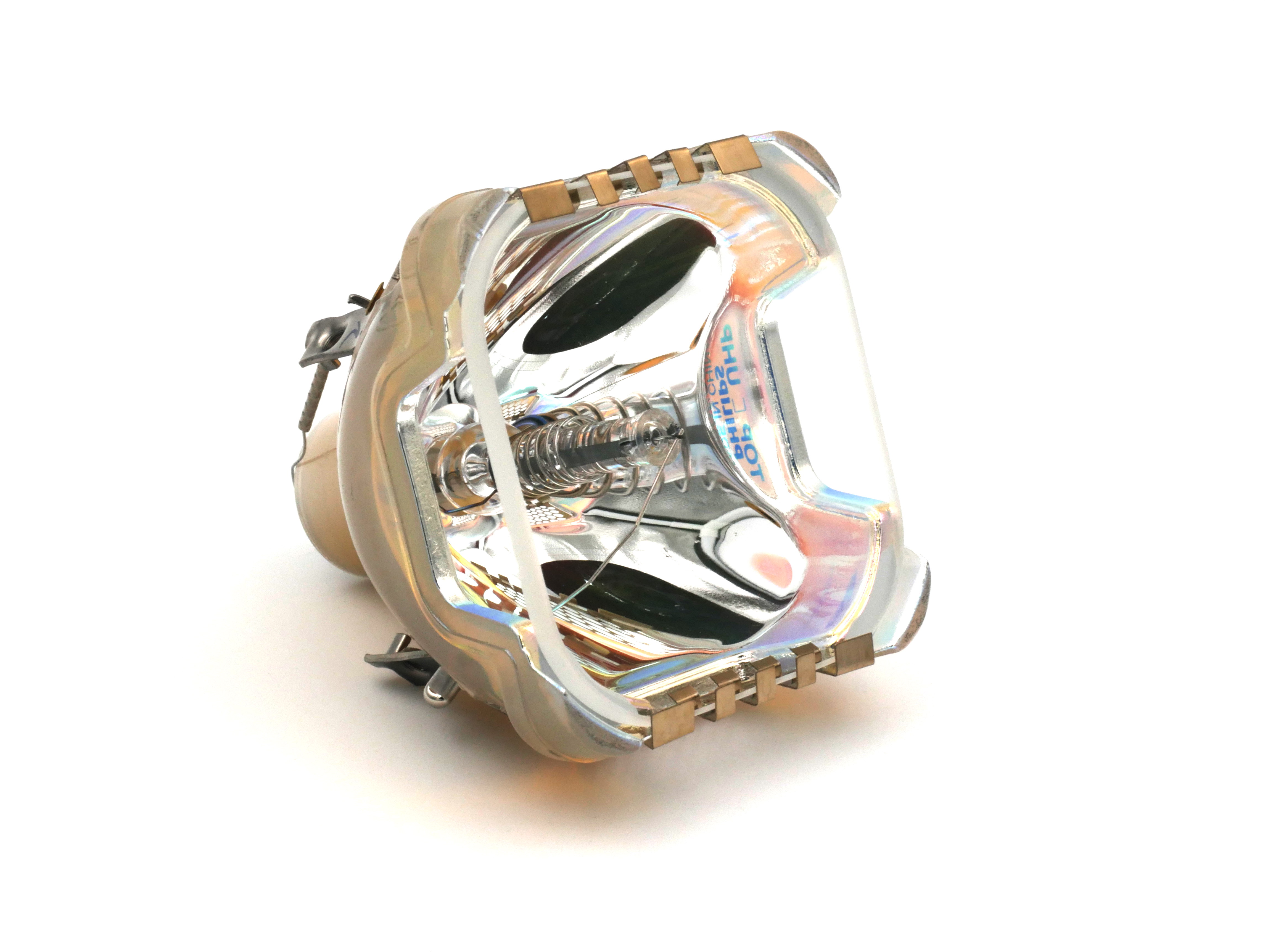

200W UHP Lamp
Article Nr.: LCA 3123
|
|
| Light Life |
2000 h. |
| Operating Costs |
|
|
320 - 390 cm
|
 |
|
Lux: |
867 Lux |
|
Room light max.: |
173 Lux |
|
Candela pro m²: |
278 cd/m² |
|
Foot-Lamberts: |
81 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,19 |
| Objective |
F=1,75-2,1 f=26,7-31,8 mm |
| Throw Ratio |
1,60-1,95:1 show |
| Audio |
6W |
| Connections |
DVI-I in
D-sub 15pin in
YUV in
Chich Video in
Cinch Stereo in
USB Typ B
2 x Mini Jack in 1 x out
PS2
RS232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
250W / 2W standby |
| Size WxHxD |
235 x 121 x 335 mm (9,3"x4,8"x13,2") 9,53 L/dm³
|
| Operating Noise |
33 / 30 dB in Eco Mode |
Key: 329 cm |
Key: 116 cm |
| Key: 116 cm |
| |
|
|
| Weight |
4,10 kg / 8,82 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-20°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-108 kHz
V-sync: 50-120 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
81 fL
/ max. 444 cm screen width |
| Candela m² |
278 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
User logo
Eco Mode
Kensington Slot
Picture-in-Picture
Remote control with laser pointer und mouse control
Lan network compatible.
In der USA wird das Modell als cClear XG1 Wireless bezeichnet.
|
|
- |
In Comparison
The Philips cClear Air Brilliance / XG1 Wireless compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
31 |
Weight: |
|
80 |
| Contrast: |
|
1 |
dB: |
|
41 |
| Black level: |
|
76 |
Power cons.: |
|
98 |
| Picture Total Points: | 36 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
1904 (From: 7662) |
|
|
|
| Please note |
In the USA the model is called cClear XG1 Wireless.
|
|
|
| Status |
2003 Discontinued (EOL) // Last update of the data: 2023-10-17
|
