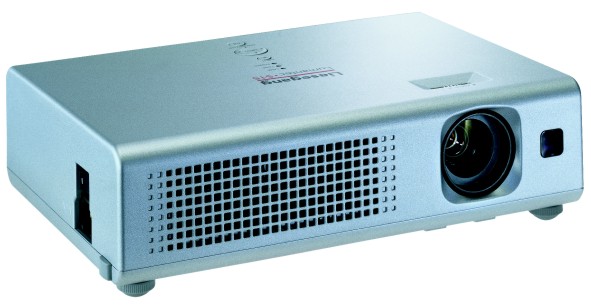

The Lumantec • S15 model from Liesegang combines LCD technology in the Standard-Portabel sector with 1600 ANSI lumens, a contrast of 500:1 and a native SVGA 800 x 600 resolution. The manufacturer specifies a runtime of 2000 hours for this projector's lamp. Regarding projection size, the value of 1600 ANSI lumens allows for an image width of up to 348 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 232 cm. This model dates back to 2005 and is no longer part of Liesegang's current product range.
Display Type
3 x 0,55" LCD TFT Panel mit MLA SVGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
1600 / 1280 im Eco Mode
Screen
533 Lux (200 cm Screen width)
Contrast
500:1 full on/off
500:1 full on/off
Black Level
3,2000 min. Lumen
1,072 min. Lumen
Offset
36% 21 cm under screen top edge →
SCREEN
+Projector
Resolution
SVGA 800 x 600
480.000 Pixel
UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Freeze
