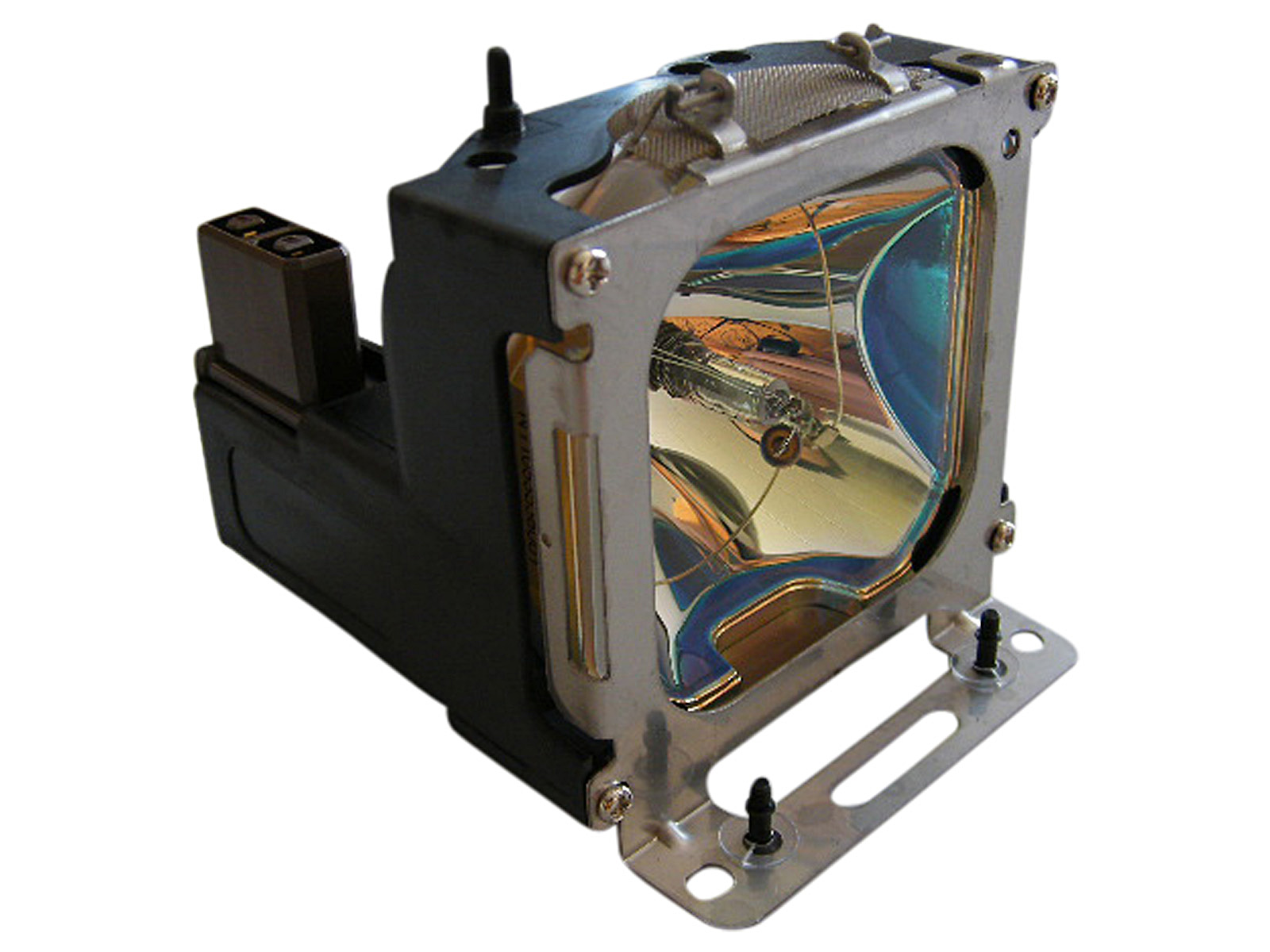

The equipment of the Liesegang dv 550 projector includes 4500 ANSI lumens, a contrast of 300:1 with a XGA 1024 x 768 display. According to Liesegang, the lamp has a durability of 2000 hours. The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projection Calculator. A look at the light output reveals: The 4500 ANSI lumens are sufficient to illuminate an image width of up to 584 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 389 cm. This is a discontinued model that is no longer officially distributed by Liesegang.
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
Full PAL, NTSC und SECAM
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
2 x RGB analog (D-Sub HD)
1 x DVI-D
1 x USB
1 x RS232C
1 x RGB (D-Sub HD)
1 x Video (Cinch)
1 x S-Video (Mini-DIN)
1 x Component (Cinch)
1 x Audio Stereo (Cinch)
2 x Audio Stereo (Miniklinke)
1 x Audio Stereo (Cinch)
Ceiling Mounting
Yes, is possible.
Power
440W / standby 10W
Size WxHxD
289 x 139 x 345 mm (11,4"x5,5"x13,6") 13,86 L/dm³
Operating Noise
39 / 35 dB in Eco Mode
Key: 167 cm
Key: 32 cm
Key: 32 cm
Key: 31 cm
Weight
6,50 kg / 14,33 lbs.
Keystone
Vert.: +/-15° Hori.: +/-5°
Illumination
85%
Frequenz
H-sync: 15-80 kHz V-sync: 50-120 Hz Range max.: 110 MHz
Freeze
