Elmo EDP X210
Image Elmo EDP X210
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Categorized in the Standard-Portabel segment, the EDP X210 projector from Elmo projects with a XGA 1024 x 768 resolution, alongside 2000 ANSI lumens and a contrast of 350:1. According to Elmo, the lamp has a durability of 2000 hours.
The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement.
Looking at practical performance, up to 389 cm can be illuminated with 2000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 259 cm.
This model dates back to 2003 and is no longer part of Elmo's current product range.
Display Type       3 x 0,7" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 2000 / 1600 im Eco Mode
Screen
 667 Lux (200 cm Screen width)
Contrast 350:1 full on/off 350:1 full on/off
Black Level 5,7143 min. Lumen 1,922 min. Lumen
Offset 45% 7 cm under screen top edge →
SCREEN
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM, PAL60, S-video
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.

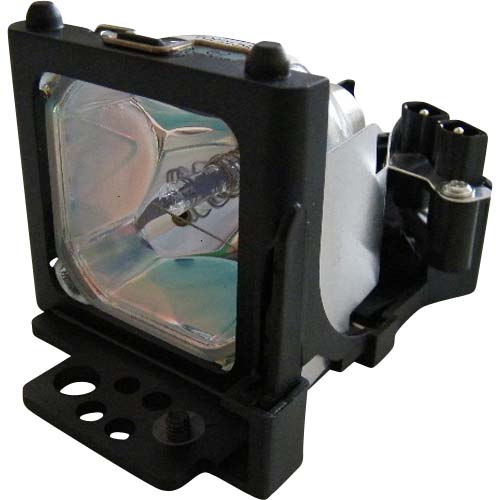

Light Source 150W UHB / 130W im Eco Mode Lamp
Article Nr.: 2100 9392
Order Lamp
55,24 - 103,23 €
Light Life 2000 h. 4000 h. in Eco Mode
Operating Costs -
Calculated brightness quality Perfect
300 - 362 cm
Lux: 667 Lux
Contrast: 350:1
Candela pro m²: 212 cd/m²
Foot-Lamberts: 62 fL
68 cm

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,3
Objective F=1,7-1,9 f=36,8-47,8 mm
Throw Ratio 1,50-1,81:1 show
Audio 2 x 1W
Connections D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
USB für Maus in
RS232C
PS2 Serial in
Ceiling Mounting Yes, is possible.
Power 240W
Size WxHxD 295 x 87,5 x 231 mm (11,6"x3,4"x9,1") 5,93 L/dm³
Operating Noise 38 / 33 dB in Eco Mode
Key: 148 cm
Key: 26 cm
Key: 26 cm
Key: 12 cm
Weight 2,72 kg / 6 lbs.
Keystone Vert.: +/-15°
Hori.: +/-5°
Illumination -
Frequenz H-sync: 15-91 kHz
V-sync: 50-120 Hz
Foot-Lamberts 62 fL / max. 389 cm screen width
Candela m² 212 cd/m²
Features Freeze
Blank (Black screen button)
User logo
Eco Mode
Kensington Slot
Gamma correction
Password protection
Remote control with mouse control
Overscan adjustable
Digital zoom 4x
Screen Mirroring -
In Comparison
The Elmo EDP X210 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
23 Weight:
87
Contrast:
1 dB:
28
Black level:
79 Power cons.:
98
Picture Total Points:34 Projector Total Points:71
Popularity Top 100
0 popularity points 2 popularity points 1 popularity points 1 popularity points 2 popularity points 3 popularity points
Points:
3
Ranking: 6284 (From: 7736)
Optional accessories
bulb only NLMPf9315114,82 €
lamp ruby Ruby-LMPf9315103,23 €
lamp Original2100 9392EOL €
Compatible lamp LMP-K900013155,24 €
remote control OriginalHL02881- R016F / HL03032 - R017H / HL0248325,29 €
air filter OriginalMU01691EOL €
ceiling bracket length: 100-120mmHalterung10047,86 €
Status 2003 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Elmo Website
Product Sheet english HC
Product Sheet japanisch
