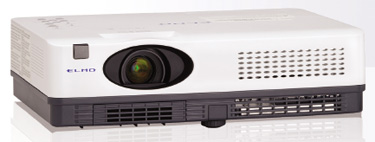

This projector from Elmo utilizes LED-LCD technology, achieving 2600 ANSI lumens and a contrast of 500:1 at a resolution of XGA 1024 x 768. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary. A look at the light output reveals: The 2600 ANSI lumens are sufficient to illuminate an image width of up to 444 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 296 cm. This model dates back to 2010 and is no longer part of Elmo's current product range.
Display Type
3 x 0,55" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
2600 / 1606 im Eco Mode
Screen
867 Lux (200 cm Screen width)
Contrast
500:1 full on/off
500:1 full on/off
Black Level
5,2000 min. Lumen
1,744 min. Lumen
Offset
40% 15 cm under screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Freeze Blackboard Modus User logo Eco Mode Automatic and manual vertical keystone correction Kensington Slot Gamma correction Password protection PJLink™
Freeze
