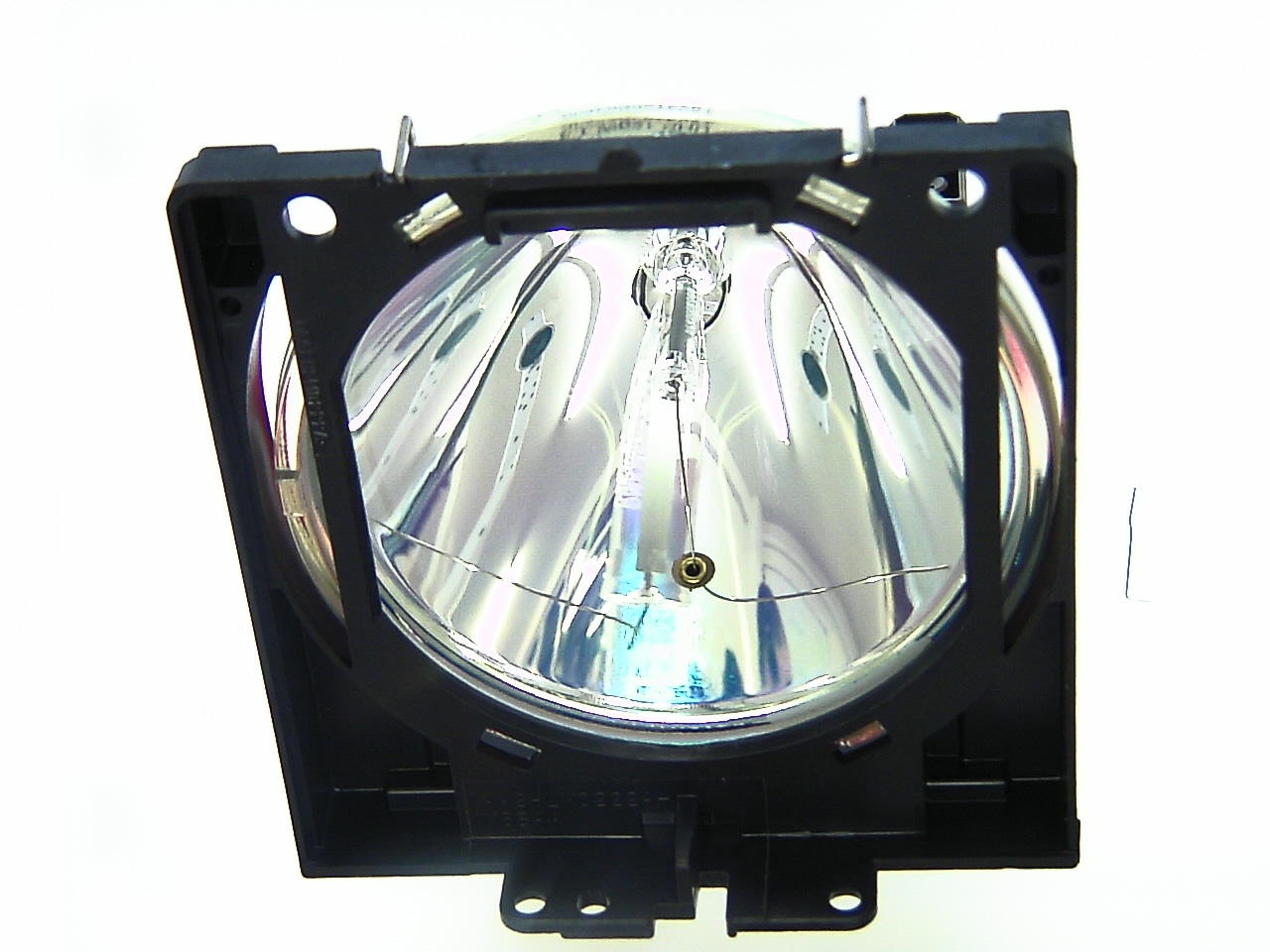

This projector is named EDP 3600, originates from Elmo, and its data sheet shows 1500 ANSI lumens, a contrast of 250:1 and a resolution of SVGA 800 x 600. According to Elmo, the included lamp lasts up to 1000 hours. Regarding projection size, the value of 1500 ANSI lumens allows for an image width of up to 337 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 225 cm. This device is no longer manufactured and has been removed from Elmo's current lineup. Note: According to our information, replacement lamps (original or generic) are no longer available for this projector.
SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed
Video Modes
NTSC, PAL, SECAM Pal 60 NTSC 4,43
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Small screen width, rooms with very little ambient light below 50 lumens.
Input:
RGB x 2: mini D-sub 15-pin Audio for RGB x 2: stereo minim jack Video x1: S-video (priority) & RCA jack Output:
Terminals: RGB x1: mini D-sub 15-pin Video x1: RCA jack Audio x1: RCA jack ( RS232C Control Terminal: D-sub 9-pin x1
Remote control with laser pointer
