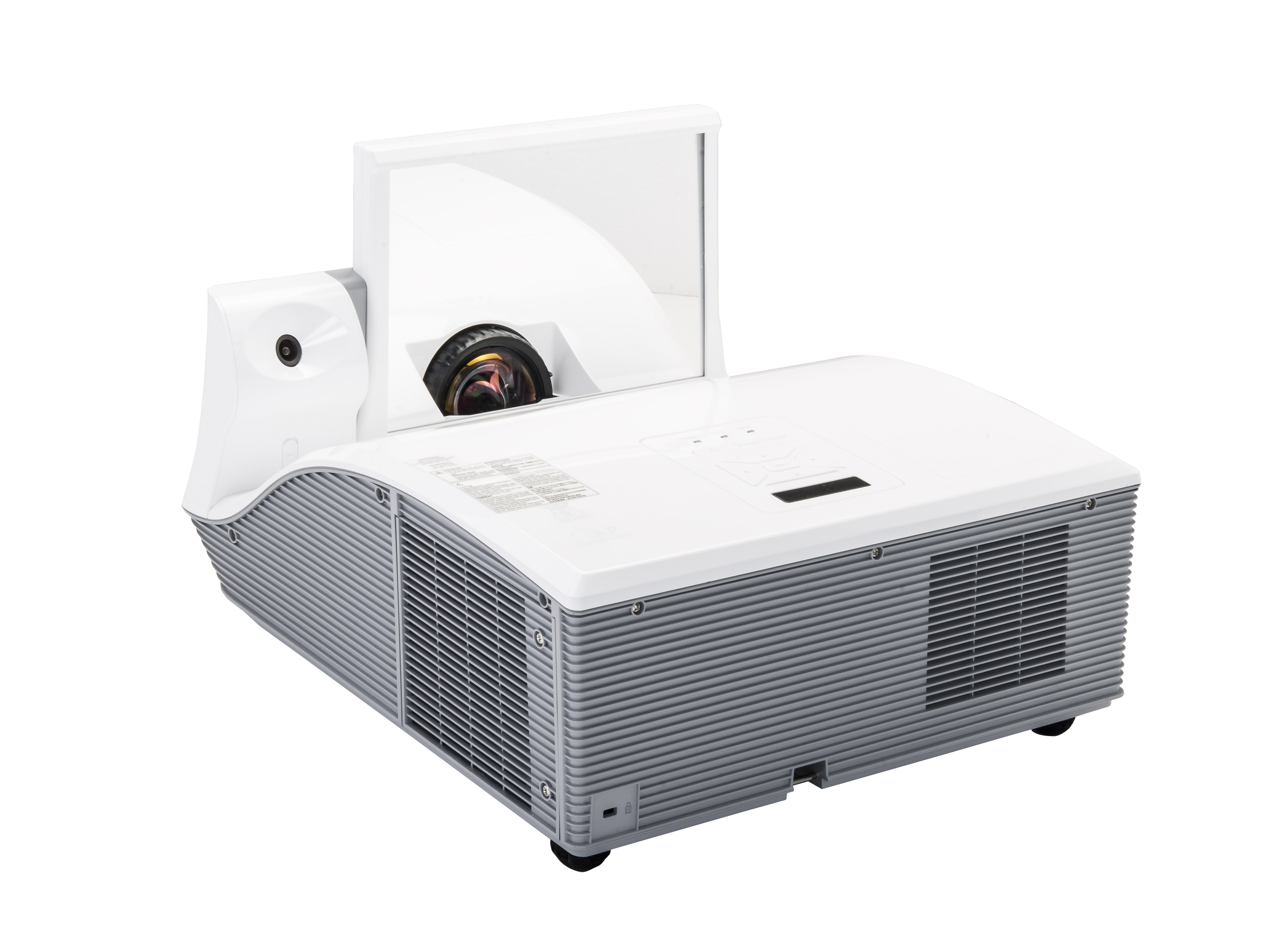

Equipped with DLP technology, the Kindermann KXD480W active offers 3100 ANSI lumens, a contrast of 8000:1 and is designed as a versatile projector. The manufacturer lists the lamp life at 3000 hours. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. Accurate distances are provided by the Distance Calculator. A look at the light output reveals: The 3100 ANSI lumens are sufficient to illuminate an image width of up to 566 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 377 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Specifically for the educational or business sector, an interactive whiteboard function is also integrated. The projector was released in 2014 and is officially no longer distributed by Kindermann. In our projector directory, the device still generates high interest.
Display Type
1 x 0,65" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3100 / 2500 im Eco Mode
Screen
1240 Lux (200 cm Screen width)
Contrast
8000:1 full on/off
8000:1 full on/off
Black Level
0,3875 min. Lumen
0,155 min. Lumen
Lens shift
Vert.: +65% --60%
Lens shift
5%
6cm
+
Projector 13 cm over screen top edge.
Resolution
WXGA 1280 x 800
1.024.000 Pixel UXGA 1600 x 1200 compressed
Whiteboard | Training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Calculated brightness quality The screen width may also be larger. Perfect
70 cm (no Zoom)
Lux:
1240 Lux
Contrast:
8000:1
Candela pro m²:
394 cd/m²
Foot-Lamberts:
115 fL
81 cm
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
0,35:1
Audio
1 x 10W

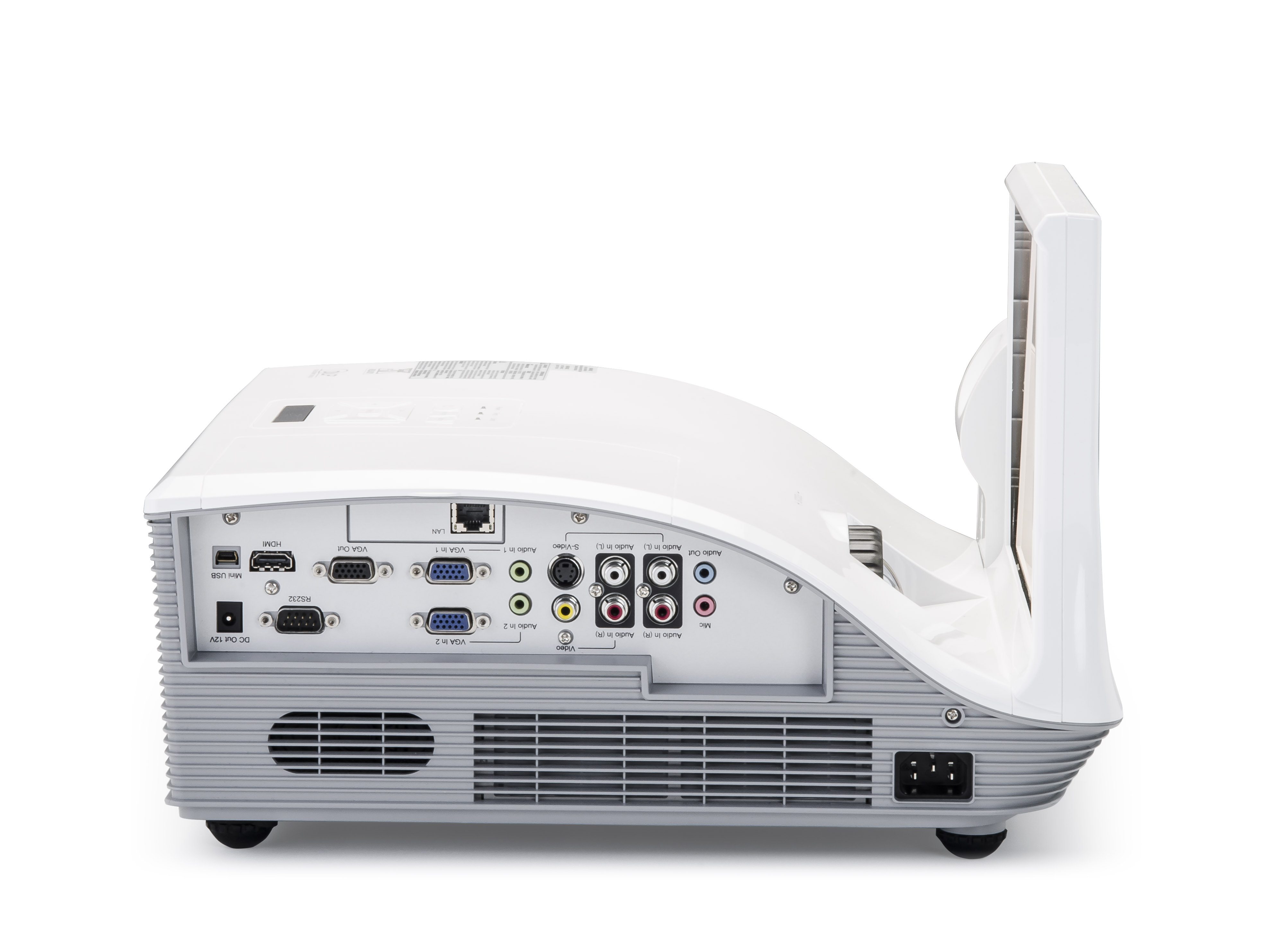

Connections
HDMI 1.4a in
2 x D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
Mini USB Typ B in
RS232C Din 9 pin in
RJ45 in
12V Trigger out
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion User logo Eco Mode Lan network compatible. Short-throw projector 6-segment colour wheel (RYGCWB) Integrated interactive whiteboard functionality Theft protection function with integrated steel pin for securing with steel cable up to 1 cm. Password protection
Real Full HD 3D
