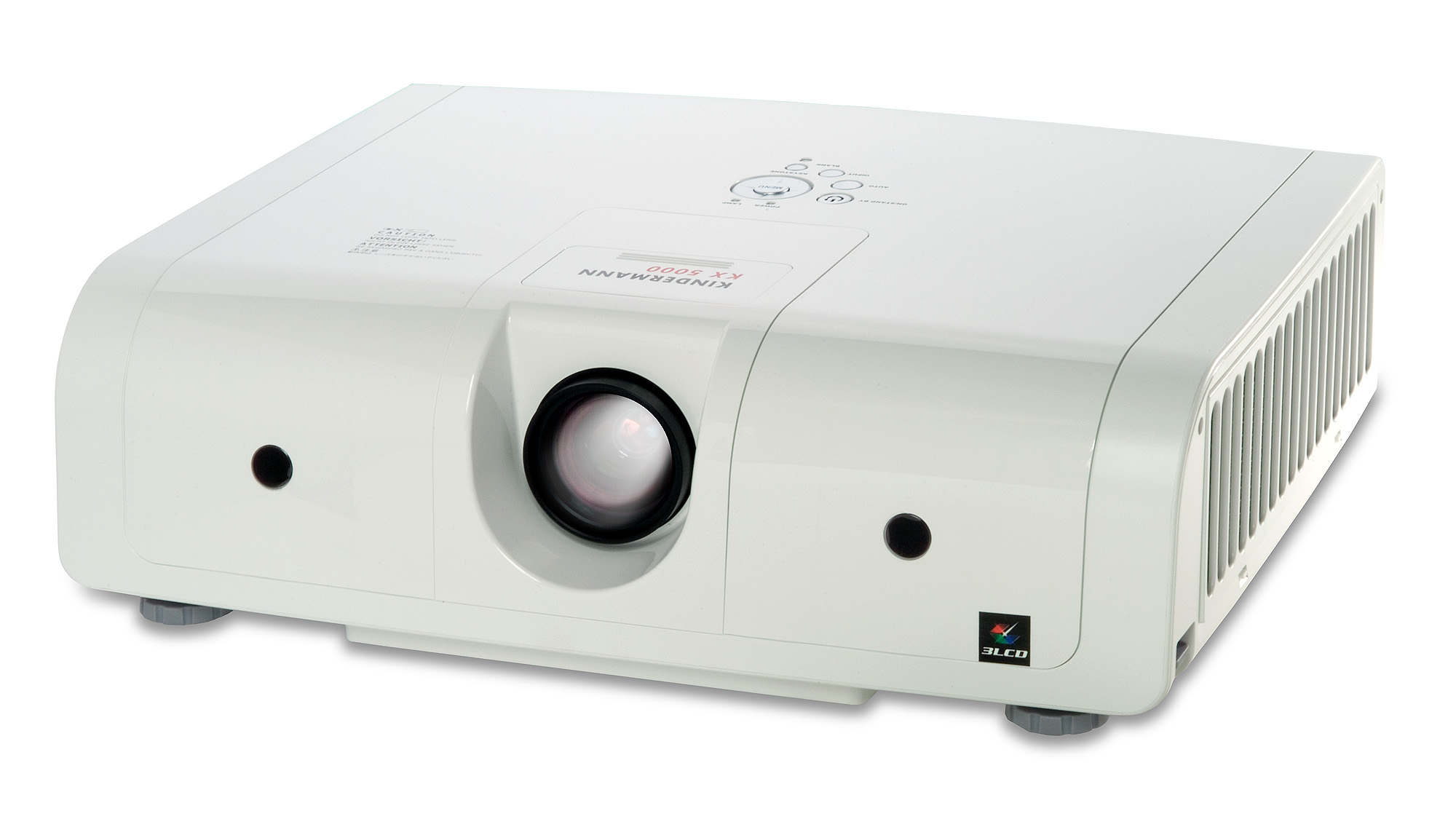

Kindermann KX 5000NL

Customer review

✎ Help other users and be the first to share your review.

✎ Help other and be the first to share your review.

Offer Ads

Discover other popular projectors on Amazon!

Model Overview

The hardware properties of the KX 5000 / NL manufactured by Kindermann include 4500 ANSI lumens, a XGA 1024 x 768 resolution and a contrast value of 500:1. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
Looking at practical performance, up to 584 cm can be illuminated with 4500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 389 cm.
For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
The projector was released in 2008 and is officially no longer distributed by Kindermann.

Display Type

3 x 0,79" LCD TFT Panel
XGA 4/3 Liquid Crystal Display

Ansi-Lumen

Projector

4500

Screen

1500 Lux (200 cm Screen width)

Contrast

500:1 full on/off

Black Level

9,0000 min. Lumen

3,018 min. Lumen

Offset

40% 15 cm under screen top edge →

SCREEN

+ Projector

Resolution

XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed

Video Modes

PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p

Application

Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens).

Light Source

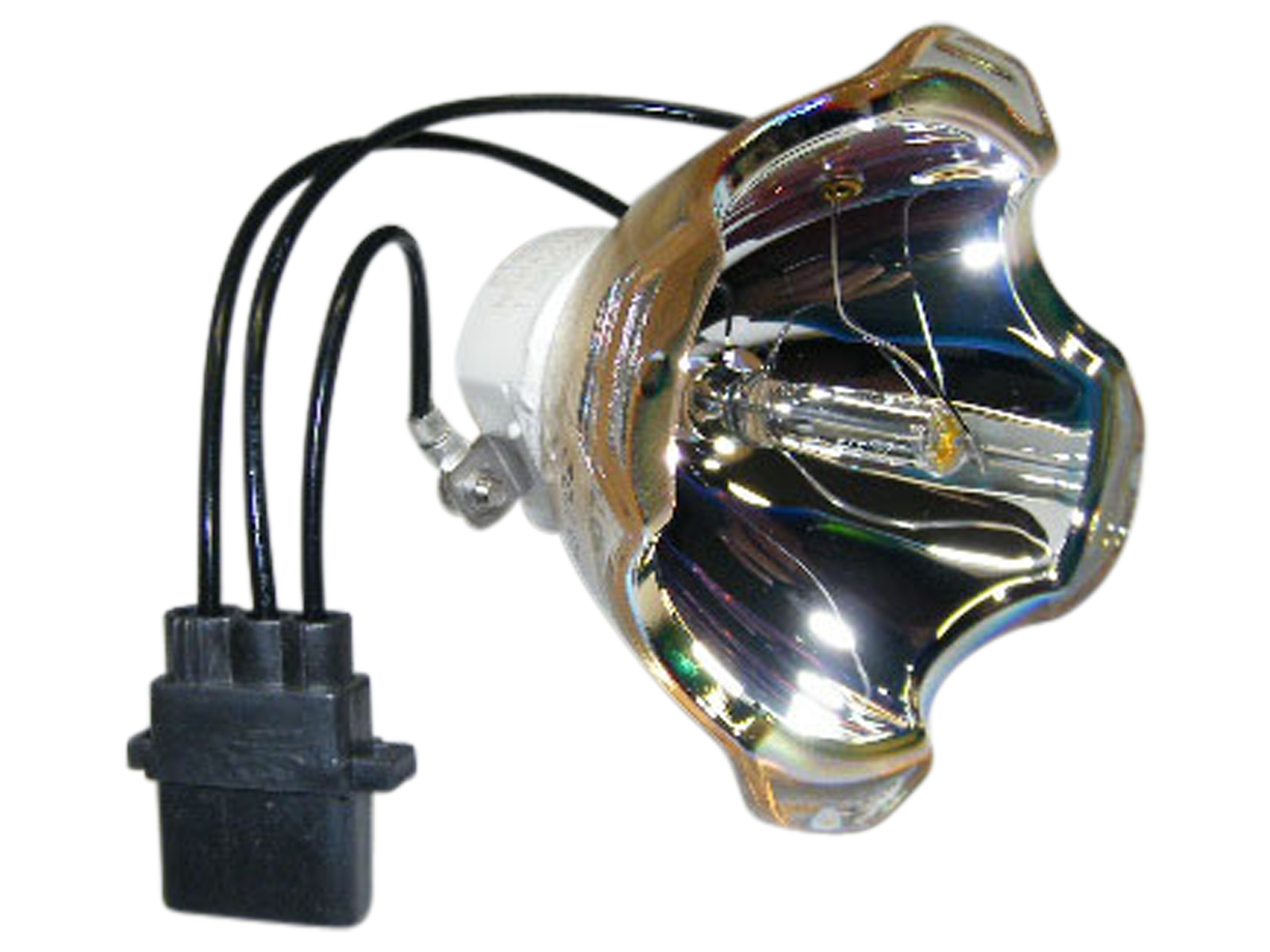

275W NSH Lamp
Article Nr.: LMP-111

Order Lamp
115,24 115,24 €

Light Life

2000 h.

Operating Costs

Calculated brightness quality
The screen width may also be larger. Perfect

294 - 356 cm


	Lux:	1500 Lux
	Contrast:	500:1
	Candela pro m²:	476 cd/m²
	Foot-Lamberts:	139 fL

60 cm

•

Focus

Manual

Zoom

Manual 1,2

Objective

f=24-28,8 mm / NL optional

Throw Ratio

1,47-1,78:1 show

Audio

1 x 8W Mono

Connections

DVI-I in
D-sub 15 pin in und out
5 x BNC RGBHV in
YUV in
S-Video in
Cinch Video in
Mini Jack Audio in und out
RS232C Din 9 pin in
USB
RJ45

Ceiling Mounting

Yes, is possible.

Power

Size WxHxD

480 x 152 x 360 mm (18,9"x6"x14,2") 26,27 L/dm³

Operating Noise

32 / 29 dB in Eco Mode

Key: 230 cm

	Key: 110 cm

Weight

8,20 kg / 18,08 lbs.

Keystone

Vert.: +/-30°

Illumination

Frequenz

H-sync: 15-107 kHz
V-sync: 10-120 Hz

Foot-Lamberts

139 fL / max. 584 cm screen width

Candela m²

476 cd/m²

Features

Eco Mode

Password protection

Lan network compatible.

Screen Mirroring

In Comparison

The Kindermann KX 5000 / NL compared to others not current "Stationary" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

1838 (From: 2536)

Optional accessories
	bulb only	NLMP18958	115,24 €
	lamp Original	8586	EOL €
	ceiling bracket length: 100-120mm	Halterung100	47,86 €
	Airfilter universal	uni3mm	18,15 €

Status

2008 Discontinued (EOL) // Last update of the data: 2026-06-09

Data

Kindermann Website

Product Sheet english

Product Sheet english HC
