Kindermann KSD 140

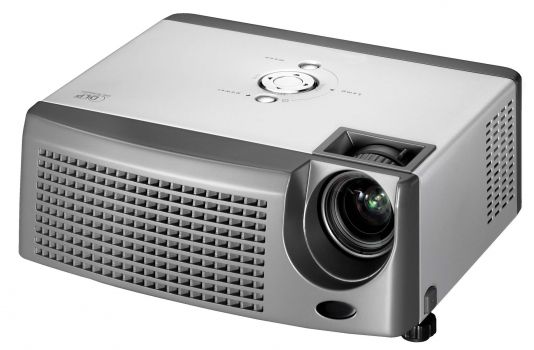

Image Kindermann KSD 140
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Equipped with DLP technology, the Kindermann KSD 140 offers 2000 ANSI lumens, a contrast of 2000:1 and is designed as a versatile projector.
Regarding projection size, the value of 2000 ANSI lumens allows for an image width of up to 389 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 259 cm.
This model dates back to 2008 and is no longer part of Kindermann's current product range.
Display Type       1 x 0,55" DLP Chip
      SVGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2000
Screen
667 Lux (200 cm Screen width)
Contrast 2000:1 full on/off 2000:1 full on/off
Black Level 1,0000 min. Lumen 0,334 min. Lumen
Offset -
Resolution SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 150W Lamp
Article Nr.: 8786-1
Order Lamp
58,45 - 85,12 €
Light Life -
Operating Costs -
Calculated brightness quality Perfect
330 - 390 cm
Lux: 667 Lux
Contrast: 2000:1
Candela pro m²: 212 cd/m²
Foot-Lamberts: 62 fL

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,1
Objective f=19,9-21,9 mm
Throw Ratio 1,65-1,95:1 show
Audio 1 x 2W
Connections D-sub 15 pin in
S-Video in
Cinch Video in
Mini Jack Audio in
RS232C Din 9 pin in
Ceiling Mounting Yes, is possible.
Power -
Size WxHxD 255 x 102 x 223 mm (10"x4"x8,8") 5,8 L/dm³
Operating Noise 32 / 30 dB in Eco Mode
Key: 88 cm

Without offset

Key: 88 cm

Weight 2,20 kg / 4,85 lbs.
Keystone Vert.: +/-15°
Illumination -
Frequenz H-sync: 31-79 kHz
V-sync: 50-85 Hz
Foot-Lamberts 62 fL / max. 389 cm screen width
Candela m² 212 cd/m²
Features Eco Mode
Screen Mirroring -
In Comparison
The Kindermann KSD 140 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
23 Weight:
90
Contrast:
1 dB:
44
Black level:
96 Power cons.: 0
Picture Total Points:40 Projector Total Points:0
Popularity Top 100
4 popularity points 4 popularity points 0 popularity points 0 popularity points 2 popularity points 2 popularity points
Points:
2
Ranking: 7432 (From: 7736)
Optional accessories
bulb only Osram NLMP2067274,17 €
lamp ruby Ruby-LMP2067285,12 €
lamp Original8786EOL €
Compatible lamp LMP-K2067158,45 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2008 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Kindermann Website
Product Sheet english HC

Projektor Kindermann KSD 140
