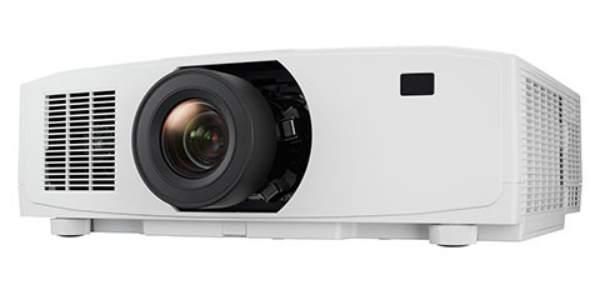

As a projector, the Dukane ImagePro 6771UL combines LCD technology with a resolution of WUXGA 1920 x 1200, and is additionally specified with 7100 ANSI lumens and a contrast of 2500000:1. The laser technology ensures a specified light source lifespan of up to 20000 hours, covering an estimated 13.7 years based on a 4-hour daily runtime. For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups. A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Distance Calculator. Regarding projection size, the value of 7100 ANSI lumens allows for an image width of up to 856 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 571 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D. An additional 360° projection capability allows the device to be oriented at almost any angle. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances.
Display Type
3 x 0,76" LCD w/ MLA WUXGA 16/9 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
7100
Screen
3156 Lux (200 cm Screen width)
Contrast
2500000:1 full on/off
2500000:1 full on/off
Black Level
0,0028 min. Lumen
0,001 min. Lumen
Offset
-
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel UHD (4K+2K) 4096 x 2160 compressed
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) | | 2D-zu-3D Video Converter
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3156 Lux
Contrast:
2500000:1
Candela pro m²:
1004 cd/m²
Foot-Lamberts:
293 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
2x HDMI 2.0 in
DisplayPort 1.4
VGA 15 pin D-sub, Component video ADP-CV1E adapter
Mini Jack Audio in und out
3D Sync out 3Pin Din
USB 2.0 in
RS232C Din 9 pin in
RJ45 in
HDBaseT
Ceiling Mounting
Yes, is possible.
Power
456W
Size WxHxD
591 x 259 x 491 mm (23,3"x10,2"x19,3") 75,16 L/dm³
Real Full HD 3D Full HD 1080P compatible User logo Eco Mode Automatic and manual vertical keystone correction Kensington Slot Warping 360° installable 24/7 continuous operation capable Edge Blending Picture-in-Picture Password protection PJLink™ Control via web browser Lan network compatible. Crestron®-Software compatible. Built-in HTTP page Portrait mode AMX
Real Full HD 3D
