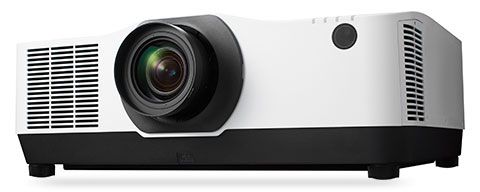

Behind the name ImagePro 6710UL-L is a 3D-Laser-LCD projector by Dukane, whose main features include 10000 ANSI lumens, a contrast of 3000000:1 and a WUXGA 1920 x 1200 resolution. The manufacturer lists the lifespan for this model at 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible. For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projector Calculator. A look at the light output reveals: The 10000 ANSI lumens are sufficient to illuminate an image width of up to 1016 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 677 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. For media input, video signals up to 1080P and 4K as well as 3D are supported, and also offers the technical capability for 360° projection. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances.
Display Type
3 x 0,76" LCD TFT Panel mit MLA WUXGA 16/9 Liquid Crystal Display with Micro Lense Array
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
4444 Lux
Contrast:
3000000:1
Candela pro m²:
1415 cd/m²
Foot-Lamberts:
413 fL
56 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
1 x 10W
Connections
2 x HDMI in 1 x out HDMI (V2.0) w/HDCP (V1.4/2.2)
D-sub 15 pin in
5 x BNC RGBHV in
USB Typ A in
RS232C Din 9 pin in
Mini Jack Audio in und out
RJ45 mit HDBaseT in
3D Sync
Display Port
Real Full HD 3D Full HD 1080P compatible Direkt Power Off Lens shift Funktion manuell Freeze Blackboard Modus User logo Eco Mode Warping 360° installable Edge Blending Picture-in-Picture Password protection PJLink™ Lan network compatible. Crestron®-Software compatible.
Real Full HD 3D
