Brief Introduction
Beta 2.5 |

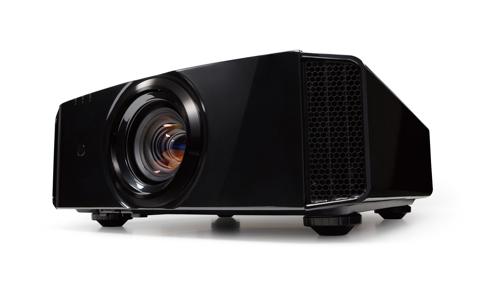

A brief introduction to the JVC DLA X790 /R. The high-end home cinema DILA projector has a UHD (4K2K) 3840 x 2160 resolution and a contrast of 1300000:1. The built-in lens shift function provides freedom when setting up. An image width of up to 443 cm is possible, as the projector has 1900 Ansi lumens. However, if room light is available, the picture should be max. 295 cm wide. Furthermore, the projector can play 1080P and 4K as well as 3D without any problems, and therefore all currently available Blu-ray formats can be recognized by the projector. At just 20 decibels, the device is one of the quieter projectors. The model built in 2017 is no longer offered by JVC.
|
| Display Type |
3 x 0,7" DILA Chip
HDTV 16/9 Direct-Drive Image Light Amplification (D-ILA)
|
| Ansi-Lumen |
Projector |
1900 |
Screen |
844 Lux (200 cm Screen width) |
| Contrast |
1300000:1 full on/off |
1300000:1 full on/off
|
| Black Level |
0,0015 min. Lumen |
0,001 min. Lumen |
| Lens shift |
Vert.: +/-80% Hori.: +/-34%
|
| Resolution |
UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
HD4K 4096 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) | 2D-zu-3D Video Converter |
|
| Application |
High-End Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
265W NSH Lamp
Article Nr.: PK-L2615U
|
|
| Light Life |
- |
| Operating Costs |
-
|
|
280 - 560 cm
|
 |
|
Lux: |
844 Lux |
|
Room light max.: |
169 Lux |
|
Candela pro m²: |
267 cd/m² |
|
Foot-Lamberts: |
78 fL |
|
 |
| 90 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 2 |
| Objective |
F=3,2-4,0 f=21,4-42,80 mm |
| Throw Ratio |
1,4-2,8:1 show |
| Audio |
Nein |
| Connections |
2 x HDMI 2.0a/2.0b mit HDCP 2.2
D-sub 15 pin in
YUV in
RS232C
RJ45 in
12V Trigger out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
455 x 179 x 472 mm (17,9"x7"x18,6") 38,44 L/dm³
|
| Operating Noise |
20dB |
Shift: 90 cm
|
Shift: 68 cm
|
|
Shift: 68 cm
|
| |
|
|
| Weight |
15,60 kg / 34,39 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
78 fL
/ max. 443 cm screen width |
| Candela m² |
267 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
sRGB
Gamma correction
High Dynamic Range (HDR)
Remote control with backlight
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The JVC DLA X790 /R compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
15 |
Weight: |
|
71 |
| Contrast: |
|
81 |
dB: |
|
97 |
| Black level: |
|
100 |
Power cons.: |
|
0 |
| Picture Total Points: | 65 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
23 |
| Ranking: |
142 (From: 499) |
|
|
|
|
|
| Status |
2017 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2017-10-23 14:34:04
|
