Brief Introduction
Beta 2.5 |

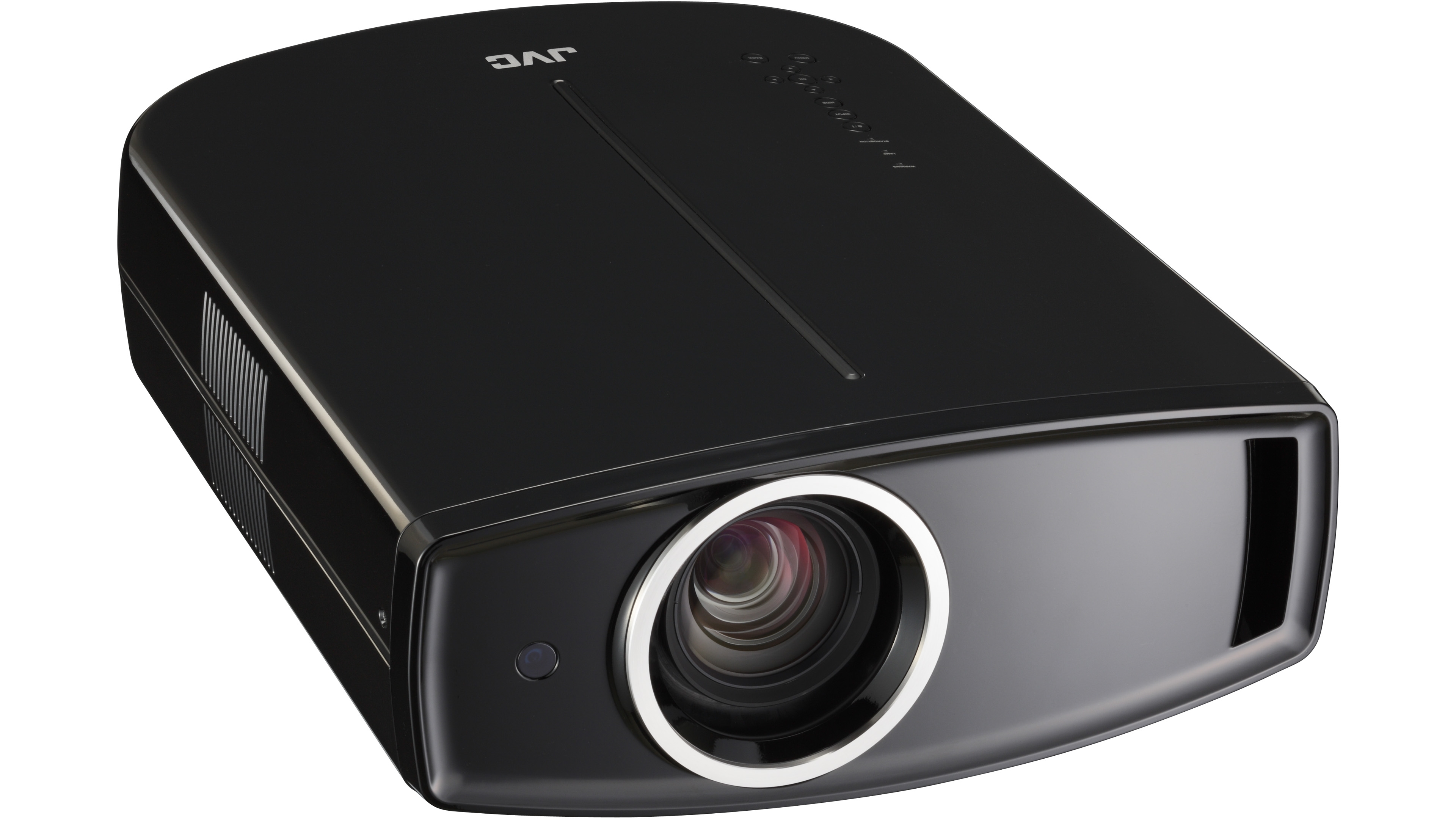

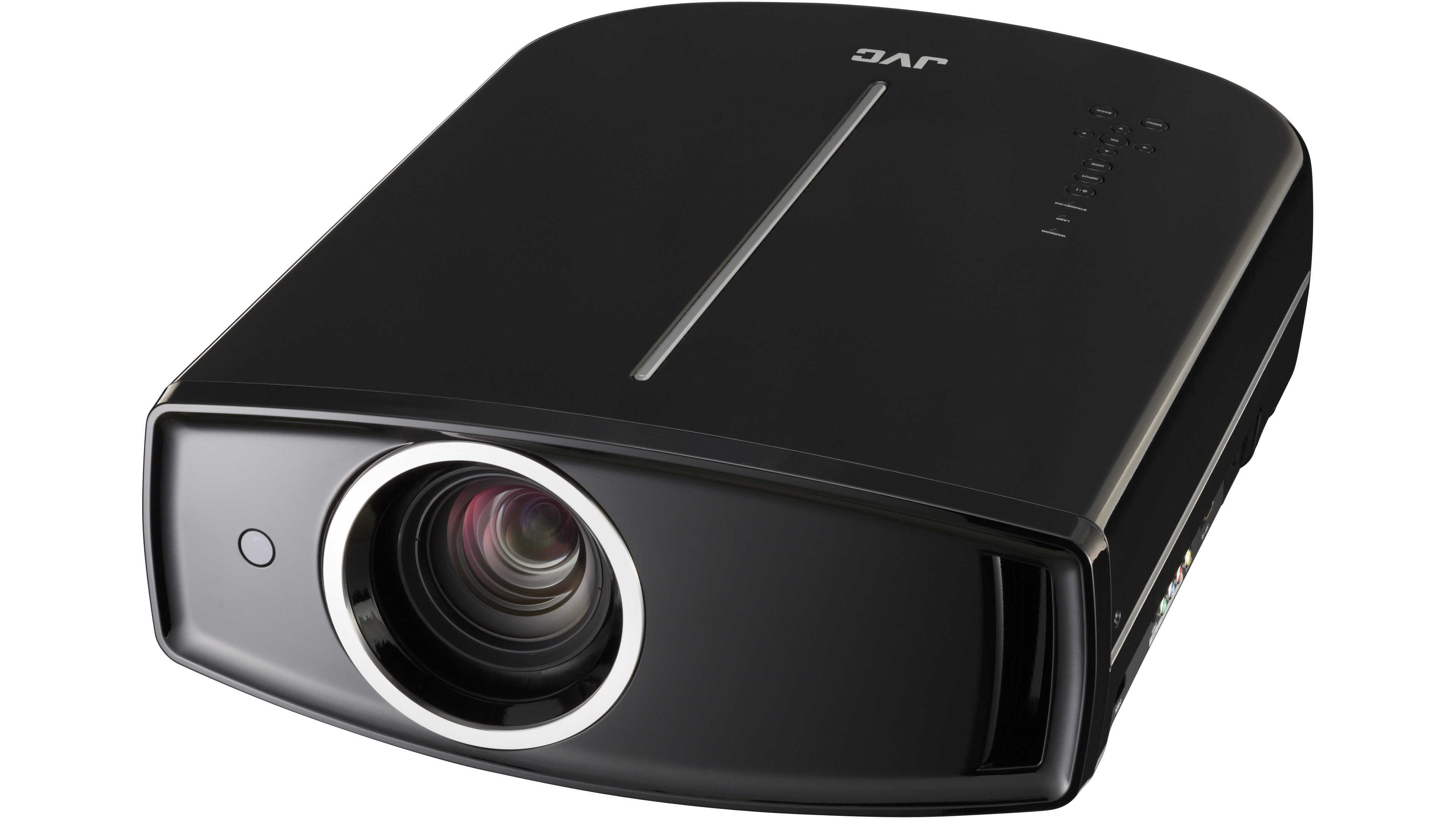

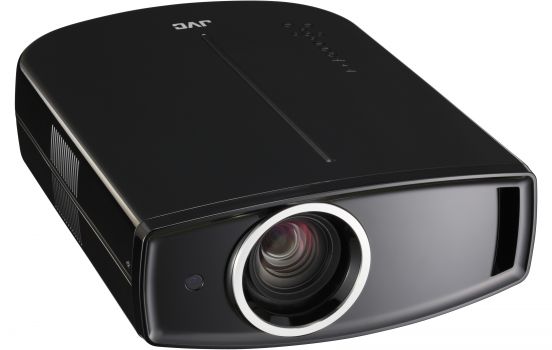

The high-end home cinema DLA HD550/B/W DILA projector from JVC has 1000 Ansi lumens, a contrast of 30000:1 and an HDTV 1920 x 1080 resolution. The integrated lens shift gives freedom when positioning the projector. Thanks to the brightness of 1000 Ansi lumens, a picture width of 321 cm is possible. In room light, the image should be max. 214 cm wide. The model is also Full HD 1080P compatible. The projector is very quiet compared to others with 19 decibels of operating noise. The model was built by JVC in 2009 and is no longer current, but is still very popular in our projector database.
|
| Display Type |
3 x 0,7" D-ILA Chip
HDTV 16/9 Direct-Drive Image Light Amplification (D-ILA)
|
| Ansi-Lumen |
Projector |
1000 |
Screen |
444 Lux (200 cm Screen width) |
| Contrast |
30000:1 full on/off |
30000:1 full on/off
|
| Black Level |
0,0333 min. Lumen |
0,015 min. Lumen |
| Lens shift |
Vert.: +80% -34% Hori.: +34% -%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
High-End Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |

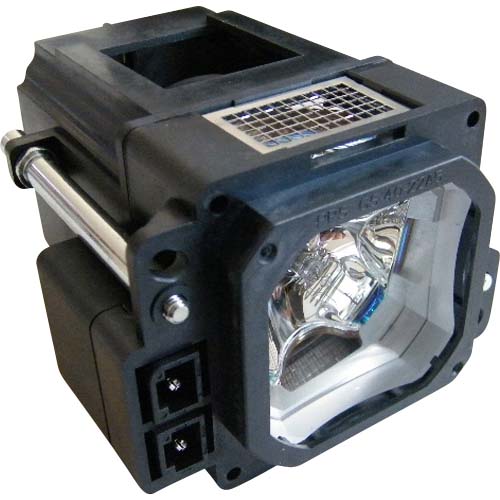

| Light Source |

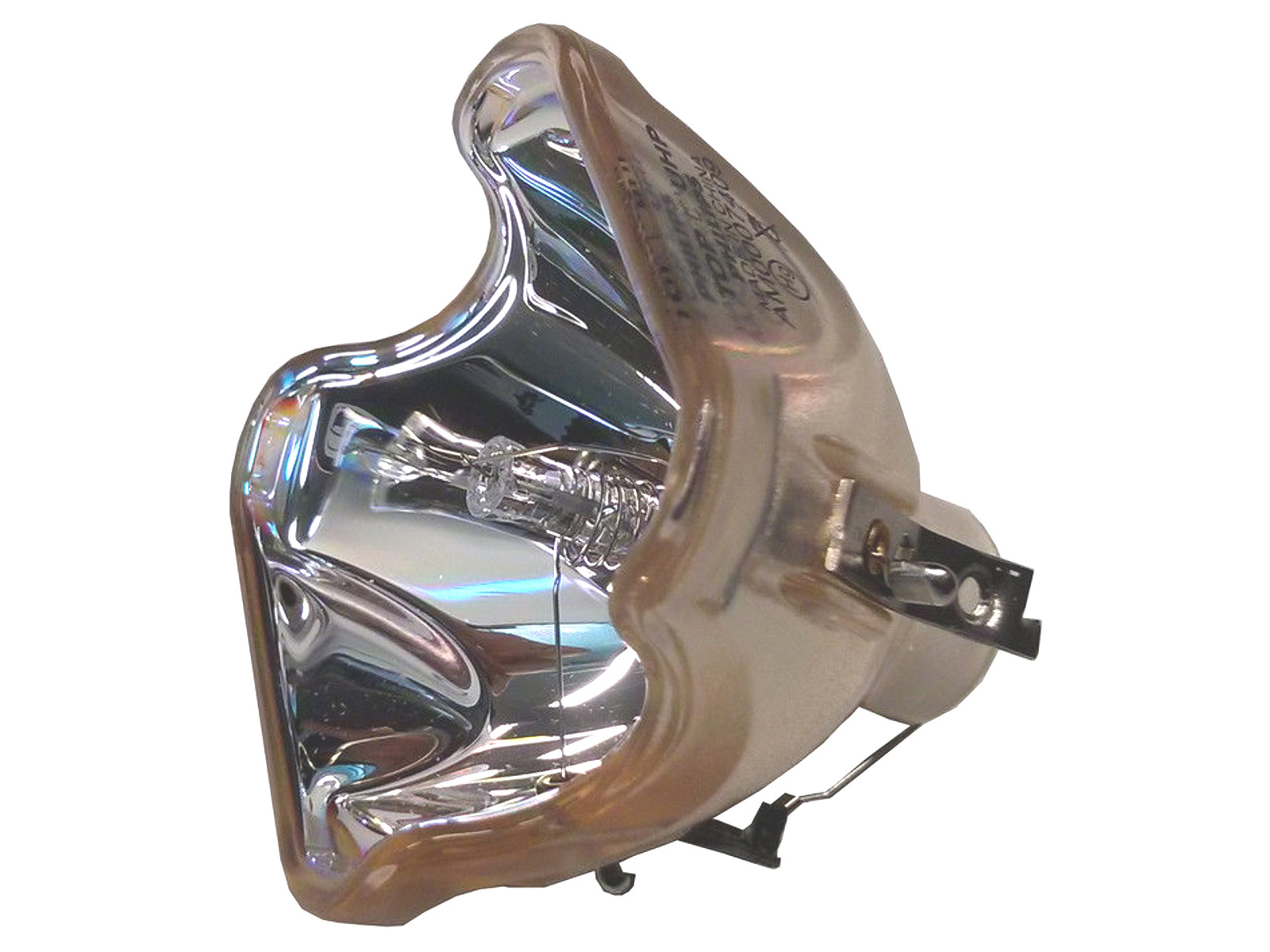

200W UHP Lamp
Article Nr.: BHL5010-S
|
|
| Light Life |
2000 h. |
| Operating Costs |
|
|
271 - 553 cm
|
 |
|
Lux: |
444 Lux |
|
Room light max.: |
89 Lux |
|
Candela pro m²: |
140 cd/m² |
|
Foot-Lamberts: |
41 fL |
|
 |
| 90 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 2,02 |
| Objective |
F=3,2-4,0 f=21,4-42,8 mm |
| Throw Ratio |
1,356-2,767:1 show |
| Audio |
Nein |
| Connections |
2 x HDMI 1.3 in
YUV in
S-Video in
Cinch Video in
RS232C Din 9 pin in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
310W |
| Size WxHxD |
365 x 167 x 478 mm (14,4"x6,6"x18,8") 29,14 L/dm³
|
| Operating Noise |
19dB |
Shift: 90 cm
|
|
|
Shift: 68 cm
|
| |
|
|
| Weight |
11,20 kg / 24,25 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
41 fL
/ max. 321 cm screen width |
| Candela m² |
140 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Dynamic iris
Remote control with backlight
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The JVC DLA HD550/B/W compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
6 |
Weight: |
|
81 |
| Contrast: |
|
2 |
dB: |
|
100 |
| Black level: |
|
99 |
Power cons.: |
|
91 |
| Picture Total Points: | 36 |
Projector Total Points: | 91 |
|
| Popularity Top 100 |
|
| Points: |
|
32 |
| Ranking: |
72 (From: 499) |
|
|
|
| In Test
|
-
|
|
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2025-03-03
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (27.71 MB)

|
JVC Contact
