Brief Introduction
Beta 2.5 |

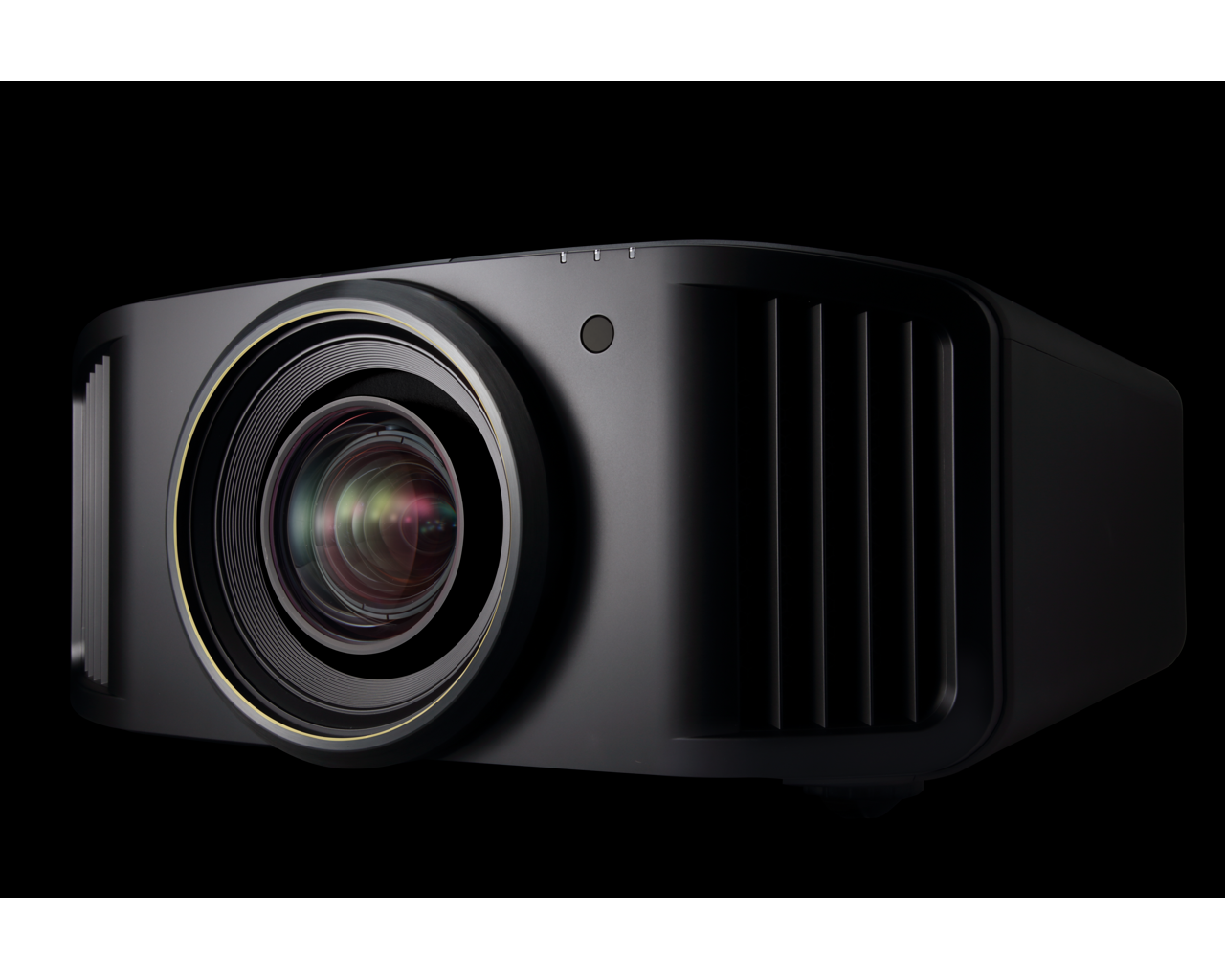

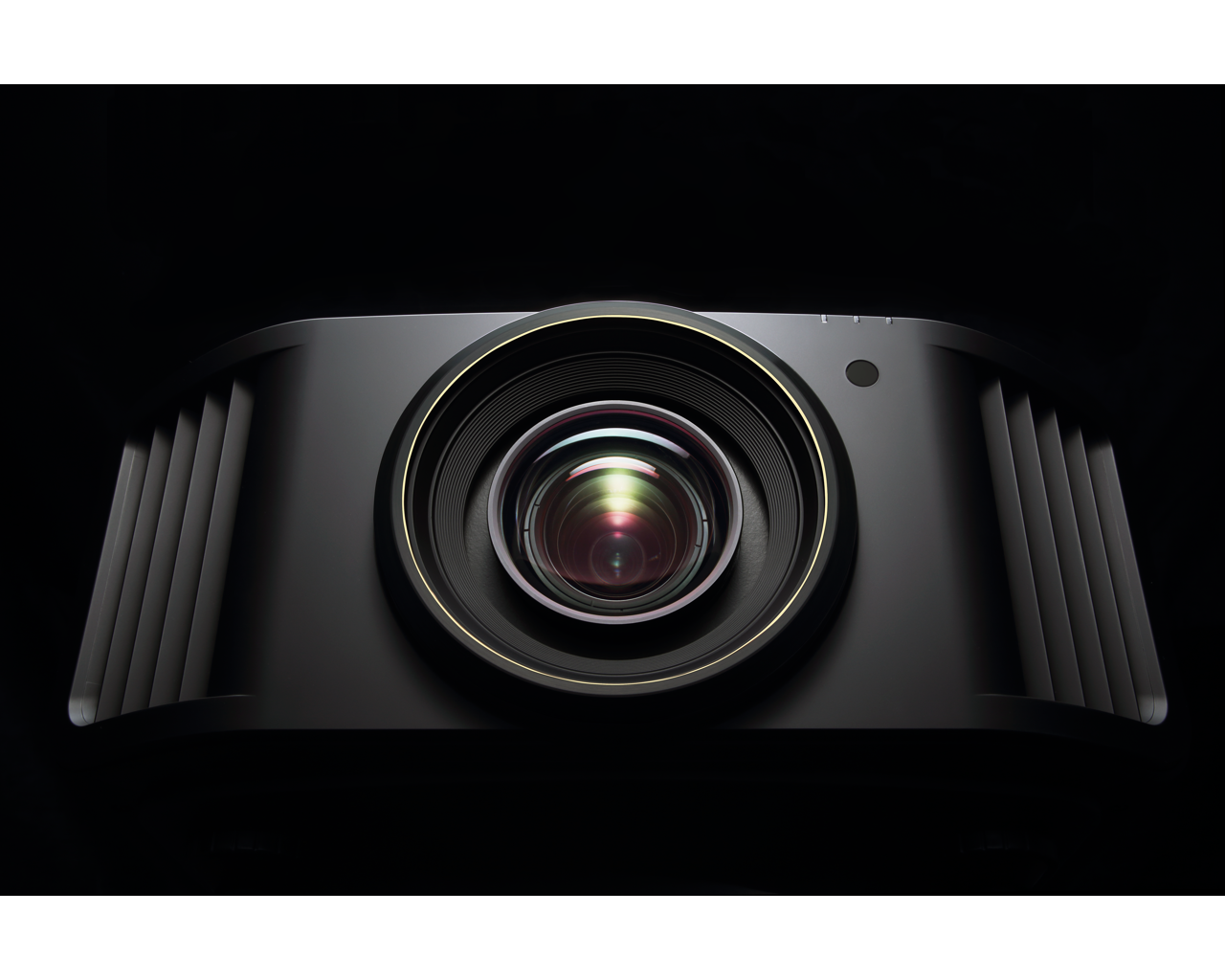

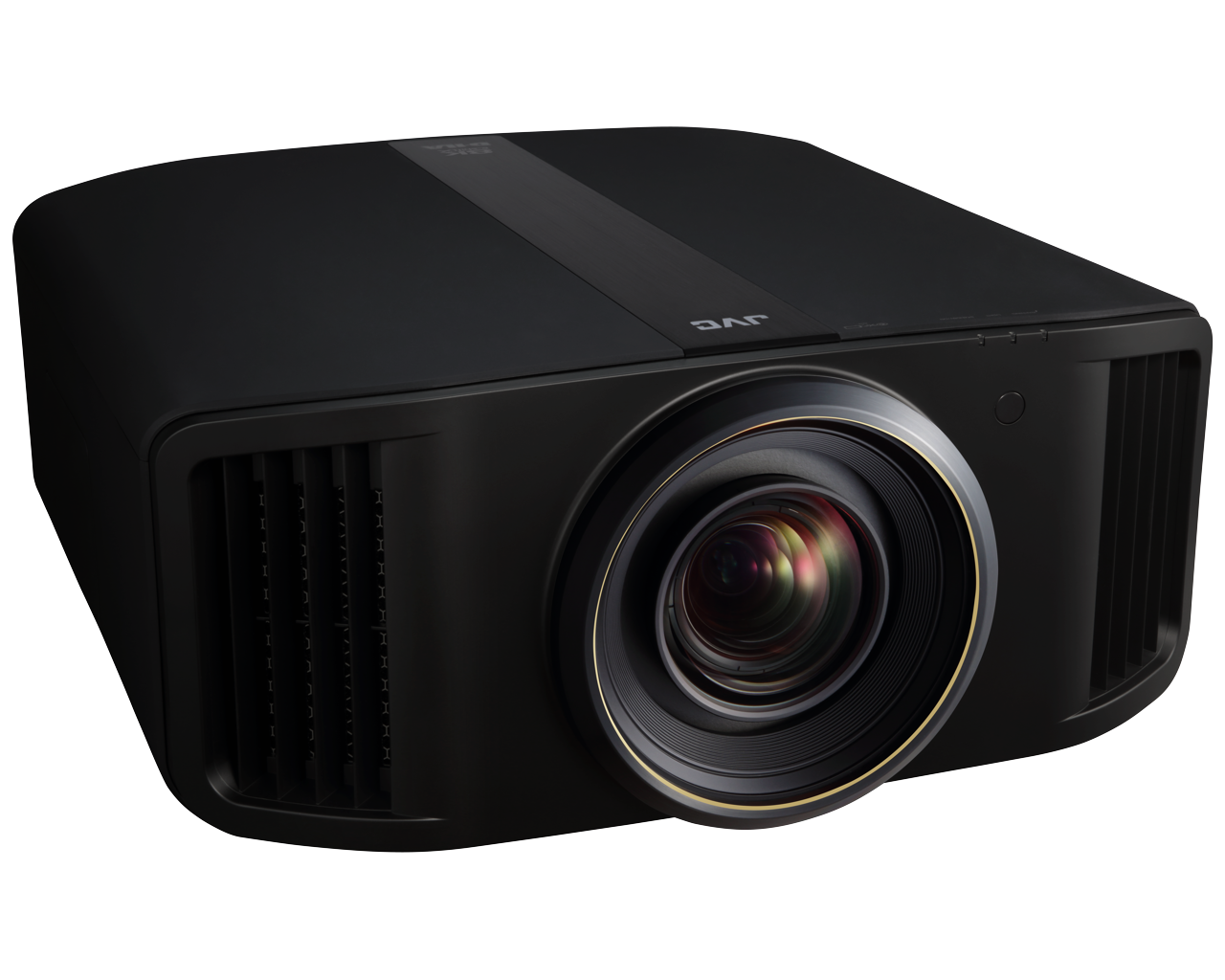

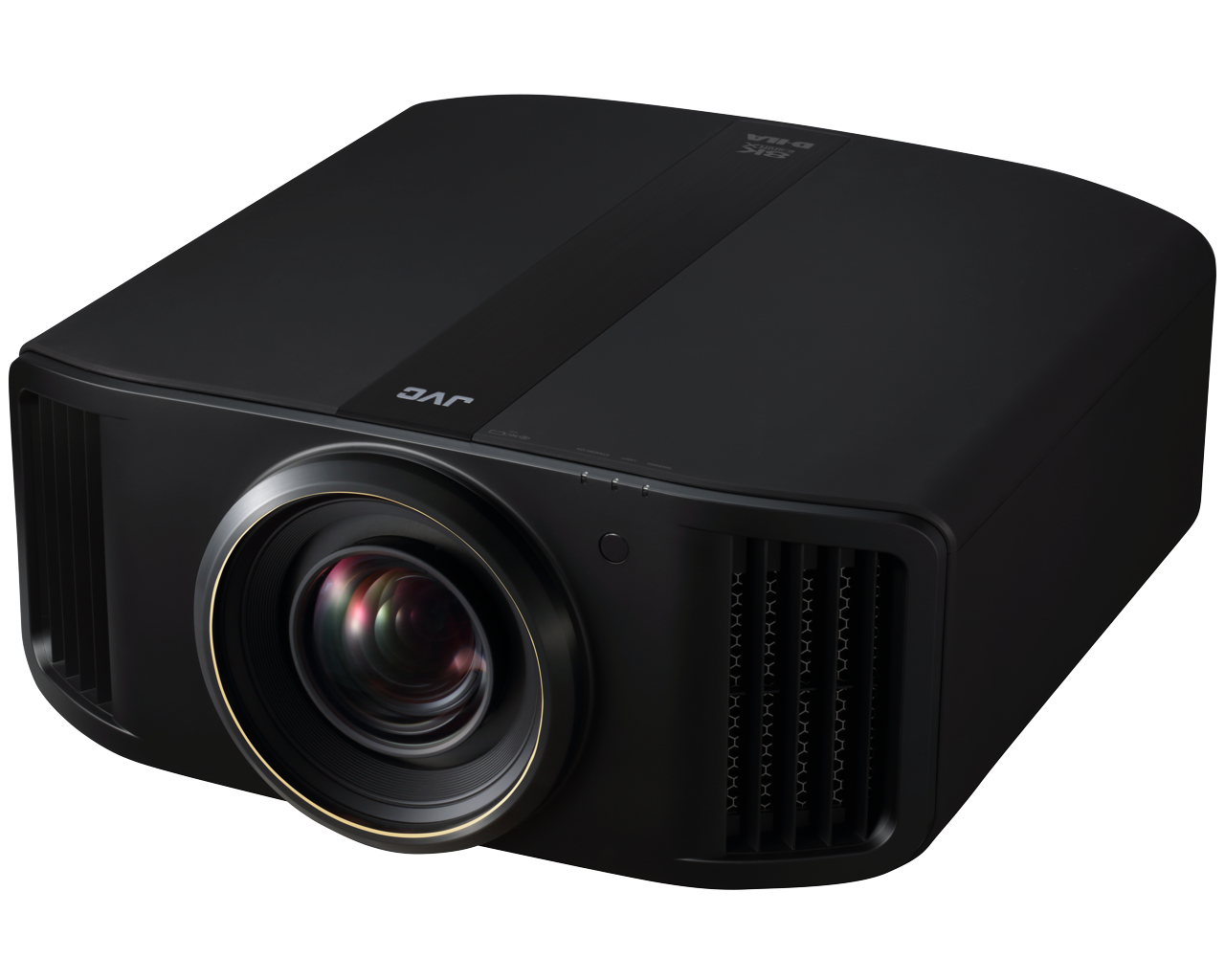

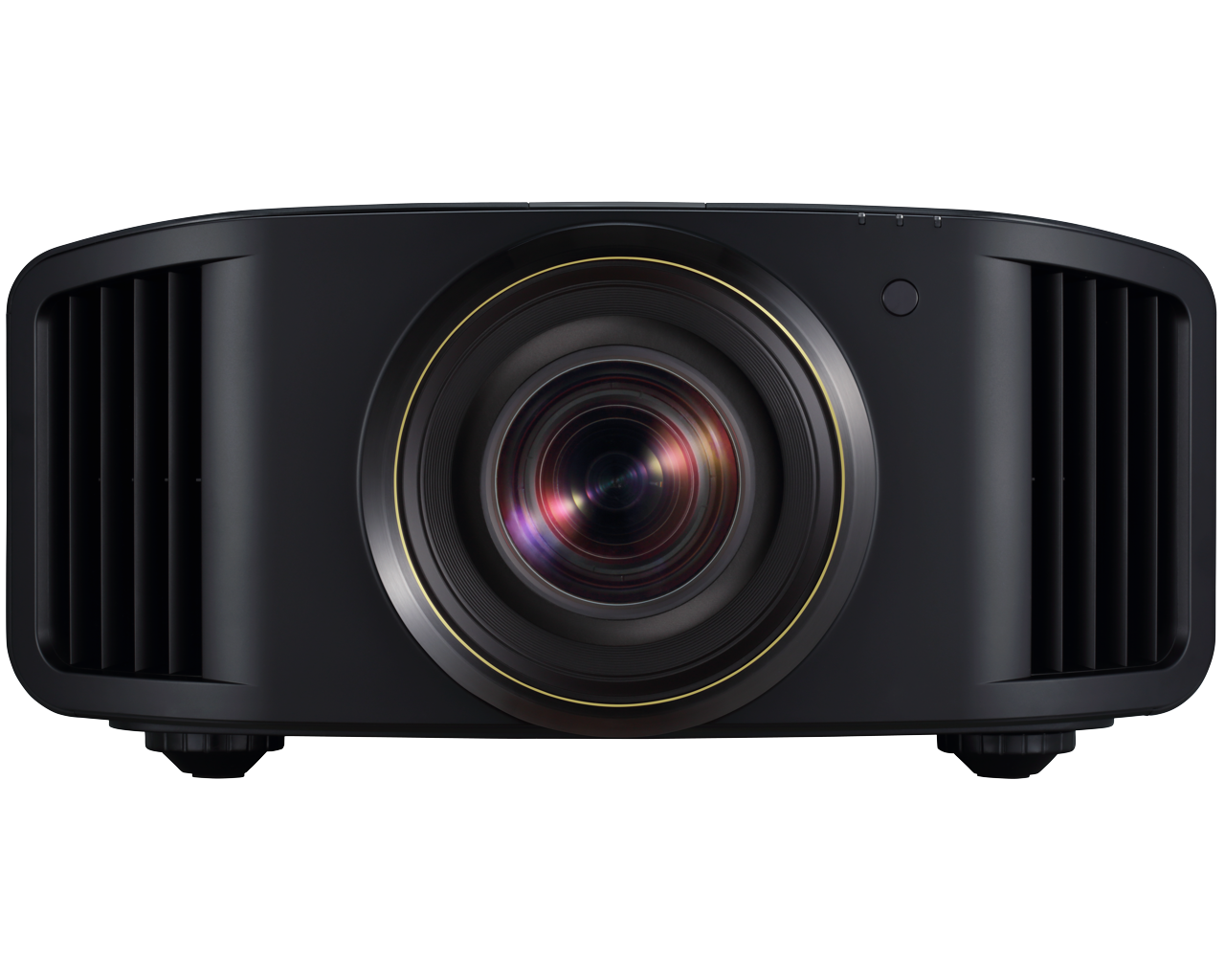

The JVC model DLA-RS4200 is a DILA laser projector with UHD (4K2K) 3840 x 2160 resolution and a contrast of 150000:1. The service life of the laser is 20000 hours, which is equivalent to over 13.7 years at 4 hours. The built-in lens shift function provides freedom when adjusting the projection. Thanks to the brightness of 3300 Ansi lumens, an image width of 584 cm is possible. In room light, the image should be max. 389 cm wide. Video signals 1080P and 4K as well as 3D are also no problem for the projector, meaning that all Blu-ray formats currently available can be recognized by the projector. At 24 decibels, the projector is very quiet compared to other projectors.
|
| Display Type |
3 x 0,69" D-ILA Chip 3 Generation
UHD 16/9 Direct-Drive Image Light Amplification (D-ILA)
|
| Ansi-Lumen |
Projector |
3300 |
Screen |
1467 Lux (200 cm Screen width) |
| Contrast |
150000:1 full on/off |
150000:1 full on/off
|
| Black Level |
0,0220 min. Lumen |
0,01 min. Lumen |
| Lens shift |
Vert.: +/-100% Hori.: +/-43%
|
| Resolution |
UHD (4K2K) 3840 x 2160
8.294.400 Pixel
8K4K 8192 x 4320 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
|
| Application |
High-End Homecinema | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
BLU-Escent Laser Diode
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
270 - 550 cm
|
 |
|
Lux: |
1467 Lux |
|
Room light max.: |
293 Lux |
|
Candela pro m²: |
466 cd/m² |
|
Foot-Lamberts: |
136 fL |
|
 |
| 113 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 2,01 |
| Objective |
- |
| Throw Ratio |
1,35-2,75:1 show |
| Audio |
Nein |

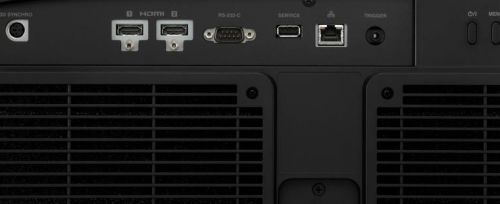

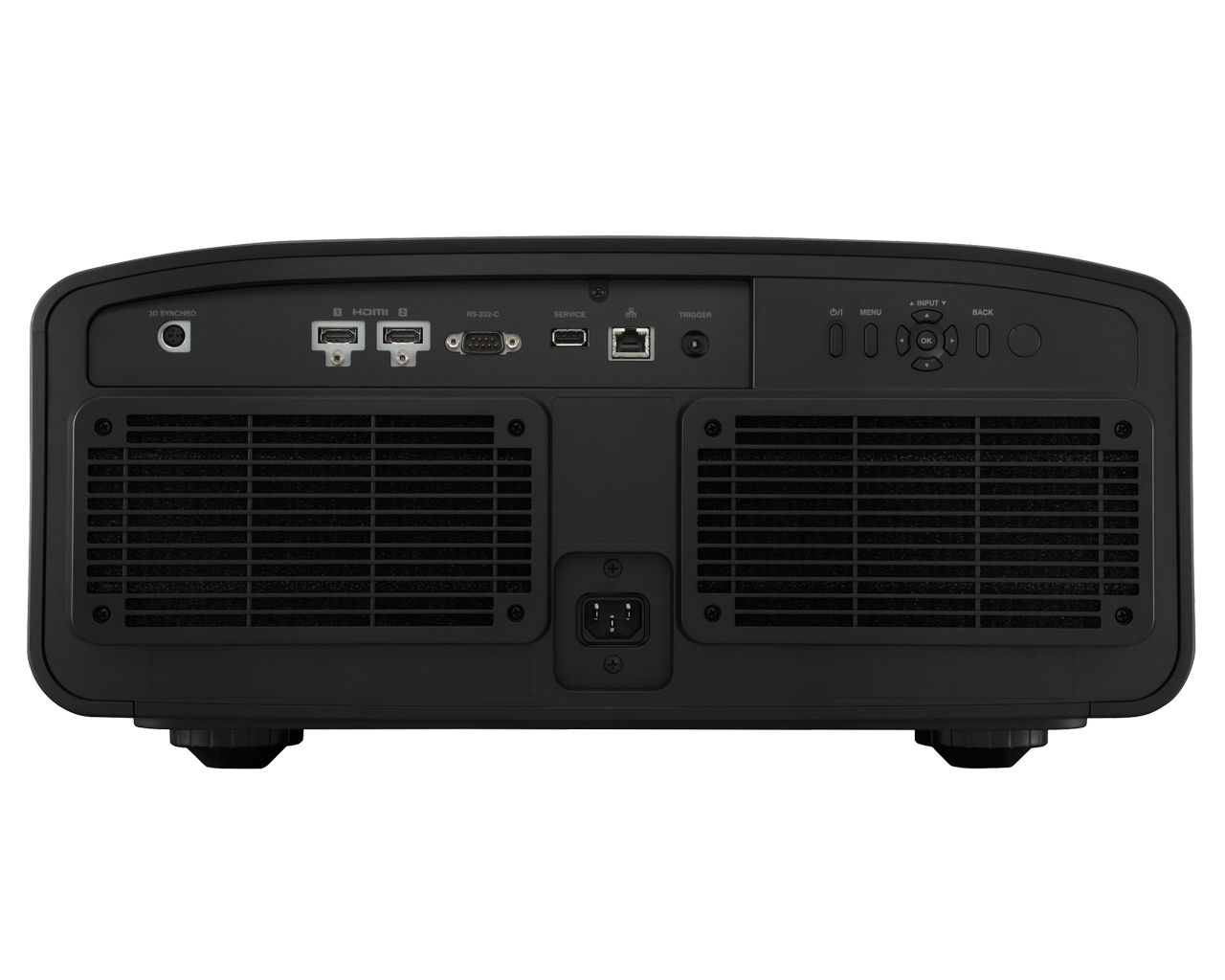

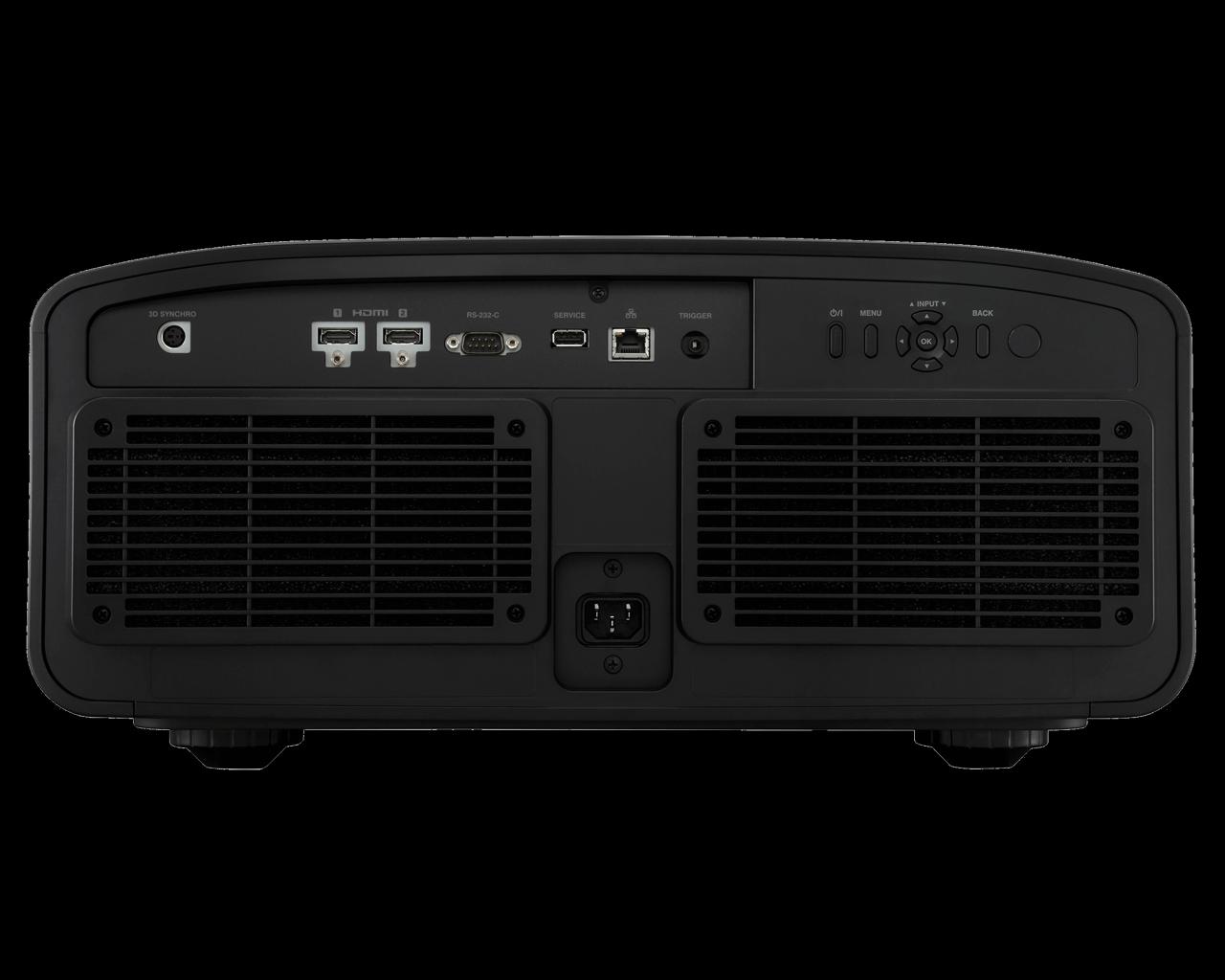

| Connections |
2 x HDMI mit HDCP 2.2 in
Mini DIN 3-pin
RS232C Din 9 pin in
12V Trigger out
USB Typ A
RJ45in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
440W |
| Size WxHxD |
500 x 234 x 528 mm (19,7"x9,2"x20,8") 61,78 L/dm³
|
| Operating Noise |
24dB |
Shift: 113 cm
|
Shift: 86 cm
|
|
Shift: 86 cm
|
| |
|
|
| Weight |
30,70 kg / 66,14 lbs. |
| Keystone |
- |
| Illumination |
100% |
| Frequenz |
- |
| Foot-Lamberts |
136 fL
/ max. 584 cm screen width |
| Candela m² |
466 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
High Dynamic Range (HDR)
Lan network compatible.
Frame Adapt HDR with ‘Deeper Black’
Auto Tone Mapping
Luminous flux control 15 dimming levels
Memory function for lens settings
Auto calibration
Motion Enhance
Clear Motion Drive
‘Low Latency’ mode
Filmmaker mode
MPC
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The JVC DLA-RS4200 compared to others current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
1 |
| Contrast: |
|
3 |
dB: |
|
92 |
| Black level: |
|
94 |
Power cons.: |
|
47 |
| Picture Total Points: | 42 |
Projector Total Points: | 47 |
|
| Popularity Top 100 |
|
| Points: |
|
18 |
| Ranking: |
19 (From: 43) |
|
|
|
|
|
| Status |
2024 Current model // Last update of the data: 2025-03-03
