Brief Introduction
Beta 2.5 |
The high-end home cinema DLA-VS2200ZG / G 3D DILA has 850 Ansi lumens, a contrast of 18000:1 and an HDTV 1920 x 1080 resolution. The lamp in the projector is specified with a lamp life of 4000 hours, which is over 5.5 years if enjoyed for two hours every day. The projector also offers a lens shift function that makes image adjustment childs play. An image width of up to 296 cm is possible as the projector has 850 Ansi lumens. However, if room light is available, the picture should be a maximum of 197 cm wide. The projector can also play 1080P and 3D without any problems. The operating noise of just 20 decibels makes the projection quiet. The model built in 2013 is no longer offered by JVC.
|
| Display Type |
3 x 0,7" DILA Chip
HDTV 16/9 Direct-Drive Image Light Amplification (D-ILA)
|
| Ansi-Lumen |
Projector |
850 |
Screen |
378 Lux (200 cm Screen width) |
| Contrast |
18000:1 full on/off |
18000:1 full on/off
|
| Black Level |
0,0472 min. Lumen |
0,021 min. Lumen |
| Lens shift |
Vert.: +/-80% Hori.: +/-34%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) | 2D-zu-3D Video Converter |
|
| Application |
High-End Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

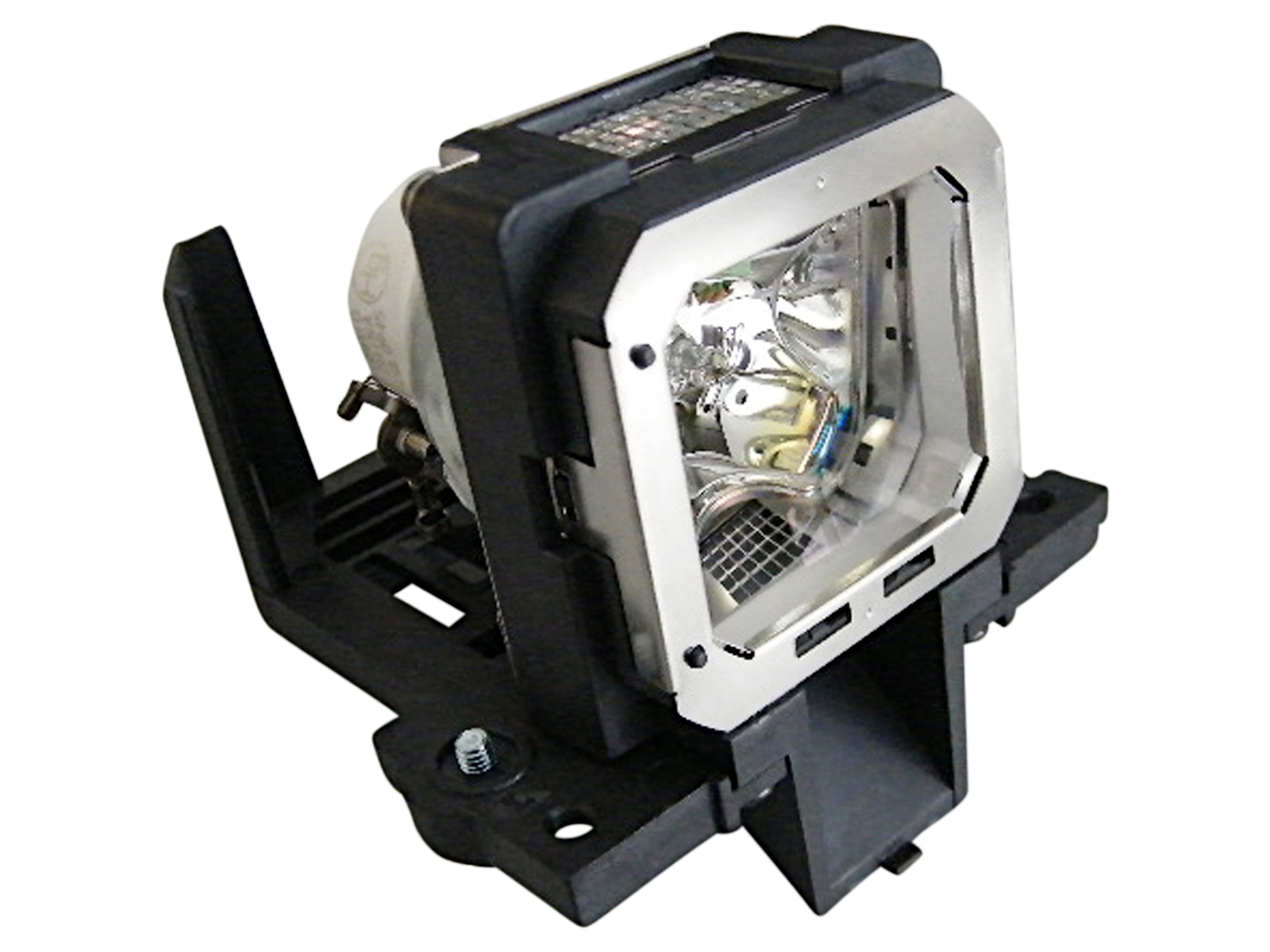

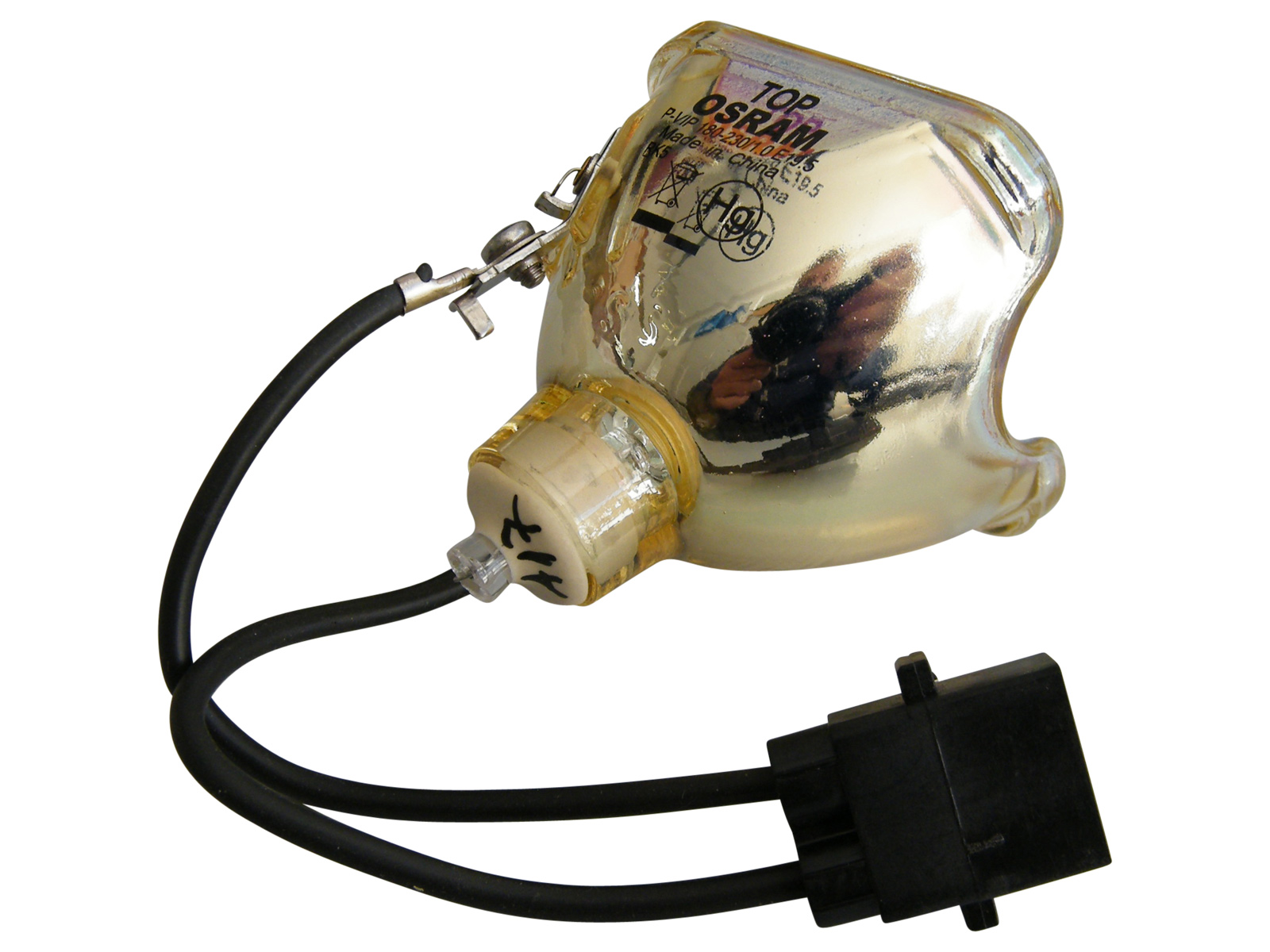

NSH 230W Lamp
Article Nr.: PK-L2313U
|
|
| Light Life |
4000 h. |
| Operating Costs |
-
|
|
280 - 560 cm
|
 |
|
Lux: |
378 Lux |
|
Room light max.: |
76 Lux |
|
Candela pro m²: |
120 cd/m² |
|
Foot-Lamberts: |
35 fL |
|
 |
| 90 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 2 |
| Objective |
F=3,2-4,0 f=21,4-42,80 mm |
| Throw Ratio |
1,4-2,8:1 show |
| Audio |
Nein |
| Connections |
2 x HDMI 1.4a
YUV in
RS232C
12V Trigger out
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
360W |
| Size WxHxD |
455 x 179 x 472 mm (17,9"x7"x18,6") 38,44 L/dm³
|
| Operating Noise |
20dB |
Shift: 90 cm
|
Shift: 68 cm
|
|
Shift: 68 cm
|
| |
|
|
| Weight |
14,70 kg / 32,41 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
35 fL
/ max. 296 cm screen width |
| Candela m² |
120 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
sRGB
Gamma correction
Remote control with backlight
Lan network compatible.
Integrated automatic lens protection
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The JVC DLA-VS2200ZG / G compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
4 |
Weight: |
|
73 |
| Contrast: |
|
1 |
dB: |
|
97 |
| Black level: |
|
99 |
Power cons.: |
|
88 |
| Picture Total Points: | 35 |
Projector Total Points: | 86 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
363 (From: 499) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2013-09-23 16:52:52
|
