Brief Introduction
Beta 2.5 |

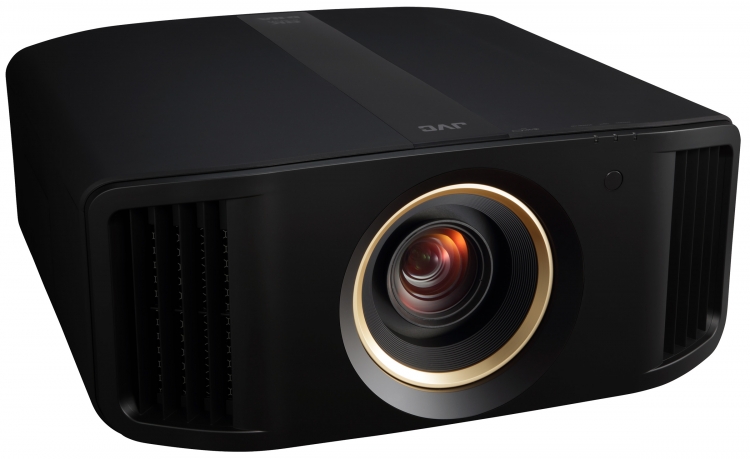

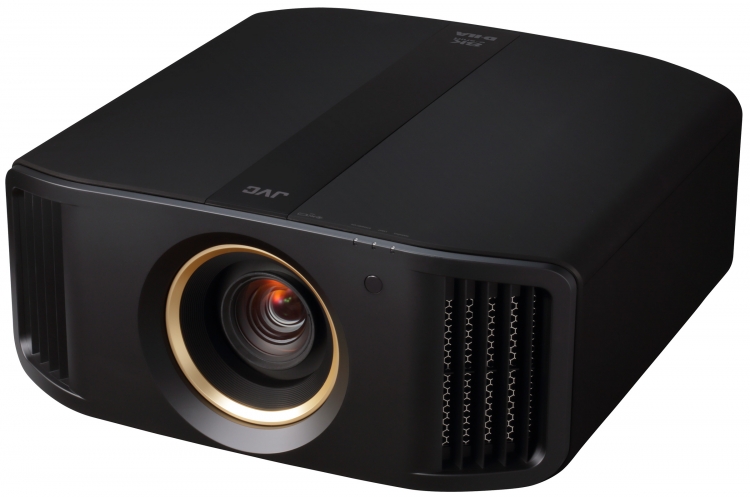

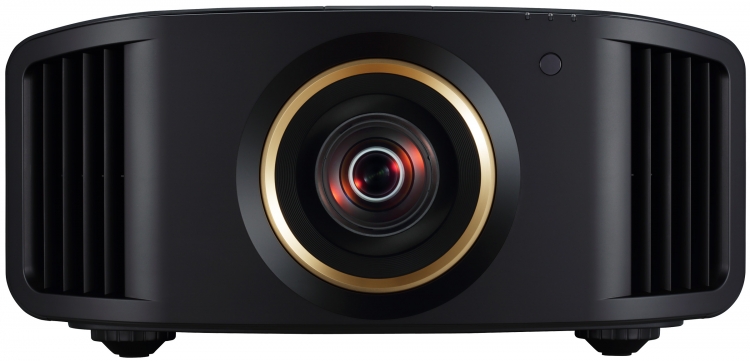

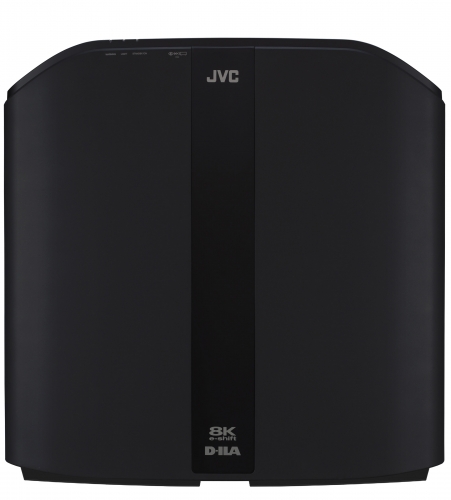

The high-end home cinema DLA-RS2100 3D Laser DILA has 2200 Ansi lumens, a contrast of 40000:1 and a UHD (4K+2K) 4096 x 2160 resolution. The manufacturer JVC specifies a service life of 20000 hours, which is over 13.7 years with a daily viewing time of 4 hours. The built-in lens shift function provides freedom when adjusting the projection. An image width of up to 454 cm is possible. However, the image should be smaller in room light. We recommend max. 303 cm. Playback of 1080P and 4K as well as 3D is also no problem for the projector, meaning that all Blu-ray formats currently available can be recognized by the projector.
|
| Display Type |
3 x 0,69" D-ILA Chip
UHD 19/10 Direct-Drive Image Light Amplification (D-ILA)
|
| Ansi-Lumen |
Projector |
2200 |
Screen |
1043 Lux (200 cm Screen width) |
| Contrast |
40000:1 full on/off |
40000:1 full on/off
|
| Black Level |
0,0550 min. Lumen |
0,026 min. Lumen |
| Lens shift |
Vert.: +/-80% Hori.: +/-43%
|
| Resolution |
UHD (4K+2K) 4096 x 2160
8.847.360 Pixel / (8K) 8192 X 4320 mit E-Shift
8K4K 8192 x 4320 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
High-End Homecinema | Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

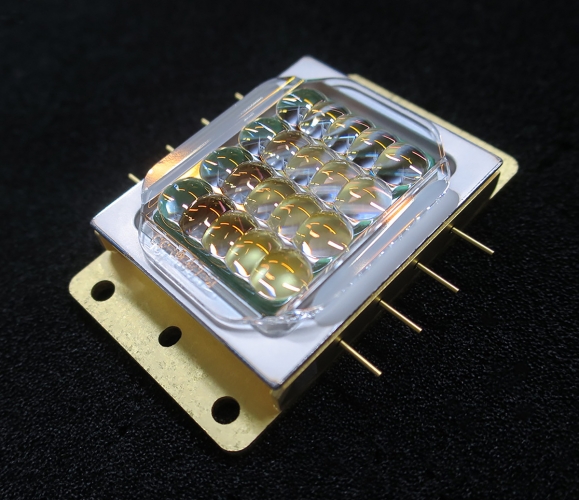

BLU-Escent Laser Diode
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
284 - 582 cm
|
 |
|
Lux: |
1043 Lux |
|
Room light max.: |
209 Lux |
|
Candela pro m²: |
332 cd/m² |
|
Foot-Lamberts: |
97 fL |
|
 |
| 80 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 2,01 |
| Objective |
- |
| Throw Ratio |
1,42-2,91:1 show |
| Audio |
Nein |

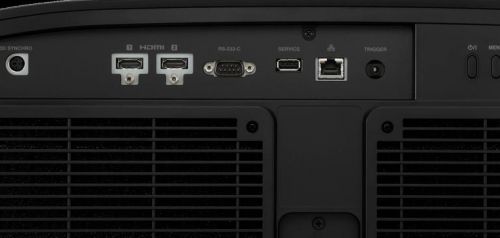

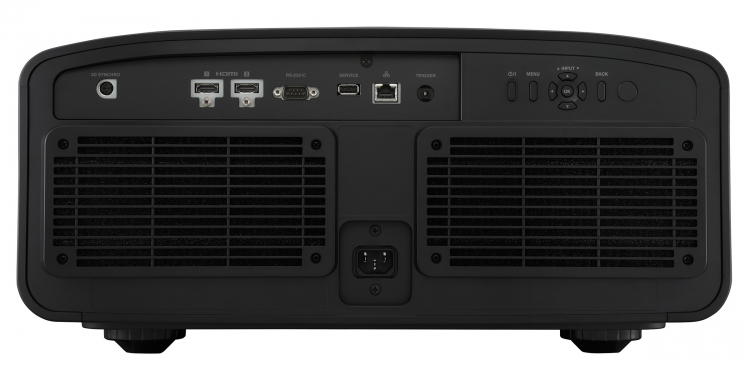

| Connections |
2 x HDMI mit HDCP 2.2 in
RS232C Din 9 pin in
12V Trigger out
USB Typ A
RJ45in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
420W |
| Size WxHxD |
500 x 234 x 505 mm (19,7"x9,2"x19,9") 59,09 L/dm³
|
| Operating Noise |
24 dB in Eco Mode |
Shift: 84 cm
|
Shift: 86 cm
|
|
Shift: 86 cm
|
| |
|
|
| Weight |
22,50 kg / 49,6 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
97 fL
/ max. 454 cm screen width |
| Candela m² |
332 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
High Dynamic Range (HDR)
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The JVC DLA-RS2100 compared to others current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
8 |
Weight: |
|
35 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
85 |
Power cons.: |
|
53 |
| Picture Total Points: | 31 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
16 |
| Ranking: |
21 (From: 43) |
|
|
|
|
|
| Status |
2021 Current model // Last update of the data: 2025-03-03
