A brief introduction to the LC XT6: The Eiki large-format LCD projector offers 16000 Ansi lumens, a contrast of 2500:1 and an XGA 1024 x 768 resolution. The integrated lens shift gives you freedom when positioning the projector. The projector can illuminate images up to 1102 cm wide thanks to its 16000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, max. 735 cm is recommended. If the image width is not sufficient, the projector offers integrated edge blending software, which allows several projectors to project a large image together. Even 1080P video signals are no problem for the projector. Even projection onto the ceiling is possible thanks to the 360° projection. It was launched in 2013 and is no longer offered by the manufacturer Eiki, but is still a popular projector in our database.
|
| Display Type |
3 x 1,8" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
16000 |
Screen |
5333 Lux (200 cm Screen width) |
| Contrast |
2500:1 full on/off |
2500:1 full on/off
|
| Black Level |
6,4000 min. Lumen |
2,136 min. Lumen |
| Lens shift |
Vert.: +/-50% Hori.: +/-10%
|
| Resolution |
XGA 1024 x 768
786.432 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |

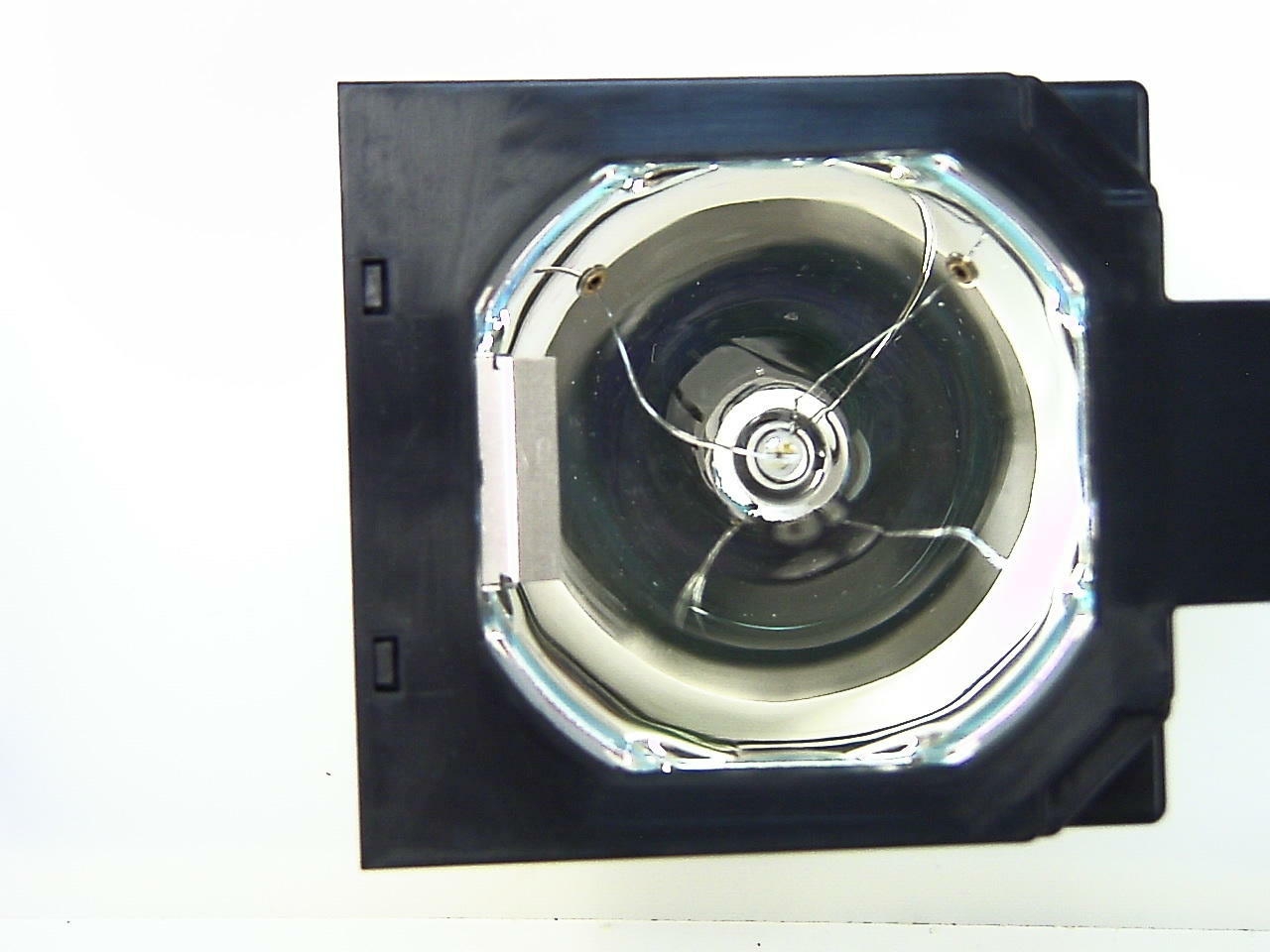

4 x 380W Lamp
Article Nr.: 610 350 9051
|
|
| Light Life |
2000 h. 3000 h. in eco Mode |
| Operating Costs |
|
|
|
 |
|
Lux: |
5333 Lux |
|
Room light max.: |
1067 Lux |
|
Candela pro m²: |
1696 cd/m² |
|
Foot-Lamberts: |
495 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
DVI-D in
HDMI in
D-sub 15 pin in
5 x BNC RGBHV in
S-Video in
RS232C Din 9 pin in
RJ45 in
USB Typ B |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1850 / 1450W in Eco Mode |
| Size WxHxD |
650 x 349 x 815 mm (25,6"x13,7"x32,1") 184,88 L/dm³
|
| Operating Noise |
51 / 48 dB in Eco Mode |
Shift: 75 cm
|
Shift: 20 cm
|
|
Shift: 20 cm
|
| |
|
|
| Weight |
46,50 kg / 102,51 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-40°
|
| Illumination |
90% |
| Frequenz |
H-sync: 15-120 kHz
V-sync: 48-120 Hz
Range max.: 230 MHz |
| Foot-Lamberts |
495 fL
/ max. 1102 cm screen width |
| Candela m² |
1696 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Lens shift Funktion
Freeze
User logo
Eco Mode
Digital image shift
Warping
360° installable
24/7 continuous operation capable
Edge Blending
PJLink™
Control via web browser
Lan network compatible.
Picture-in-picture
Picture-and-picture
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Eiki LC XT6 compared to others not current "Event" projectors. |
| Ansi-Lumen: |
|
12 |
Weight: |
|
83 |
| Contrast: |
|
1 |
dB: |
|
45 |
| Black level: |
|
89 |
Power cons.: |
|
80 |
| Picture Total Points: | 34 |
Projector Total Points: | 69 |
|
| Popularity Top 100 |
|
| Points: |
|
52 |
| Ranking: |
53 (From: 576) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| T03 | 6.08-8.82:1 | 1216-1764 m |
+/-38% |
+/-10% |
Powered |
| T02 | 4.29-6:1 | 858-1200 m |
+/-38% |
+/-10% |
Powered |
| M01E | 3.38-4.39:1 | 676-878 m |
+/-38% |
+/-10% |
Powered |
| S03 | 2.63-3.56:1 | 526-712 m |
+/-38% |
+/-10% |
Powered |
| S02Z | 2.05-2.65:1 | 410-530 m |
+/-50% |
+/-10% |
Powered |
| W04 | 1.55-2.03:1 | 310-406 m |
+/-38% |
+/-10% |
Powered |
| W02 | 1.42-1.84:1 | 284-368 m |
+/-38% |
+/-10% |
Powered |
| W06 | 1.22-1.55:1 | 244-310 m |
+/-38% |
+/-10% |
Powered |
| W03 | 0.81:1 | 162 m |
0.0% Fix |
+/-10% |
No Zoom |
| T01Z | 6.89:1 | 1378 m |
+/-38% |
+/-10% |
No Zoom |
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2013-01-22 14:29:49
|
| Data |
 Product Sheet english
Product Sheet english
Product Sheet english HC
User Manual english (7.69 MB)
User Manual english lens (0.01 MB)
User Manual english Netzwerk (2.84 MB)

|
